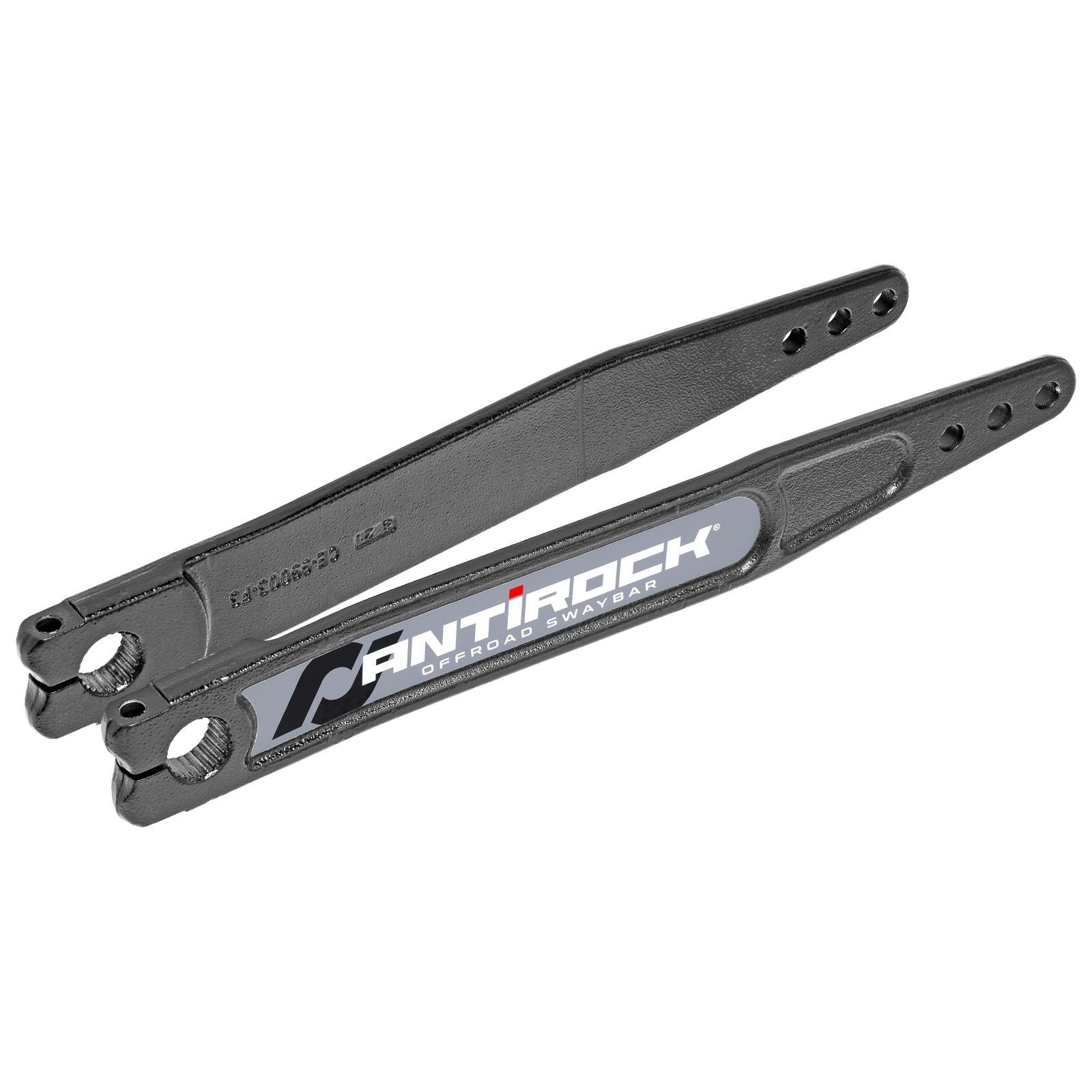

RockJock 4x4 Antirock Forged Chromoly Sway Bar Arms 18 Inch Long x 25 Spline .69 Inch Offset Bend Incl. Stickers Pair - RJ-282200-101
For those looking for maximum strength and cool factor for their off-road or rock crawling rig, RockJock's Forged 4140 Chromoly Antirock Sway Bar Arms have got you covered! Available in various lengths and shapes to suite different builds and applications, the forged I-beam construction provides dramatic strength and rigidity.

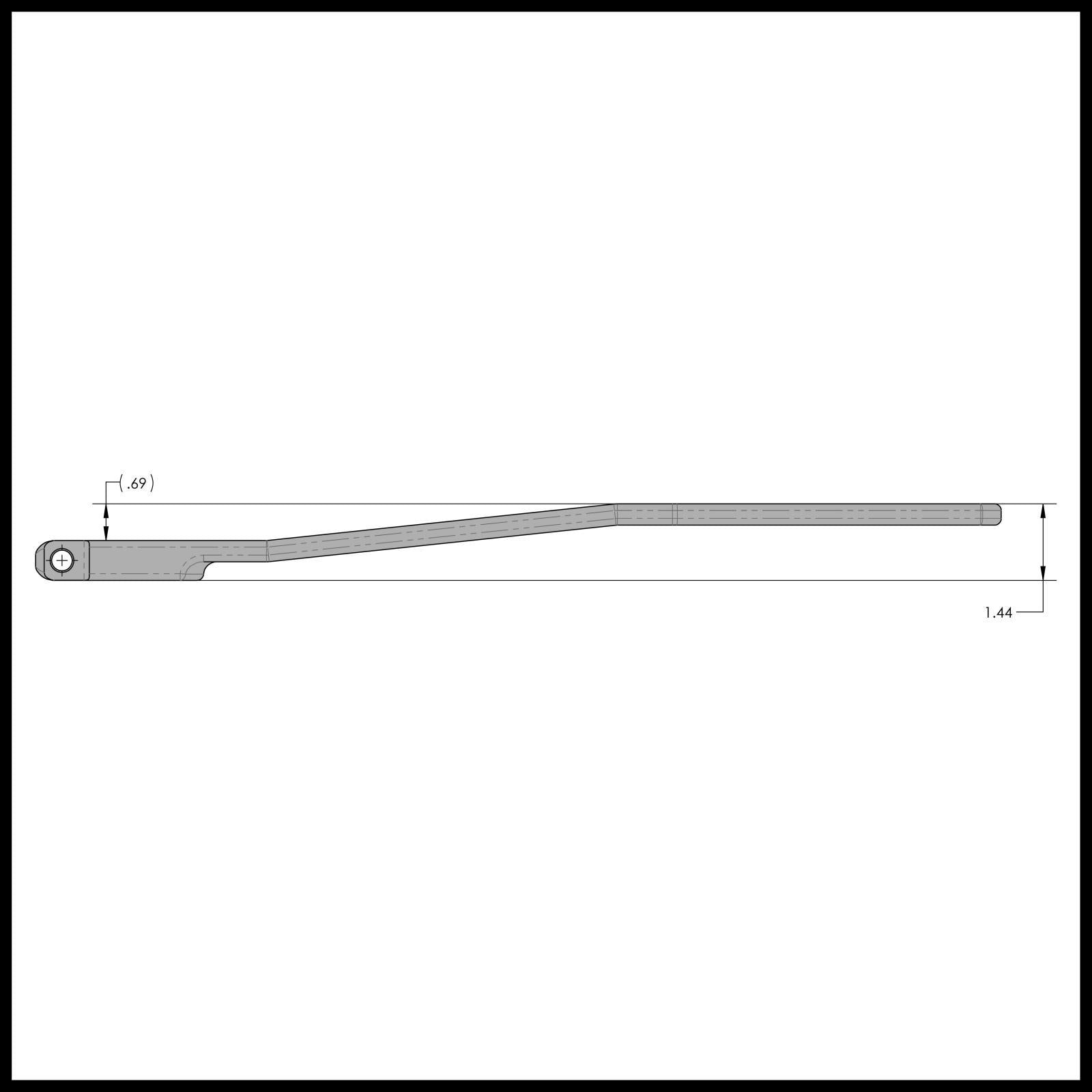

These specific arms are 18 in. long from tip to tip, 3/4 in. thick at the splines and 3/8 in. thick the balance of the length of the arm to provide extra clearance in tight spots and feature a .69 in. offset bend to provide clearance in applications where it's needed. At the mounting end, you'll find our standard 25 spline that fits all common Antirock torsion bars as well as the vertical pinch bolt hole for attaching the arm to the bar. At the opposite end, you'll find three 1/2 in. Sway Bar End Link mounting holes that allow you to adjust end link mounting position to increase or decrease leverage on the torsion bar.
Arms are sold as a pair only, are finished in a textured gloss black powder coat and include stickers.
Arms Fit:
- Universal Application (in 25 spline torsion bar applications)
- (Included in) RJ-286200-101 Bronco rear Antirock Kit
Kit Includes:
- (1) Pair of 18 in. long Forged Antirock Sway Bar Arms
- (1) Pair of Arm Stickers
Component Specs:
- Overall length=18 in.
- Thickness=3/4 in. at the splines, 3/8 in. the balance of the length of the arm
- Offset=.69 in.
- Material=4140 chromoly, forged
- Spline count=25
- Center of splined hole to center of nearest 1/2 in. hole=14.195 in.
- Center of splined hole to center of middle 1/2 in. hole=15.195 in.
- Center of splined hole to center of farthest 1/2 in. hole=16.195 in.
- Weight=7 lbs. (for the pair)
Notes:
- These arms are found in our RJ-286200-101 Bronco rear Antirock Sway Bar Kit
- Arms may be used in conjunction with our RJ-201000-101 Double Sheer End Link Bracket Kit. This bracket kit adds 1 1/2 in. in arm length and the ability to offset the end link up to 1 1/4 in.
- See CE-99005A for sway bar arm hardware kit.
