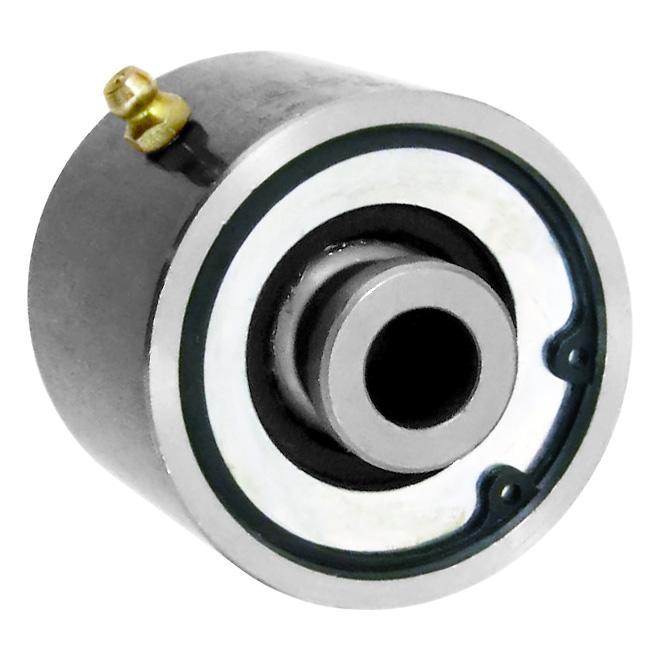

RockJock 4x4 Johnny Joint Rod End 2 1/2 Inch Weld-On 74mm x 16mm Ball Externally Greased 2021-Present Ford Bronco Rear Frame - RJ-330001-101
RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.
The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 inch wall machined DOM tubing that is fitted with a zerk fitting for greasing.
This specific joint's 74mm mounting width ball with a 16mm thru bolt hole is designed to fit the frame side of the 2021 and up Bronco's rear control arms.
