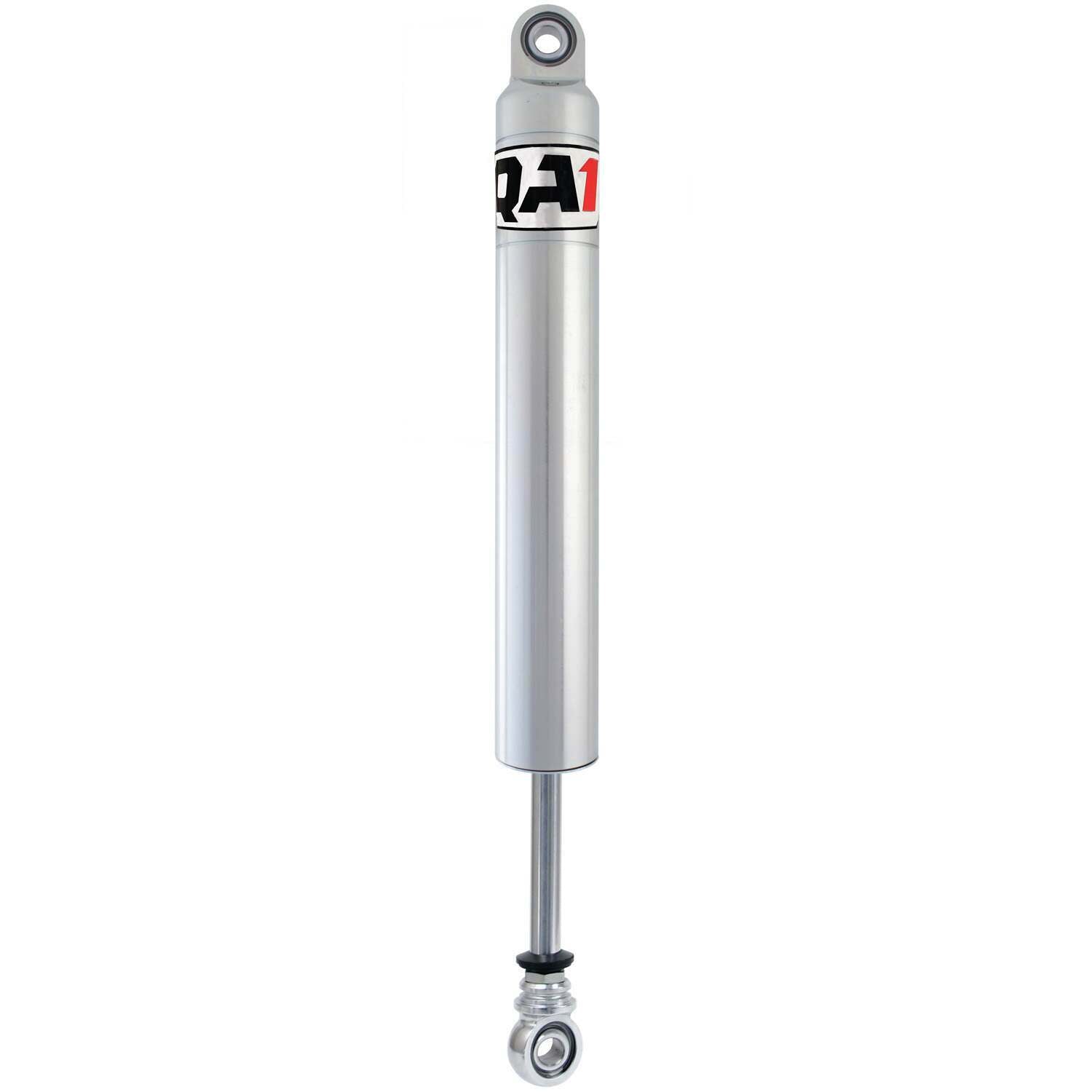

QA1 Shock, Monotube, Large Steel 13.10 -20.57 Eye-B/Eye-B V5-5 - 2675
The 26 Series shock is a one piece monotube shock that is well suited for a variety of track conditions or as a traction shock in various applications. Constructed with a zinc plated body for corrosion resistance, this shock is a popular choice for modifieds, late models, super stocks and various other classes. Works best on rough tracks and as an easy-up shock on many dirt cars, and on bumpy asphalt tracks in all banking types. Made with a 2'' O.D. zinc plated steel monotube body and available with hyperscrew, sealed Hyperscrew (IMCA Legal) or Schrader valve configurations, the 26 Series shocks use deflective disc valving with either linear, digressive or linear/digressive valving. The hyperscrew equipped shocks have a threaded round port near the bearing end of the shock body. This hole is then sealed with a small screw that has an O-ring built into it, sealing the nitrogen gas pressure inside the shock. The gas pressure of the sealed hyperscrew configurations is only adjustable by QA1 and QA1 Authorized Rebuilders per sanctioning body, like IMCA, and track rules. With a Schrader valve you can easily adjust your gas pressure. Much like adding air to your car tires, the Schrader valve allows you to make ''on the fly'' gas pressure adjustments between heat races and features to adjust for varying track conditions. The 46 MM piston allows for maximum car control at all shaft velocities. They are racer rebuildable and revalveable for unparalleled repeatability. Made in the USA and 100% dyno tested and serialized.
26 Series monotube shock with hyperscrew. Compressed height of 13.4", extended height of 20.63". Eyelet top and eyelet bottom, with a valving of 5-5.
QA1 specializes in providing performance shocks, suspension components, carbon fiber driveshafts, rod ends, ball joints and more to a variety of automotive markets, including circle track racing, drag racing, street performance, and street rodding. With over 83,000 square feet of manufacturing space in Lakeville, MN, QA1 is proud to offer an extensive line of American-made suspension and driveline. Founded in 1993 by Jim Jordan, QA1 introduced rod ends and spherical bearings specifically for the performance racing industry, quickly becoming the #1 name in rod ends, spherical bearings, custom linkages and similar products to the motorsports industry. Always on the cutting edge of technology, QA1 recently introduced in-house filament winding of carbon fiber and similar materials to provide driveshafts and other products. With continued focus on fine-tuning and expanding its offering of American-made high performance suspension components and carbon fiber driveshafts, QA1 has grown to be a household name in the performance aftermarket.
