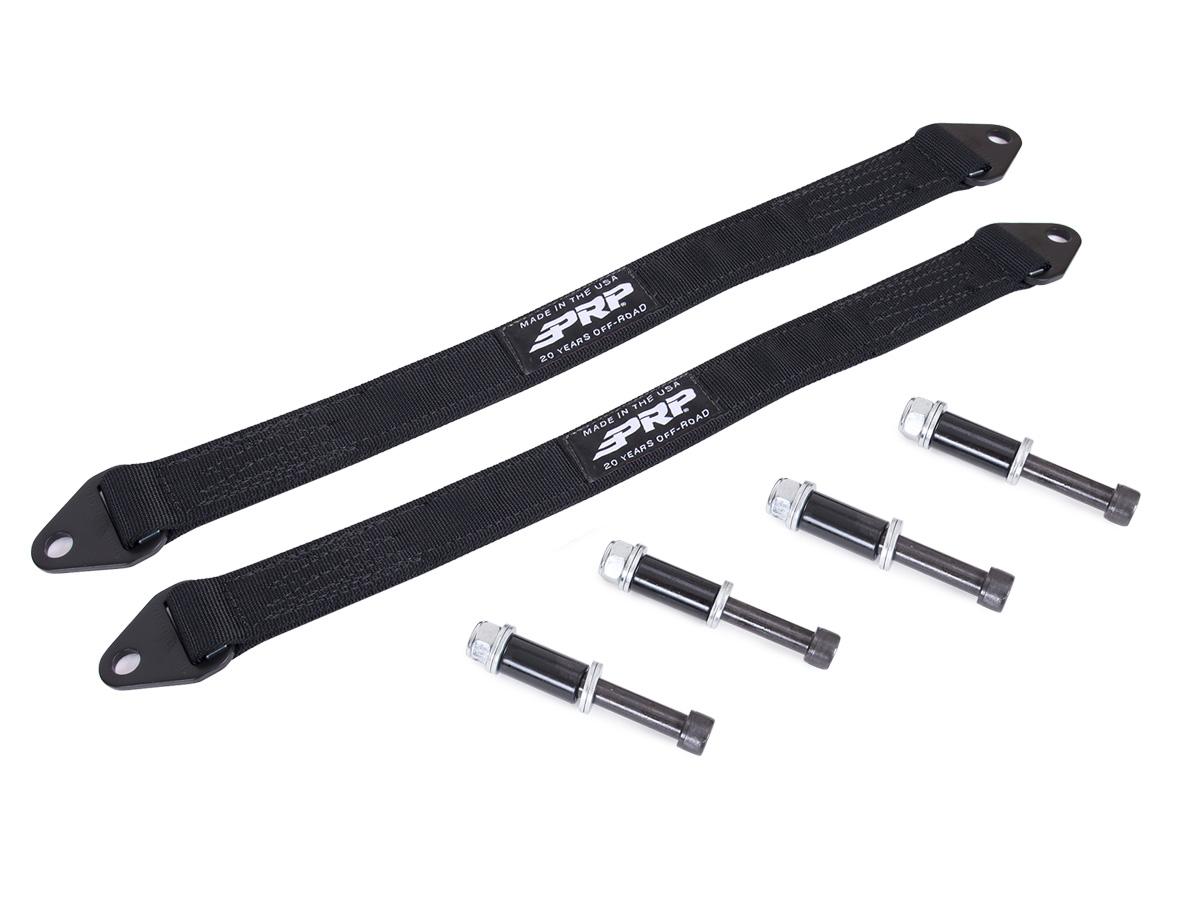

PRP Seats Front Limit Strap Kit for Polaris RZR XP 1000 Turbo RS1 - ODL-217401
PRP has put together suspension limit strap kits for the Polaris RZR XP 1000, XP Turbo, or RS1 (Front only). These kits are easy to bolt-on for stock length shocks, which simply mount on to the shock bolts. No modifications or welding required.
The kit provides you with hardened bolts that are longer than OEM, along with new washers and powder coated spacers for the limit straps.
The limit straps are PRP quad layer limit straps, which have been proven over the years with Trophy Trucks and Class 1 buggies.
- Layered For Strength: 4 Layered webbing rated for 10,000lbs
- Heat Treated Steel Tabs: Improved wear resistance, increased strength, and relief of internal stress
- Hardware: Four longer shock bolts and bolt washers
Benefits
- Protect Your Investment: Prevent unecessary load on your suspension by limiting the possibility of over
- Ride On The Trails Longer: Reduce possiblity of your drivetrain from topping out and spoiling the trip
- Driver Harder, Faster, Safer: Drive with confidence while pushing the limits of your vehicle
Limiting Strap Information
Limiting straps are vital in custom suspension setups that help prevent damage to suspension and drivetrain components. Without limiting straps, your shocks are the stops at maximum droop.
The shock from your vehicle's un-sprung weight can cause damage to shocks such as when jumping or at high speed over rough sections.
Limiting straps can also prevent damage to your CV joints by limiting the amount of maximum angle on your axles. All CV joints have a maximum amount of degree deflection that they can safely be run at with custom suspension setups.
With many suspension setups, the deflection angle can go farther than the CV joint can handle resulting in damage, shorter run life, and CV failure.
Includes
- 4 longer shock bolts (M10 X 1.50 X 100MM for front, M12 X 1.75 X 110 MM for rear)
- 4 shock bolt washers (M10 Flat for front, M12 Flat for rear)
- 4 shock bolt spacers powder coated black (1.5 inch for front, 1.5 inch for rear)
- 4 shock bolt nuts (M10 X 1.50 for front, M12 X 1.75 for rear)
- 2 PRP quad layered limit straps (23 inch for front, 33 inch for rear)
Mounts On
- Polaris RZR RS1
- Polaris RZR XP 1000 – All Years
- Polaris RZR XP4 1000 – All Years
- Polaris RZR XP Turbo (Front Only) – All Years
- Polaris RZR XP4 Turbo (Front Only) – All Years
About Limit Straps
Limit straps are vital in custom suspension setups helping to prevent damage to suspension and drivetrain components. Without limit straps the force of your vehicle's unsprung weight can cause damage to shocks when jumping or at high speeds over rough sections.
Limit straps can also prevent damage to your CV joints. All CV joints have a maximum amount of degree of deflection at which they can safely be run.
With custom suspension setups. the deflection angle can go farther than the CV joint can handle, resulting in damage, shorter run life, and CV failure.
Limit straps can prevent this by reducing the amount of maximum angle on your axles.
