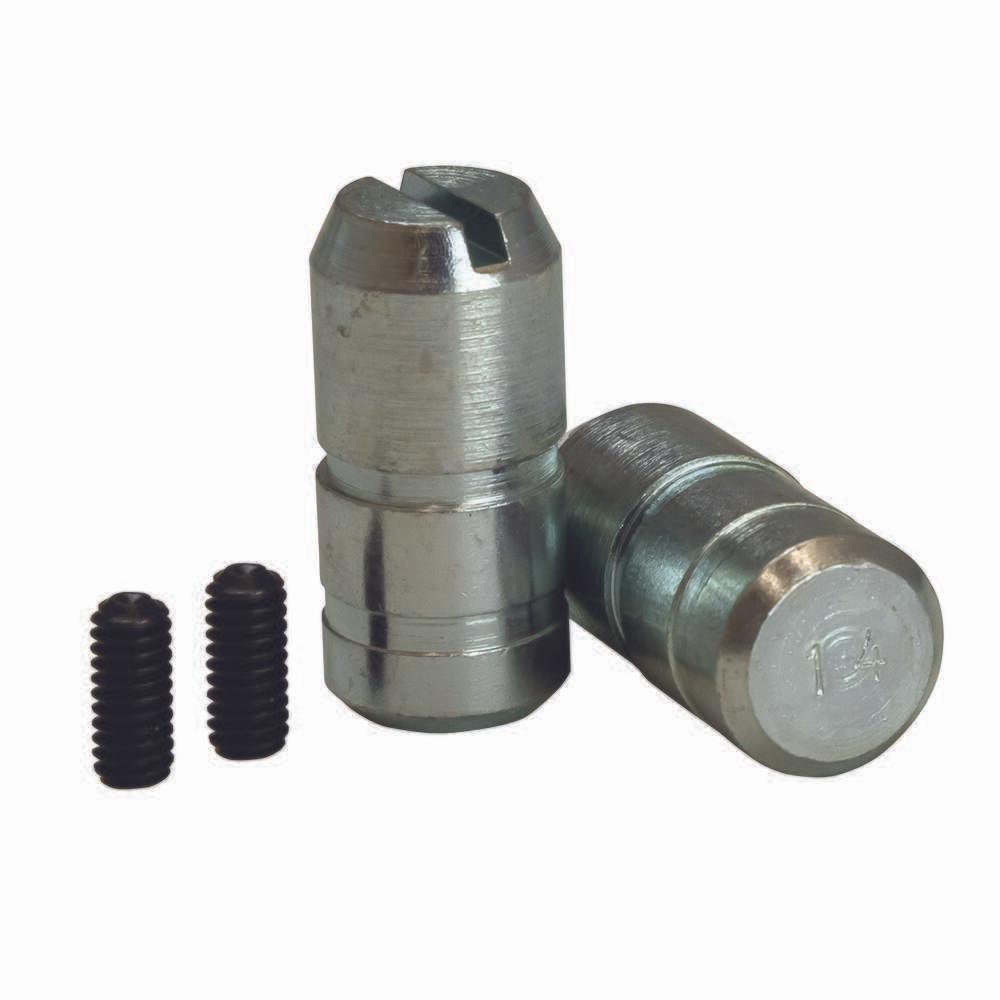

Moroso Dowel Pin, Bellhousing .014 In - 37936
Extra Long Bellhousing Dowel Pins
GM V8/V6 Blocks
Drilling/Tapping Block Req.
Incl. Set Screws/Instructions
0.014 Offset
L-1.328 in.;
• Provides an easy method of properly aligning the transmission input shaft to the crankshaft pilot bearing
• Extra long to simplify the task of installing a bellhousing on the engine block
• Offset Dowel Pins include set screws and instructions for locking pins into place drilling and tapping of block required
• Getting alignment concentric to within ± .005" insures a clean clutch release, maximum pilot bearing and transmission life and reduced shifting problems
• .625" diameter
• Two per package
• Fits virtually all GM V8 and V6 blocks
