Moroso Frame Kit, Ladder Link, 26 Inch, Coil Over Shock, 150 lb Spring Rate, Made to Order - C2614
Ladder Link Frame Kit, 26" Width, 12-Way Adj. Coil-Over Shock, 150 lb Spring Rate. Click for Disclaimer
“ At this time we are not selling this item directly off our website. If you would like to purchase one, please visit our DEALER FINDER (attach link here)” ), if the item is not available through a dealer please contact our Customer Service Department for further assistance”.

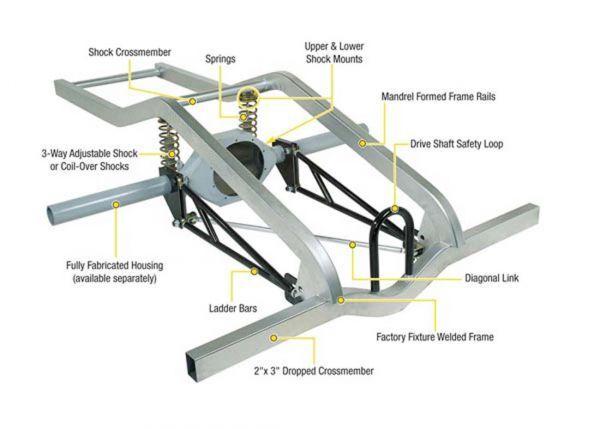

Frame Kit comes with the following items;
• Ladder Bar Frame Rails - Specially engineered profile clears suspension and axle components, while accommodating low ride height and wide tires
• 2" x 3" Crossmember - Mandrel formed for uniform provide; 3.5" drop center makes it adaptable to virtually any chassis design; 60" wide
• Diagonal Link - 3/4" O.D. DOM steel with 1/2" Spherical Rod Ends for easy, in-chassis adjustment
• Driveshaft Loop - 1-1/8" O.D. mandrel formed Round Tube contains driveshaft during U-joint failure
• Shock Crossmember - Tubular design provides high strength with light weight
• Upper & Lower Shock Mounts - Provides 6" of ride height adjustment
• Magnum Series Double Adjustable Ladder Bars, Part No. C2008 - Provide a solid connection between the rear axle housing and chassis, preventing wheel hop
• 12-Way Adjustable Coil-Over Shocks, Part No. C2770 - Externally adjustable with CNC machined billet aluminum threaded body that allows the included spring seats to be threaded up or down for preload and ride height, shocks also have 1" wide top/bottom bearings
• Springs - Matched to your specific rear vehicle weight. 2.5" I.D. x 12" long, premium-grade chrome silicone steel, powder coated for durability
