Mishimoto Baffled Oil Catch Can, Fits Bmw F8X M3/M4 2015-2020, Sakhir Orange Metallic - MMBCC-F80-15CSO

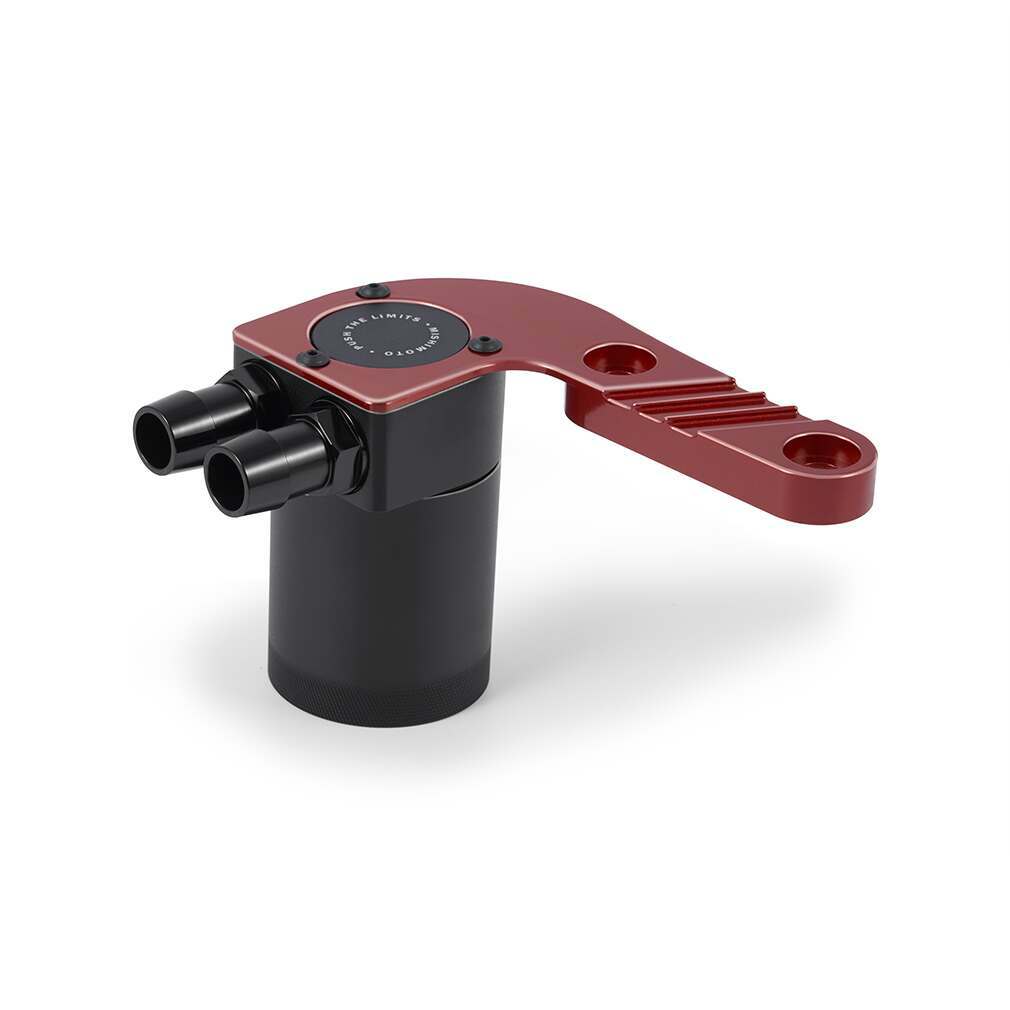

Direct fit for the 2015-2020 F8X BMW M3, M4, and M2 Competition; CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can; Catch can has a 3 oz. capacity for longer servicing intervals; Internal air diverter increases air turbulence to improve oil separation; Helps maintain proper octane levels to reduce potential detonation; Filter and can are fully serviceable; Mishimoto Lifetime Warranty; Single can mounts in line with the CCV system to separate oil from air using a 50-micron bronze filter; Helps reduce carbon buildup on intake valves; Patent pending billet 6061 aluminum can sealed with Viton™ O-rings; Installs in under 30 minutes; Robust CNC-machined anodized aluminum bracket mounts the can in a serviceable location; Anodized aluminum bracket available in your choice of 12 BMW specific color-matching options or classic black; Includes pre-molded hoses for simplified installation; Defends Vanos system and essential engine components from oil blow-by

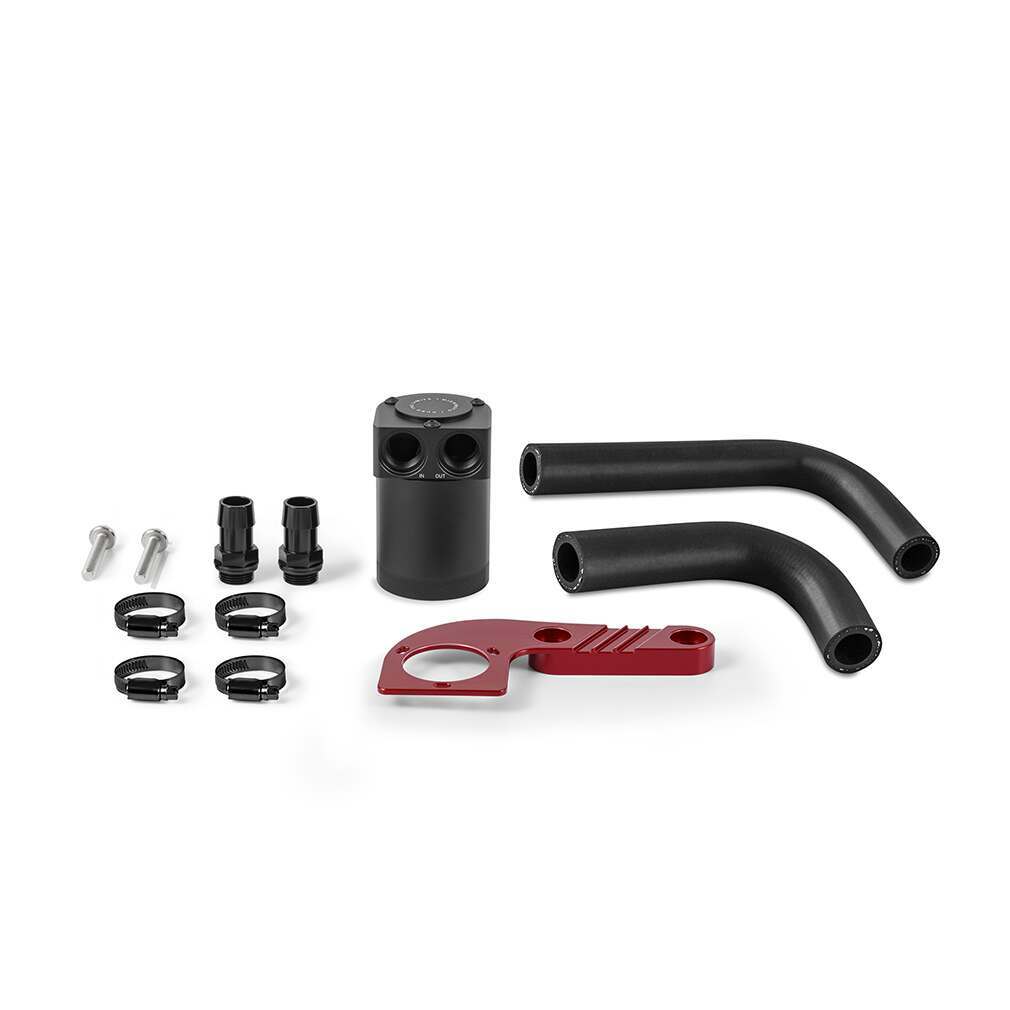

Give your 2015-2020 BMW M3/M4 the protection it deserves with the Mishimoto Baffled Oil Catch Can Kit. The introduction of the S55 into the M3 and M4 in 2015 was the first time compact M’s saw turbos from the factory, but these engines brought along another long-standing tradition-blow-by. The Mishimoto BMW M3/M4 catch can kit uses proven engineering from the patent pending Mishimoto 2-Port Compact Baffled Oil Catch Can, with its 50-micron bronze filter and internal baffle, to better separate the oil from the crankcase vapors. The engineers at Mishimoto designed a CNC-machined lid that features large inlet and outlet ports to match the inner dimension of the CCV hose. This baffled oil catch can defends your intercooler, intake system, and VANOS system from oil blow-by and helps maintain proper octane levels to reduce potential detonation. The kit comes with two direct-fit hoses, which require no modification to the engine cover, and one direct-fit billet aluminum mounting bracket that is extremely easy to install and mounts the can in a serviceable location! Available with a color-matched bracket. Choose from 12 BMW specific color-matched options or classic black. Two aluminum, 3/4" barb fittings connect the hoses to the can. And, like every Mishimoto oil catch can, this baffled catch can kit comes with the Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.
Established in 2003, our company has more than 10 years of experience in working toward our goal of providing superior cooling system upgrades for daily drivers, track cars, trucks, and bikes. Mishimoto was created for automotive enthusiasts by automotive enthusiasts. We are a cohesive team that works hard to consistently provide the highest-quality products and service!
Application - 2015-2020 M3 Base, M4 Base, M4 GTS, M4 CS, M2 Competition
