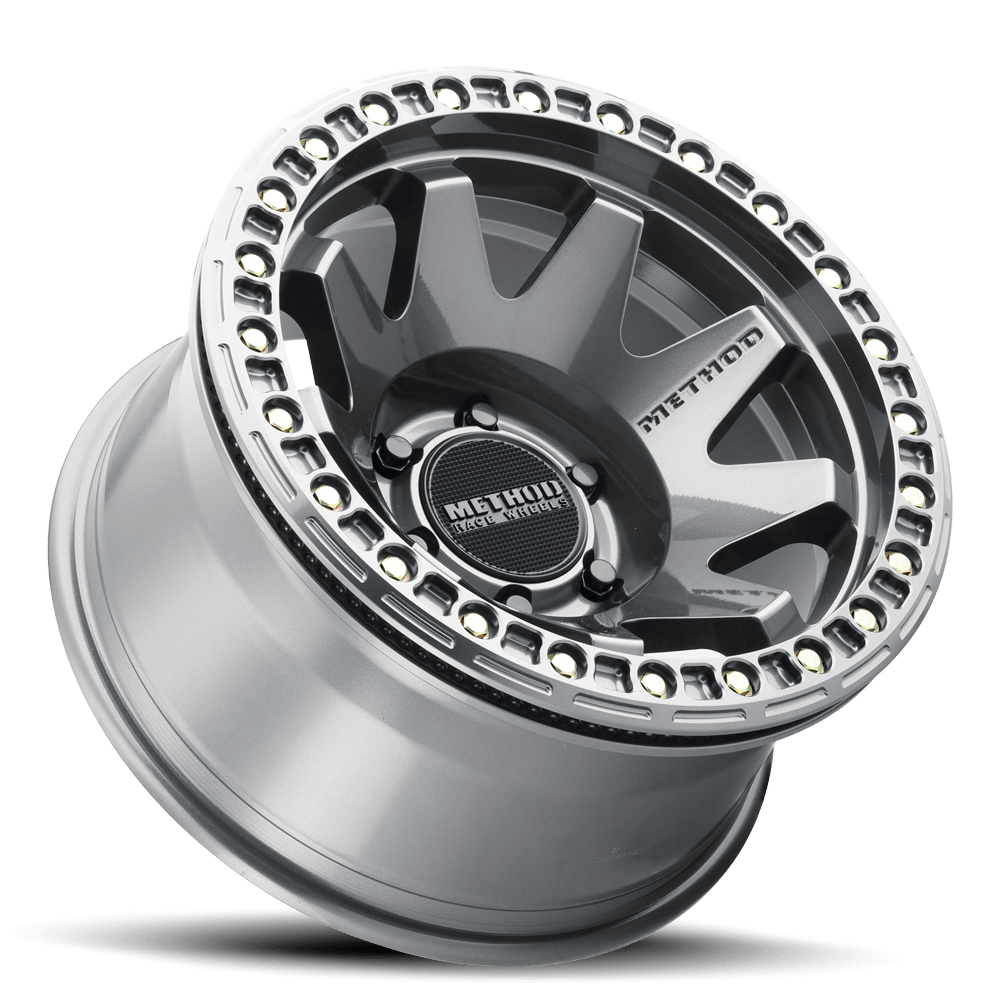

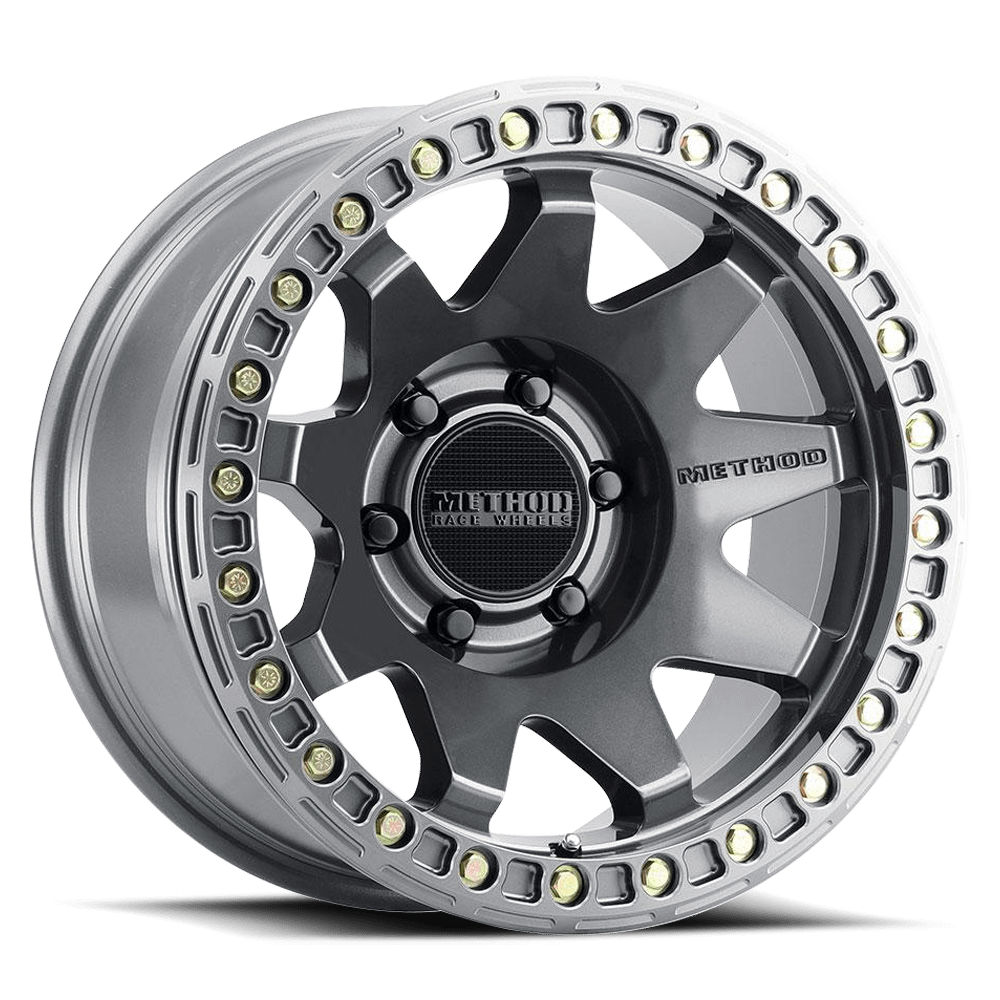

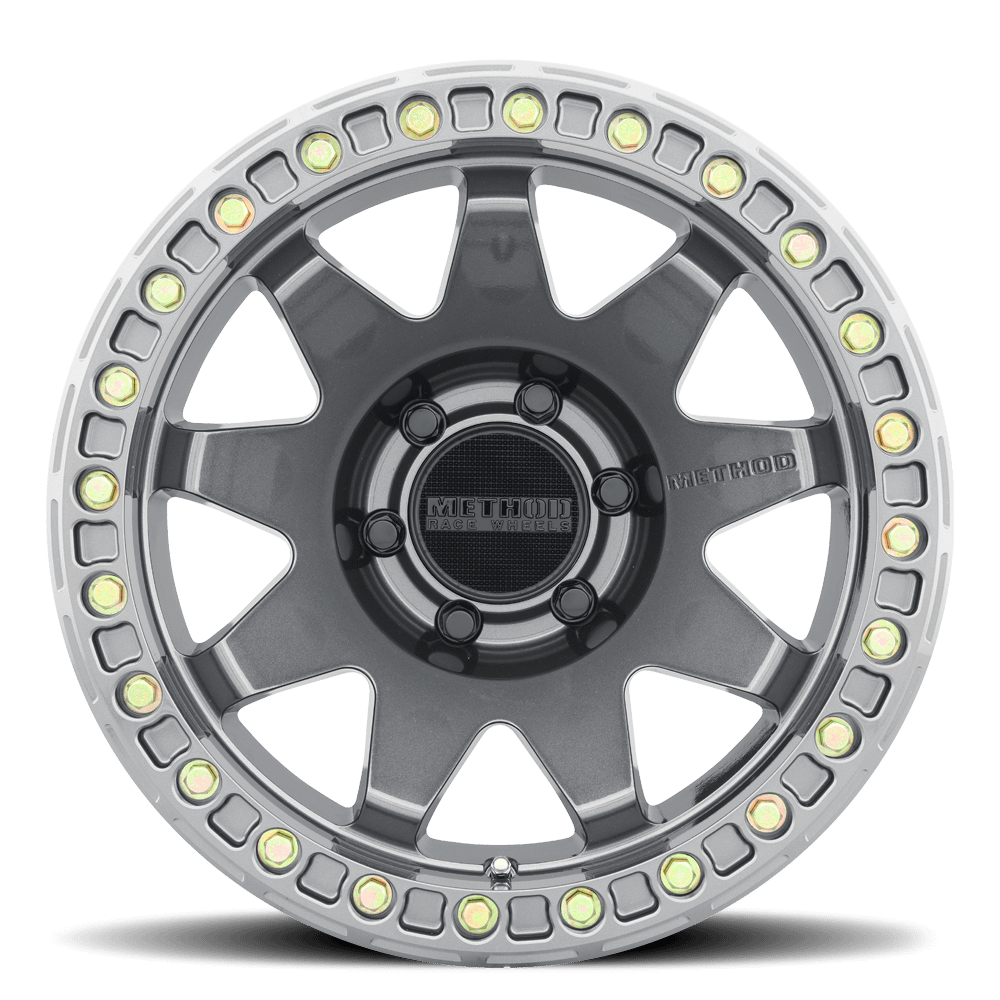

The 108 Beadlock Wheel boasts a rugged 9 spoke design with a debossed Method logo on the spoke. It’s our first wheel to feature both Beadlock and our patented Bead Grip® technology. The added bead seat on the inner lip creates an unmatched tire security. With extra material added to high-stress areas, the wheel is able to achieve a 4,000 lbs. load rating.
Solid A356 aluminum with T6 heat treatment construction
Tough 9 spoke design with debossed METHOD logo on spoke
Forged 6061 aluminum V5 beadlock ring
Patented Bead Grip® bead seats on inner lip
3/8” Grade 8 zinc-plated beadlock hardware kit included
Redundant sets of threaded beadlock hardware holes machined into wheel
Snap-on center cap with embossed METHOD logo
Push through cap with embossed METHOD logo for 8 lug applications
Hub centric fitments for common applications
Super strong 4000 lbs. load ratings
4,000lb load rating tested for use on tires up to 40" in size
Beefy design throughout for extra strength. Increased thickness on barrel and inner bead flange. Extra material added in high-stress areas to achieve 4,000lb load rating
Wheel Diameter (IN) - 17
Wheel Width - 9.0
Bolt Pattern - 6x5.5
Offset (mm) -44
Hub Bore (mm) - 106.25
Backside Spacing (in) - 3.50
Wheel Weight (LBS) - 34.9
Max Load (LBS) - 4000
