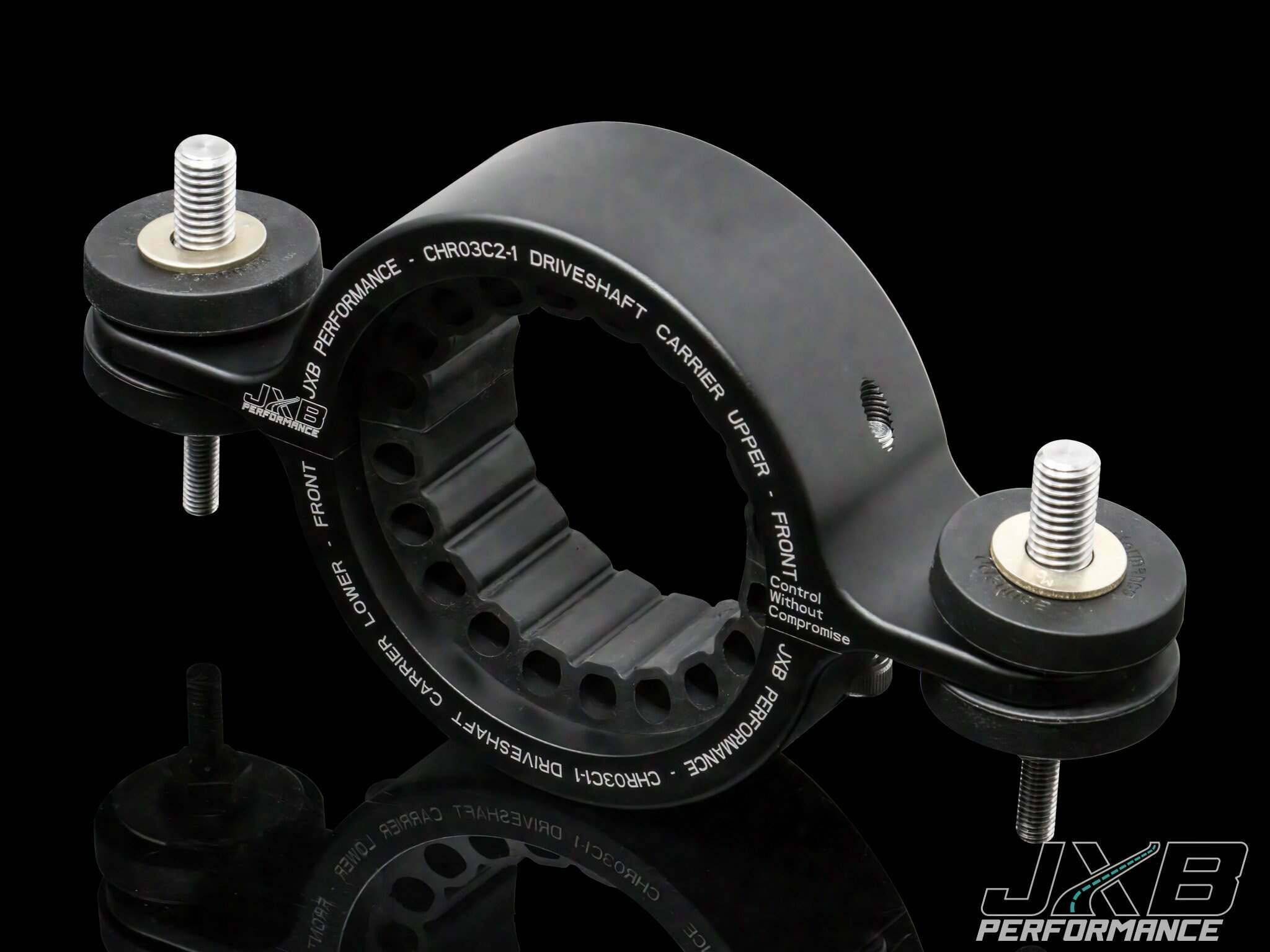

JXB Performance Driveshaft Carrier - CHR03 - WD Durango, WK2 Grand Cherokee - Both Bushings - CHR03A0-B
The stock center support bearing carrier is permanently molded to the
center bearing with thin rubber that sags and cracks over time and does not
adequately support the driveshaft under load. This rubber generally fails
long before the bearing itself has reached the end of its life. Since the
center bearing is molded to the OEM carrier and difficult to service, it’s
often easier to get a new driveshaft than replace the center support
bearing.
When the bushing wears and sags, it changes the alignment of the
driveshaft, putting more stress on the joints. During rapid loading of the
driveshaft (launches, shifts, and quick application of the throttle), the
bearing is allowed to travel off-center, introducing slack in the
driveline, which results in laggy and unpredictable driveline response.
Our upgraded driveshaft carriers keep the driveshaft firmly in place at all
times. The more solid bushings ensure the bearing cannot move from center,
maintaining torque delivery and driveshaft alignment at all times,
resulting in more direct driveline response under all conditions.
Benefits as described by our customers include:
More direct throttle response
Firmer, more direct shifts
More instantaneous launches
Reduction in vibration due to driveshaft misalignment and/or rubber
deterioration
Smoother low-speed on/off throttle behavior (1st gear in parking lots)
The first video below was recorded on an Audi, and the 2nd on a BMW, but
Chrysler (and everyone else’s) OEM carrier design is similar. The shaft is
not well-supported by the soft OEM carrier, so it’s allowed to travel
off-center during rapid loading and unloading. The second video shows a
comparison of how much an OEM carrier gives under load and the improvement
with the JXB carrier.
Installation doesn’t require removal of the driveshaft. The 2-part design
clamps around the OEM bearing. The old carrier must be removed, so a
cutting tool is required. Below is the installation of this part on an 2014
Durango.
The exact steps to access the carrier will vary slightly by model, but the
removal and installation of the new carrier are the same. The basic steps
are:
Remove any braces or splash shields preventing exhaust and heat shield
removal
Remove or lower exhaust in area of center support bearing
Remove heat shielding covering center support bearing
Cut off OEM carrier and remove rubber support material with razorblade,
leaving base layer of rubber intact on the bearing
Clamp new carrier around OEM bearing
Dodge WD Durango 3rd gen (2011+)
Jeep WK2 Grand Cherokee 4th gen (2011+)
Does not fit the Durango SRT Hellcat with the 1-pc aluminum driveshaft.
Street and Track refer to the durometer (stiffness) of the bushings. Track
are roughly twice the durometer of the street bushings. Both track and
street are many times stiffer than stock and will hold up to whatever abuse
are thrown at them, but the street bushings are better at soaking up
drivetrain noise and vibration. Usually both street and track are
completely silent and vibration-free, but in cases where there is an
underlying drivetrain issue causing the driveshaft to vibrate badly, the
track bushings may not be able to soak it all up, where the street bushings
can.
We generally recommend street bushings for any car that's not purpose-built
for track or overland use, since the street bushings have a much lower
chance of transmitting drivetrain NVH to the cabin at high speeds or under
heavy throttle loads.
If you’re not sure which to go with, the “Give me Both!” option will give
you a full set of each of the street and track bushings. You can use all
street, all track, or even mix and match them to find the perfect balance
of performance and NVH-absorption.
Street - CHR03A0-S
Track - CHR03A0-T
Both - CHR03A0-B
Street - BSH09A0
Track - BSH09A1
SHS05A0
