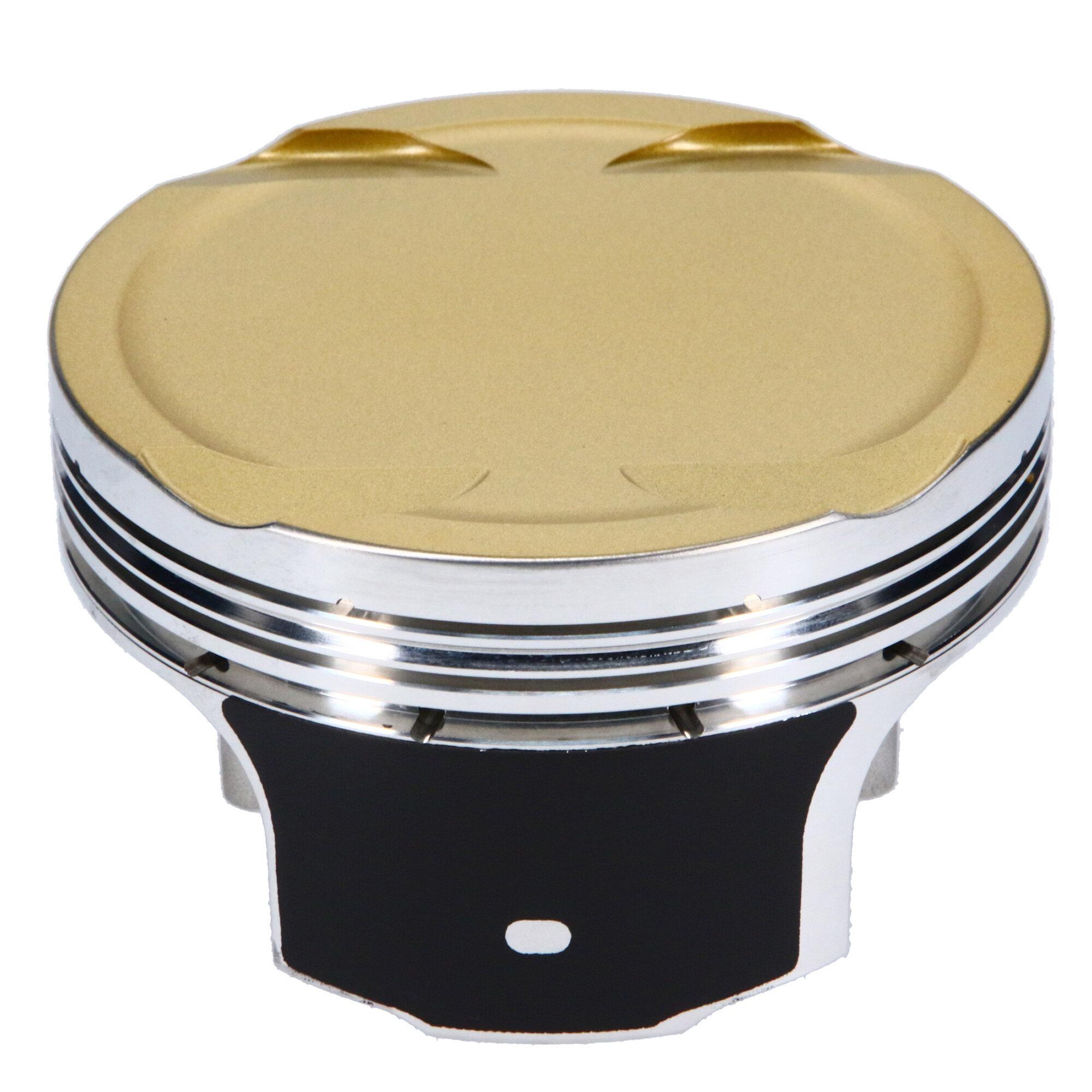

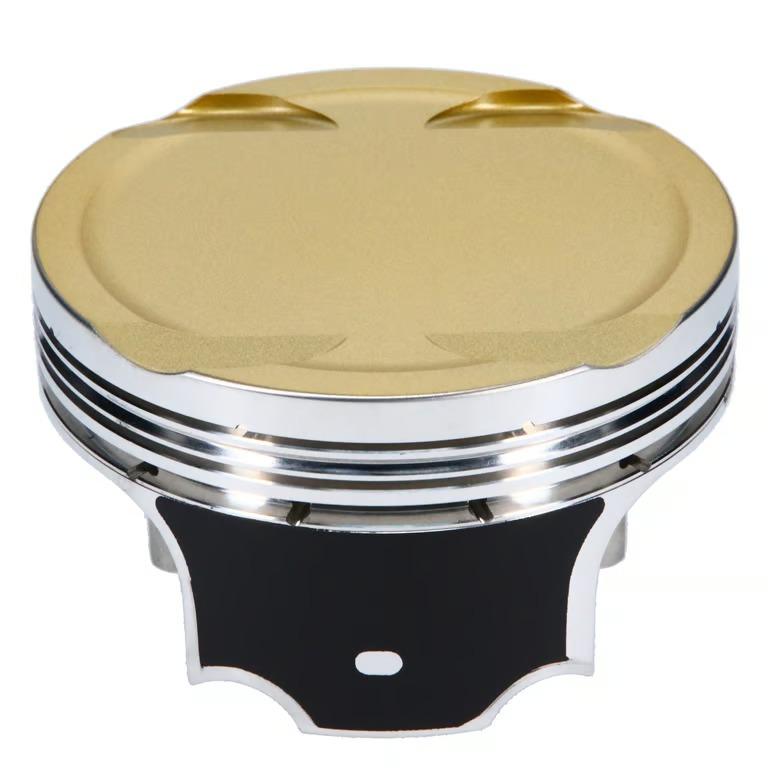

2018+ COYOTE 5.0 GEN 3 ULTRA SERIES
We have redesigned and expanded our Ford Modular product line! The new pistons utilize a dedicated Forged Side Relief (FSR) forging that was specifically designed for high horsepower Modular engines. In addition we have found ways to reduce weight and maintain the durability needed for both street and racing use. Lightweight and extremely durable, these pistons are machined for 1.0mm, 1.2mm, 2.8mm rings.
Features:
Accumulator Grooves
Offset Wrist Pin
Includes:
Pin #866-2250-15-51C (98g)
Round Wire Locks # 866-063-MW
JE Piston’s newest product line addition, UltraSeries, combines all of JE’s premium, strength-enhancing features into one, readily available, shelf-stock line. Thicker crowns and ring lands, premium Nitrided steel rings,and upgraded wrist pins are combined with revolutionary Grain Flow Optimized forging technology for an incredibly strong piston. Ultra Series delivers the best qualities of a custom piston without the wait.
2018+ COYOTE 5.0 GEN 3 ULTRA SERIES
Ultra Series Includes:
Grain Flow Optimized Forging
Lateral Gas Ports
Ceramic Crown Coating
Perfect Skirt Coating
Accumulator Groove
Double Pin Oiling
Upgraded 9310 Pins and locks
Ultra Series Applications
• Chevrolet LS and LT
• Ford Coyote Gen I-III
• Honda K Series and K20C
• Subaru EJ Series and FA20DIT
• Mitsubishi 4G63 and 4B11T
• Nissan SR20
• Toyota 2JZ
