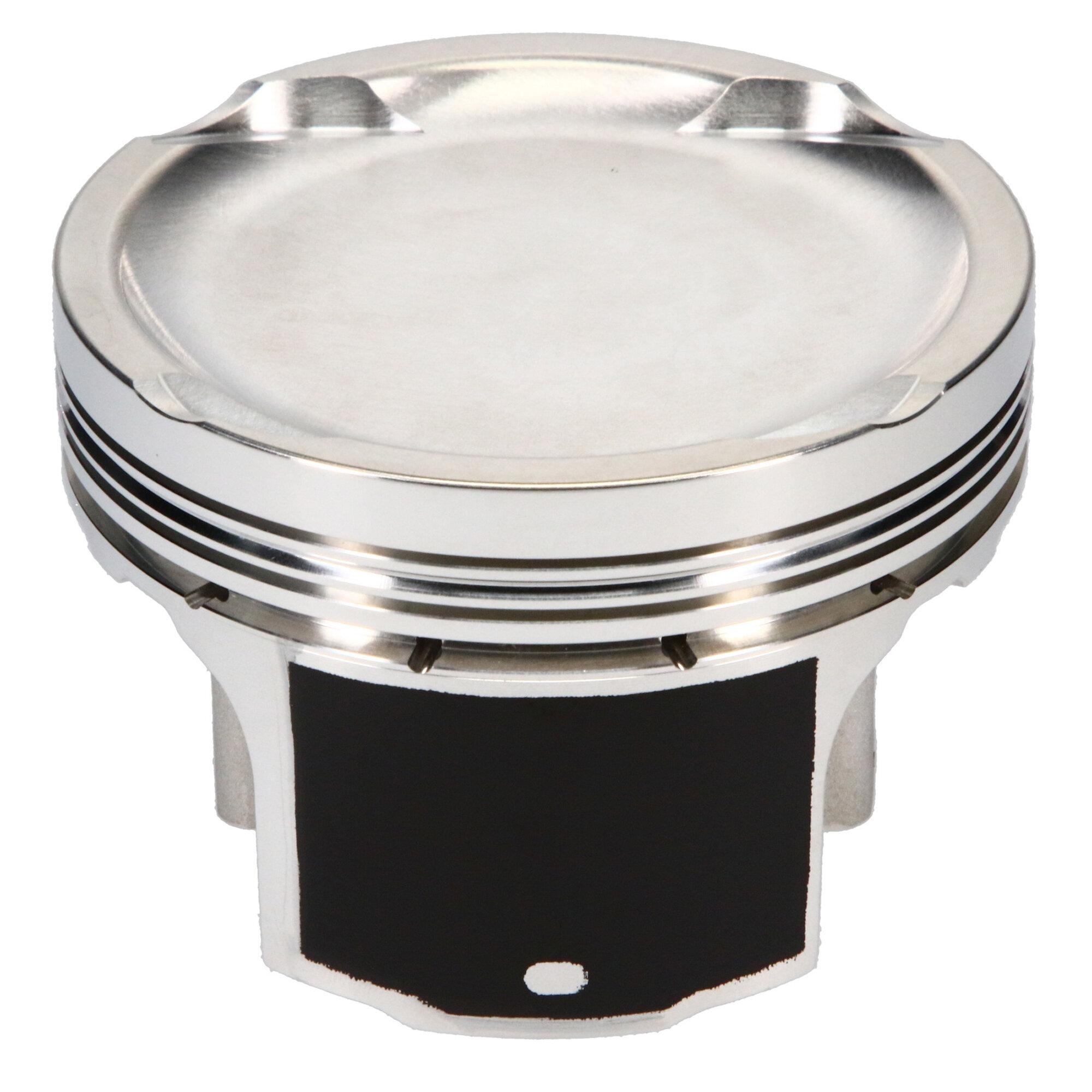

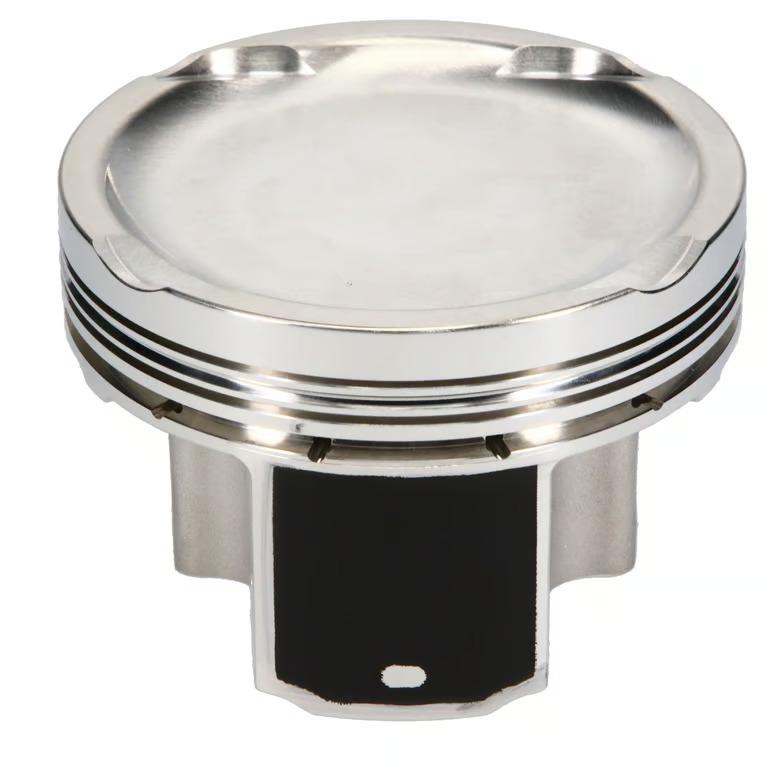

JE Pistons Piston Set, 2618, Inv Dome/Dish, 3.583 Bore, 1.604 CD, 0.945, Pin Dia, Set of 4. - 322460
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Quantity Per - Set of 4.
Bore (in) - 3.583
Bore (mm) - 91
Piston Material - 2618
Pin Part Number - 945-2250-15-51C
Pin Included(Yes/No) - Yes
Pin Diameter (mm) - 24
Pin Diameter (IN) - 0.945
Ringset Part Number - JG1001-3583
Ringset Included(Yes/No) - Yes
Retainer Lock Part Number - 945-073-MW
Lock Included(Yes/No) - Yes
Oil Rail Support Part Number (If Required) -
Oil Rail Support Included (Yes/No) - No
Left or Symmetrical Head Gasket - FD1007-039
Right Head Gasket -
Lethal Performance is proud to offer the entire line of JE Pistons products!
Since 1912, JE Pistons has continued to evolve their manufacturing processes, currently offering racing pistons either off the shelf or fully custom. JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE’s 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.
