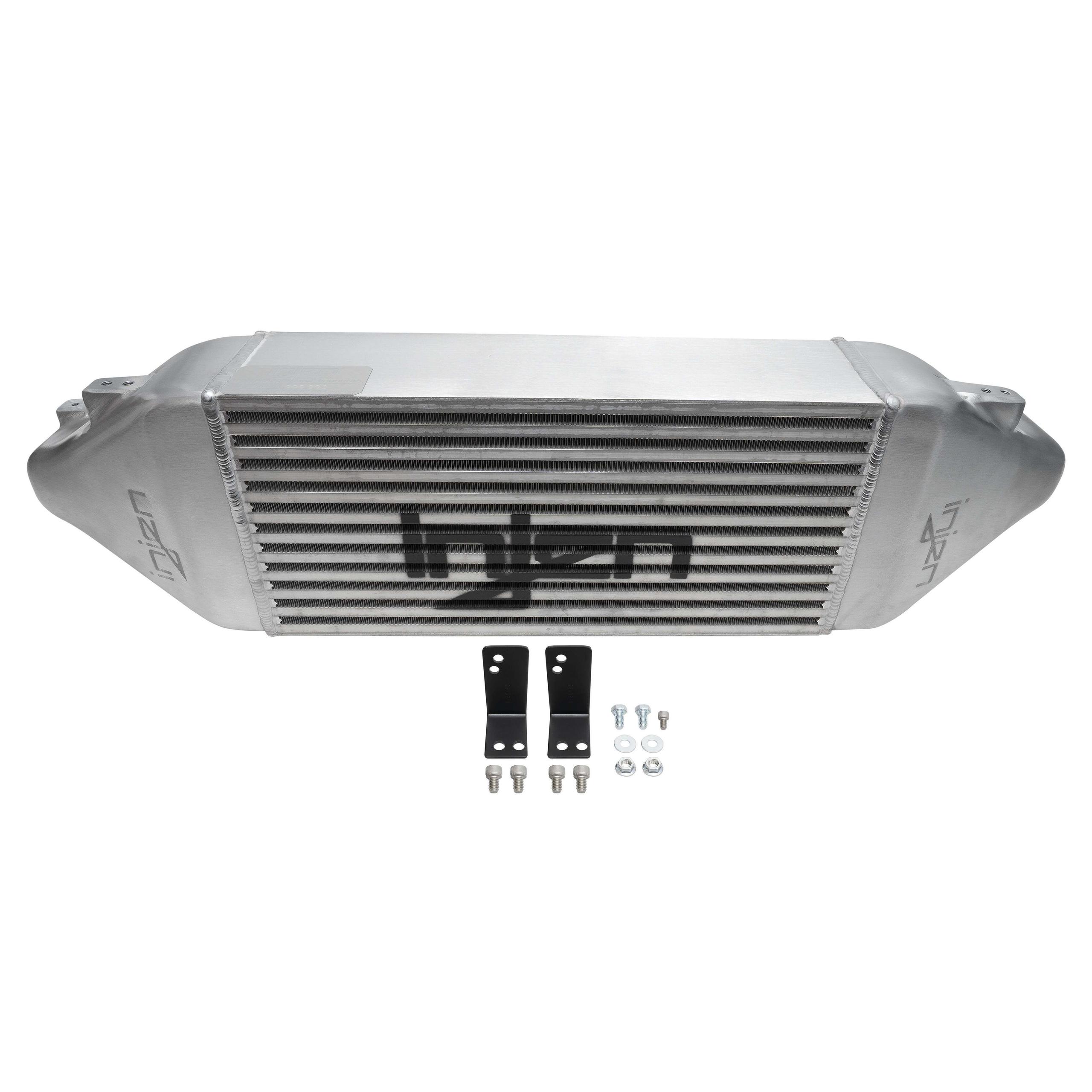

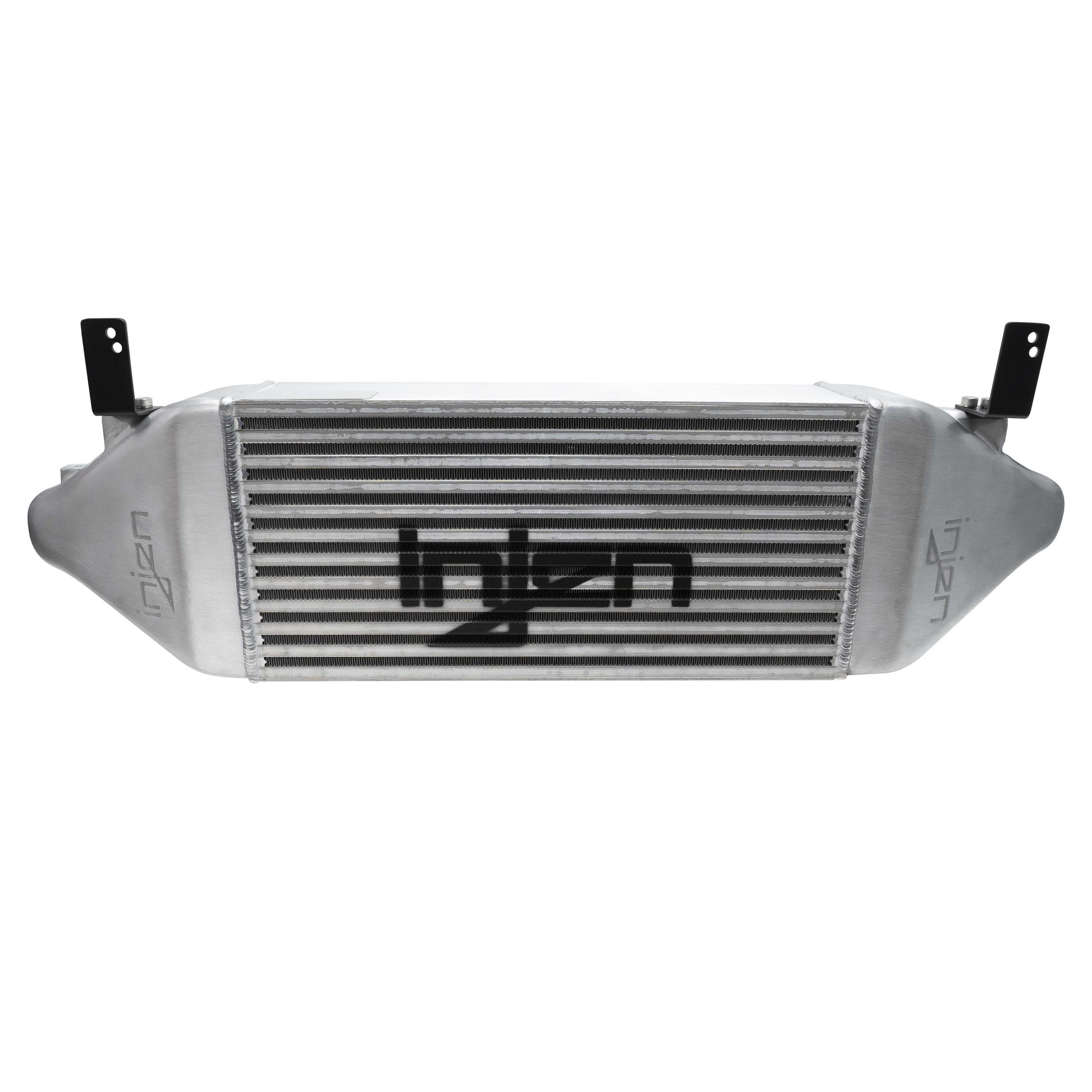

Injen Front Mount Intercooler (2016-2018 Focus RS) - FM9003i
The MK3 Ford Focus RS is a great platform for soaking up highway miles during the weekday and tearing it up at the track on the weekend! With some minor modifications, the 2.3L Turbo engine can produce some outstanding power. In stock form, the stock tube-and-fin intercooler is barely sufficient at cooling the incoming charged air. When you start adding power using a tune and/or bolt-on parts, you'll soon find that you're well beyond the limits of the stock charge air system which is notoriously prone to heat soak. Thankfully Injen Technology has developed a highly efficient bar-and-plate intercooler engineered specifically to fit the Ford Focus RS MK3 platform.
This FM9003i Front Mount Intercooler is one of the easiest ways to improve power by reducing air charge temperatures, improving flow characteristics, and ensuring minimal pressure drop. Factory calibrations begin to pull timing once charge air temps reach 100 degrees, and the ECM will continue to pull additional timing as temps continue to rise. By upgrading to this Injen Technology FM9003i intercooler, you prevent this heat soak and can keep charge air temps at or near ambient temperature. This ensures you'll have consistent and reliable power output on the street, track, and circuit.
The FM9003i intercooler is a direct-fit unit and features over a 25% percent increase in core volume and an average of 35% reduction in charge air temps for your Focus RS. This intercooler is constructed with cast end tanks and precision CNC-machined aluminum flanges for use with the factory intercooler piping. The Injen Focus RS intercooler reduces charge air intake temperatures and provides an increase of up to 14 HP and 15 Ft. Lbs. of torque while retaining factory boost pressure across the core.
This Focus RS 2.3L Turbo intercooler also features precision TIG-welding and has a unique silver finish that is reminiscent of brushed aluminum. With an average one-hour installation, great power, temperature benefits, and a Lifetime Warranty, the Injen FM9003i intercooler is a must-do upgrade for any stock or modified Focus RS.
Dyno Proven gains of up to 14 hp and 15 lb-ft. of torque
Direct bolt-on front mount intercooler
Custom Bar &
Plate Core
Precision Cast end tanks for purposeful airflow management
Direct bolt on - No cuttings or drilling required
No piping included.
Designed to work with the stock calibration
Optional Cold Air Intakes:
SP9003P (Polished)
SP9003SE (Special Edition Blue)
SP9003WR (Wrinkle Red)
SP9003WB (Wrinkle Black)
Optional Exhaust System:
SES9004
Optional Throttle Controller:
PT0013B
Made in Pomona California, USA
Injen Technology Limited Lifetime Warranty
Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
