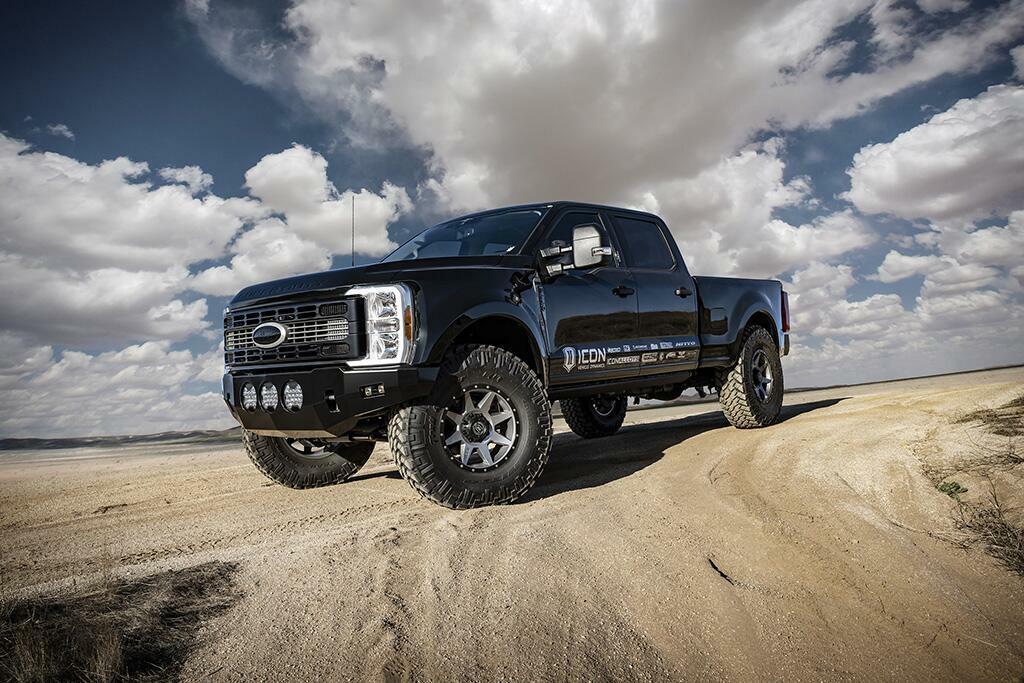

Icon 23-24 Ford F250/F350 4.5" Stage 3 Suspension System Diesel W/ Expansion Packs - K64543L
This ICON Vehicle Dynamics 4.5” suspension system is a great way to lift your 4WD 2023-2024 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 3 system is perfect for on-road and towing use, as well as off-road use like job site duty, washboard gravel roads, and general off-road adventures.

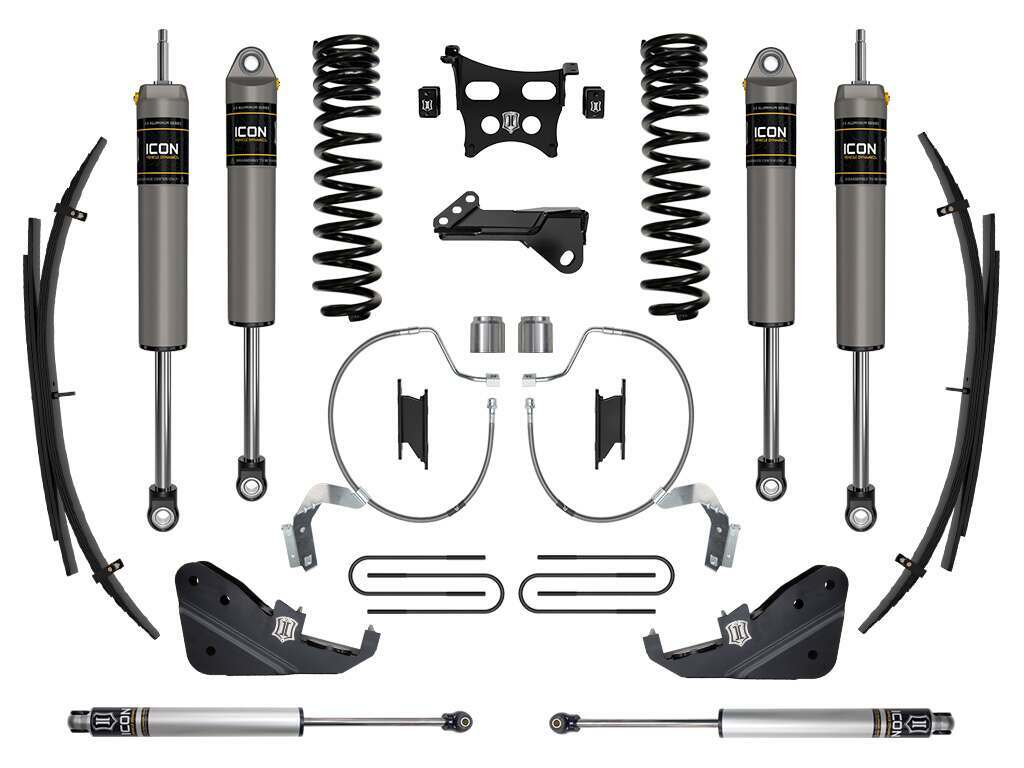

ICON's 4.5" Stage 3 System is comprised of 4.5” lift coil springs optimized for trucks equipped with diesel engines with a dual rate design that allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. ICON’s dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series internal reservoir front and rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.
This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.
Fits 2023-2024 F-250 / F-350 4WD diesel applications
2.5 Aluminum Series shocks feature corrosion resistant hard anodized shock bodies with 7/8" shafts
2.0 Aluminum Series steering stabilizers feature corrosion resistant anodized shock bodies with 5/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
ICON engineered dual rate coil springs deliver 4.5" of front lift with exceptional vehicle control over varying terrain
ICON 2.5 Aluminum Series internal reservoir shocks feature vehicle specific tune for superior performance and ride quality
Approximately 50% increased front wheel travel over stock
Radius arm drop brackets correct geometry and caster for optimal alignment specs
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Dual steering stabilizer kit offers increased steering damping
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2" of rear lift
ICON Vehicle Dynamics specializes in performance suspension components, shocks, and accessories for today’s most popular trucks & SUVs. Since 2008, ICON has been developing products that redefine the limits of what a “stock” vehicle is capable of. ICON is part of a family of manufacturing companies that includes state of the art machining, laser cutting, and metal forming processes. This unique situation allows ICON to develop products that are at the forefront of technology quickly and efficiently, while maintaining a standard of quality unrivaled in the industry.
