DETAILS

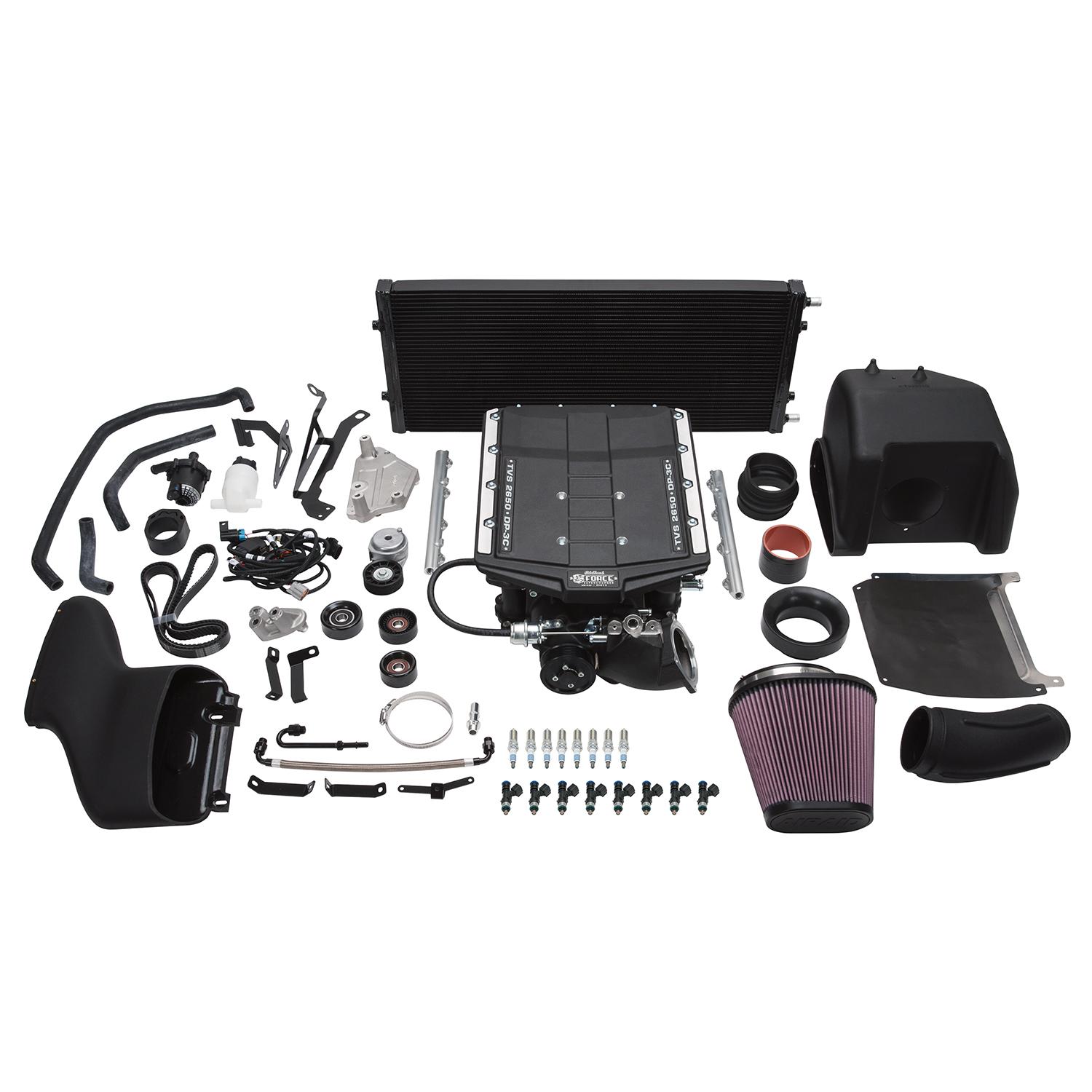

The Edelbrock E-Force Supercharger Stage 1 Street System part # 15570 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft/lbs. of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2650 TVS Supercharger rotating assembly with a four lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved air flow, without the need for a jack-shaft. Keeping the air cool is a high capacity air to water intercooler and low temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program, which can be downloaded at www.edelbrock.com. For safety, the Edelbrock supplied program will retain the factory vehicle speed limiter setting.
SPECS
Emissions Code EO Number: D-215-97
Maximum Boost Pressure 11
Maximum Pressure Reading 11
Pulley Belt Width 6.0 in
Hazardous Materials Warning WARNING: This product can expose you to Chrome, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
