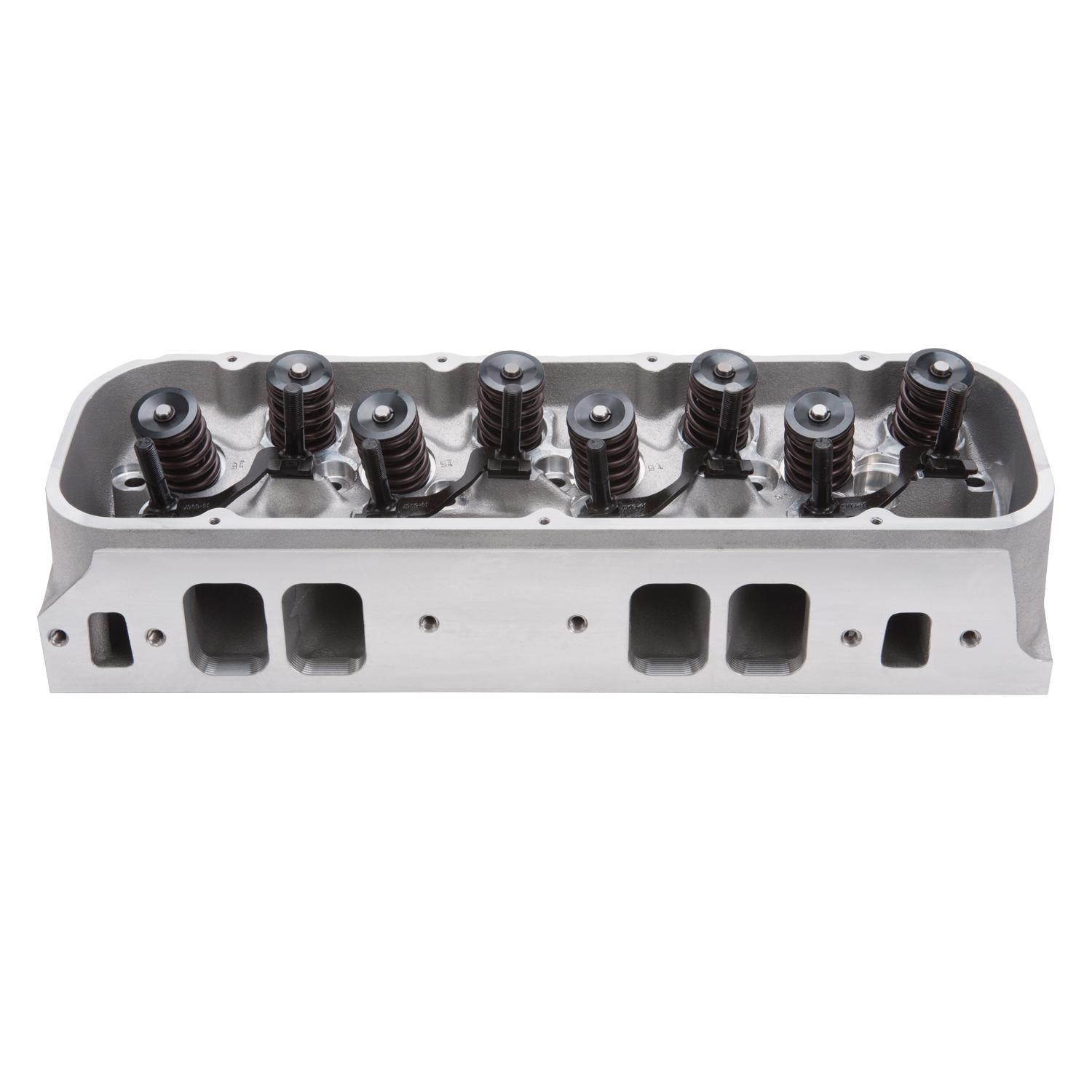

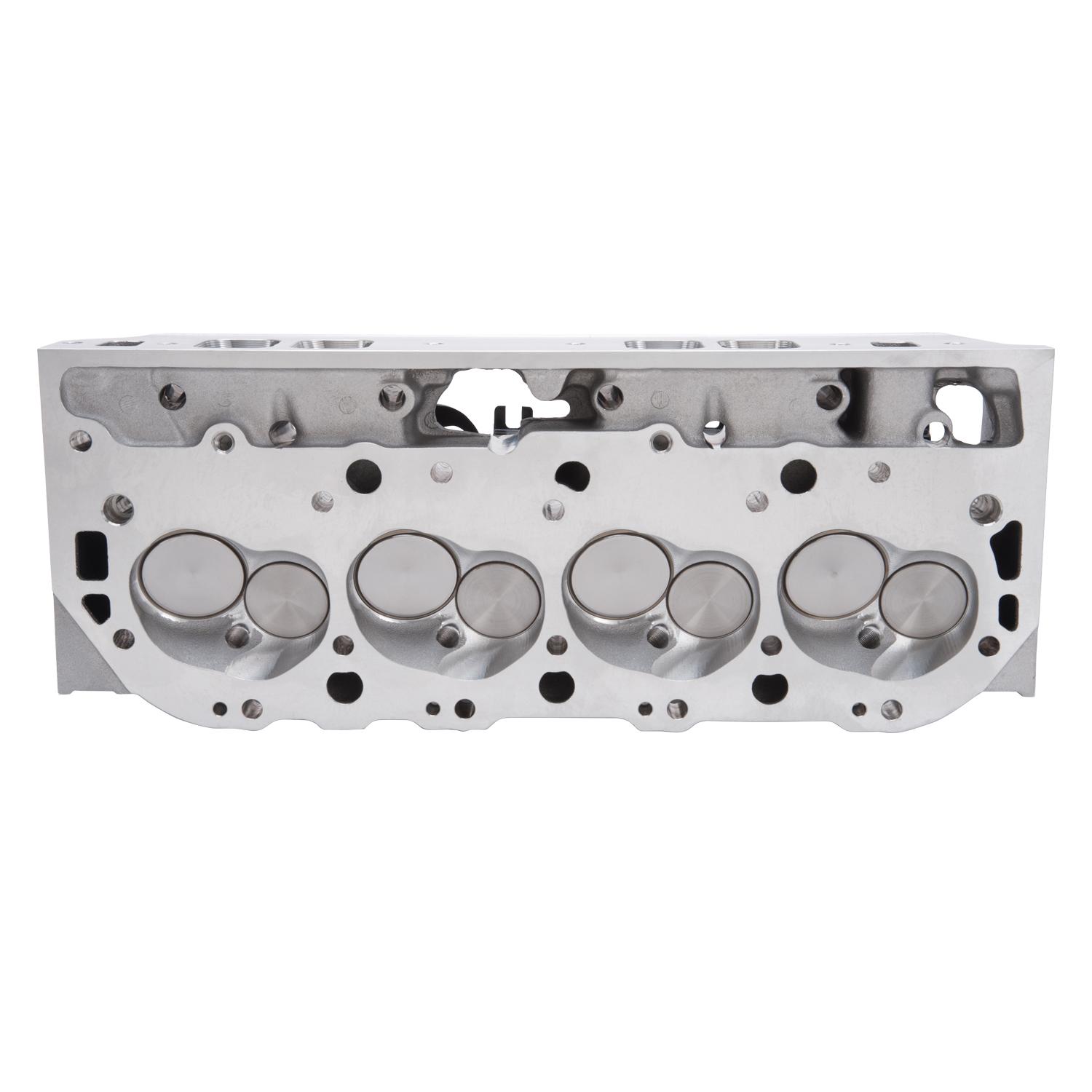

Edelbrock BBC Cylinder Head - 77485
Edelbrock part #77485 Victor Jr. 24 Degree is a complete cylinder head designed for Big Block Chevy 396-502 V8 engines. The 300cc rectangle ports produce impressive flow on competition big-blocks up to 510 c.i.d. with 4.310" or larger bore
Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
The Edelbrock part #77485 Big-Block Chevy Victor Jr. 24deg cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete 774815 cylinder head with a spring packages to suit hydraulic roller cams. The 300cc rectangle ports produce impressive flow and great power on competition big-blocks up to 510 c.i.d. with 4.310" or larger bore. Exhaust port exits are raised .534" to greatly improve exhaust flow and power.
List 1
PRODUCT NOTES:
Guide Material - Manganese Bronze
Guide Plate Material - Hardened Steel
Guide Plates Included - Yes
Head Casting Number - N/A
Horsepower - 600-800
Intake Runner Volume - 300
Intake Valve Diameter - 2.25
Material - Aluminum
Push Rod Diameter - (Suggested) 0.375
Quantity - Sold Individually
