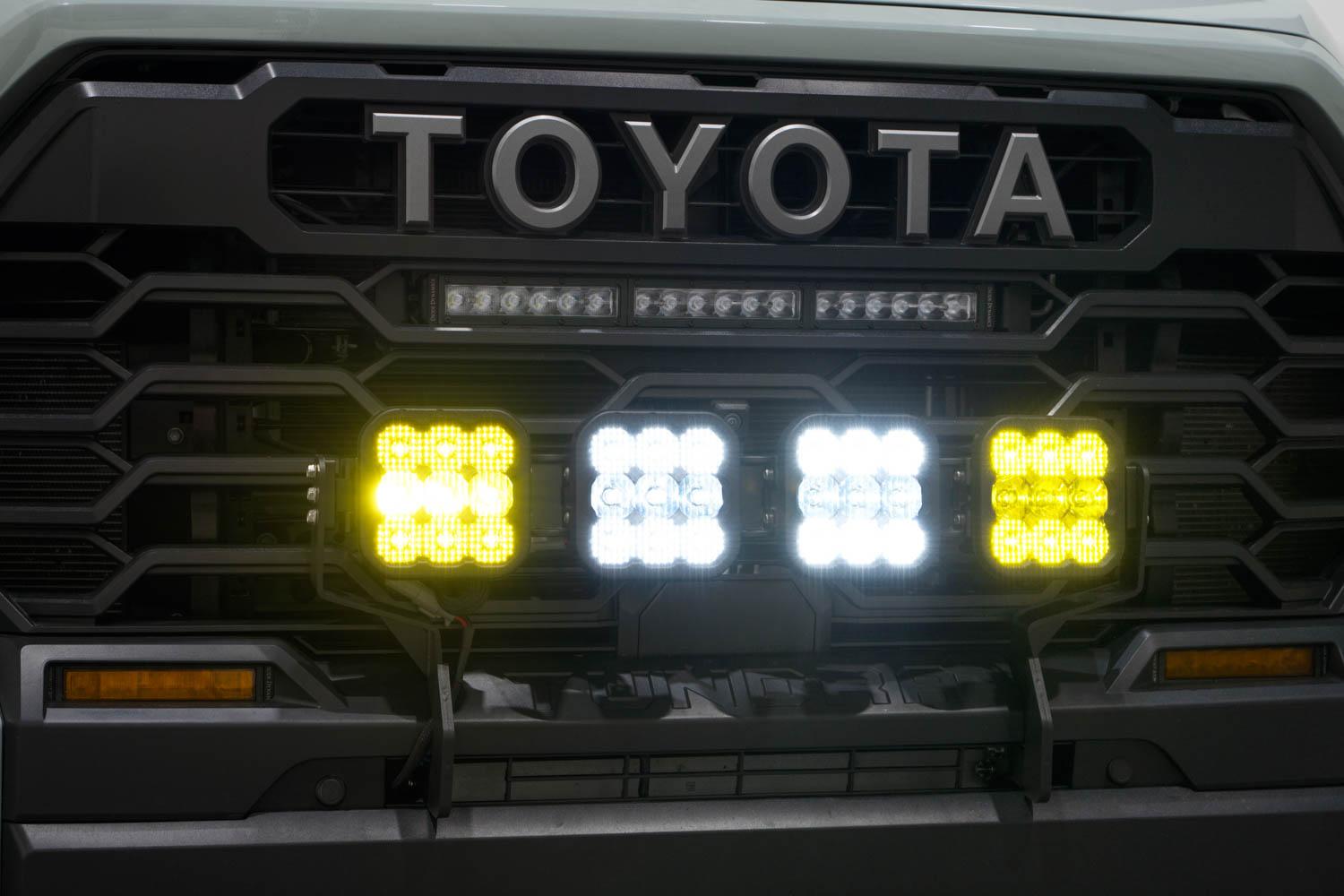

Diode Dynamics SS5 Grille CrossLink Lightbar Kit for 2022 Toyota Tundra, Sport Yellow Combo (2022 Toyota Tundra) - DD7408
Features
- Bolt-on fitment on 2022+ Toyota Tundra.
- Allows you to mount a four-pod CrossLink lightbar across the grille.
- Ultra-high intensity with custom-engineered TIR optics.
- Selectable backlight color with eight color options.
- Torture-tested heavy-duty construction.
- Utilizes existing mounting points for easy installation.
- Assembled in USA
Overview
Perfect Fitment. The Grille CrossLink Lightbar Kit compatible with Toyota Tundra 2022 from Diode Dynamics allows you to mount four linked SS5 LED pods on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the bumper. No cutting or drilling required!
Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.
Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent that you won't find on other LED pods. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic. NOTE: The Yellow kit is only available with an Amber backlight color.
CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable for both straight and curved configurations.
NOTE: The existing mounting points must be drilled out larger in order to secure the bracket.
Included in the box:
- Four (4) Application-specific heavy-duty steel brackets for installation on 2022+ Toyota Tundra
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- Three (3) CrossLink splitter harnesses
- One (1) Heavy Duty single-output harness
- Installation Guide
Beam Angle - Combo (Driving and Flood)
Measured Output (lumens) - 3 700 lm
Color Temp - 3000K
Intensity (lux) - 71 200 cd
Input Power (watts) - Main Beam: 40 Backlight: 3.07
Operating Voltage - 9-16V
Operating Temperature - -40C to 85C (-40F to 185F)
Intrusion Rating - IP69K Waterproof, High Pressure
Connectors - Deutsch DT Input
Physical Materials - Polycarbonate Lens, Aluminum Casting, Rubber Gasket
