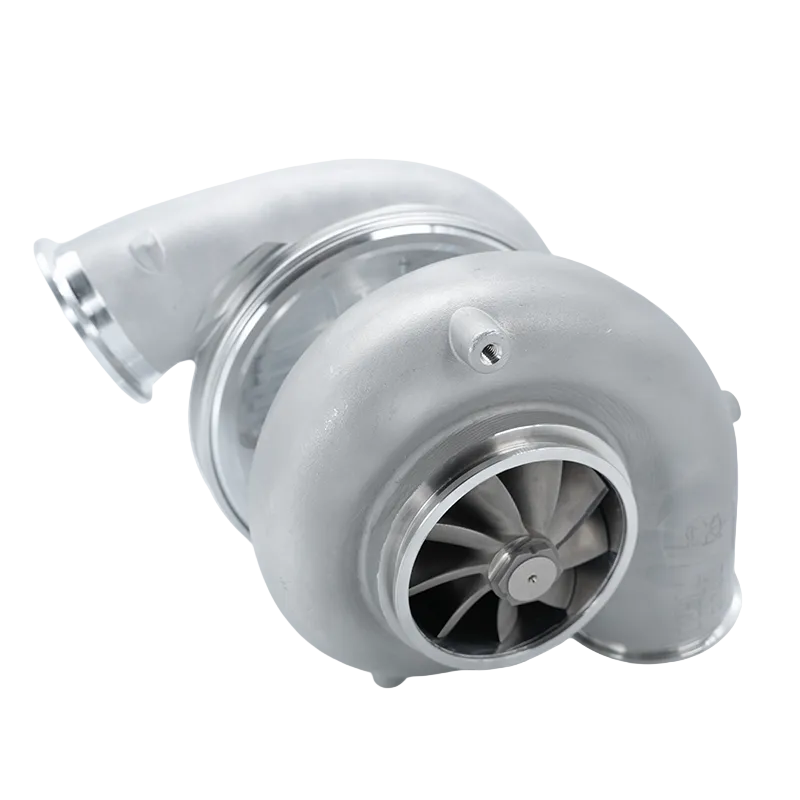

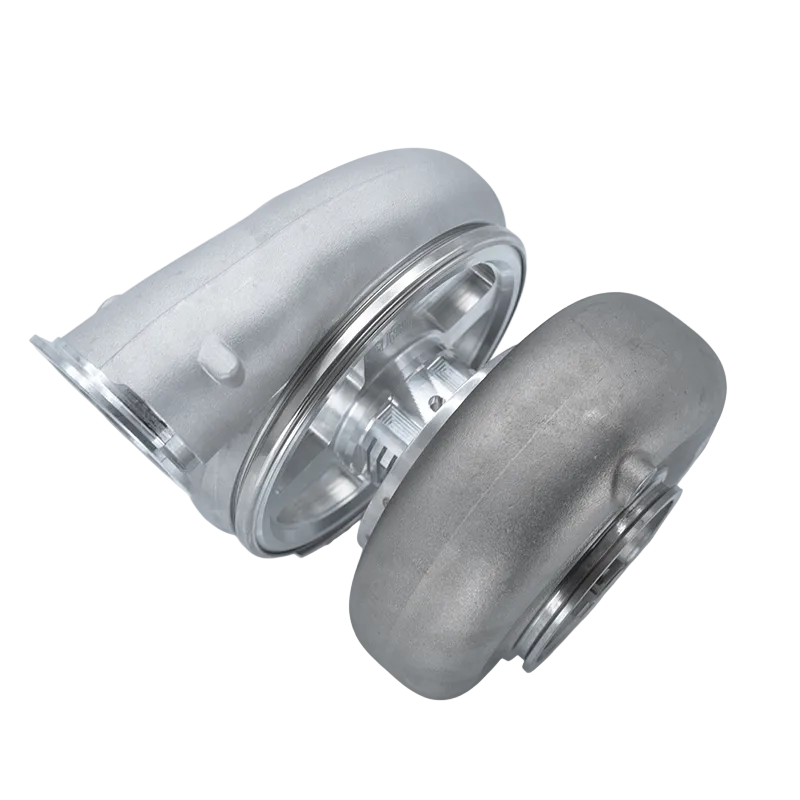

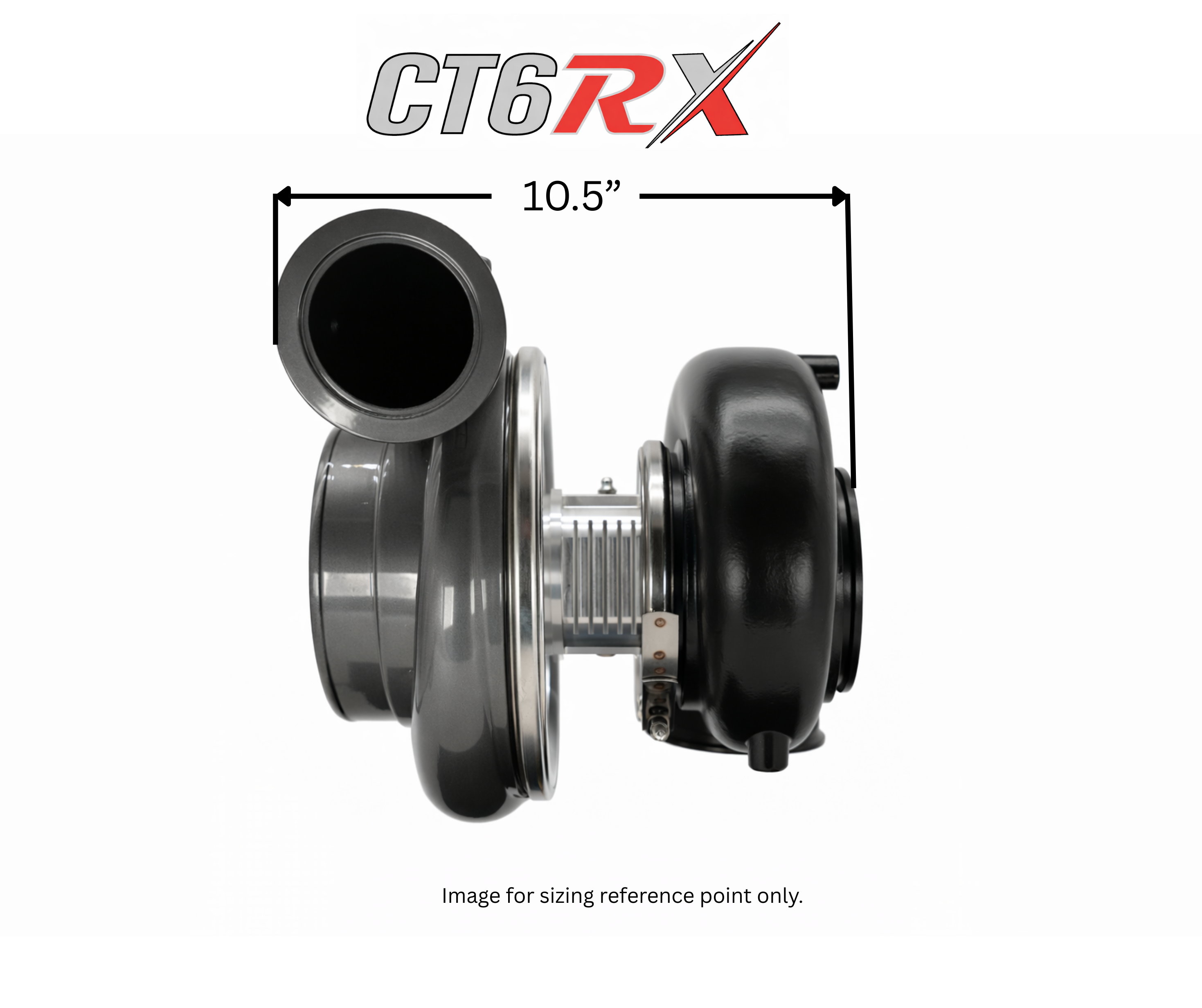

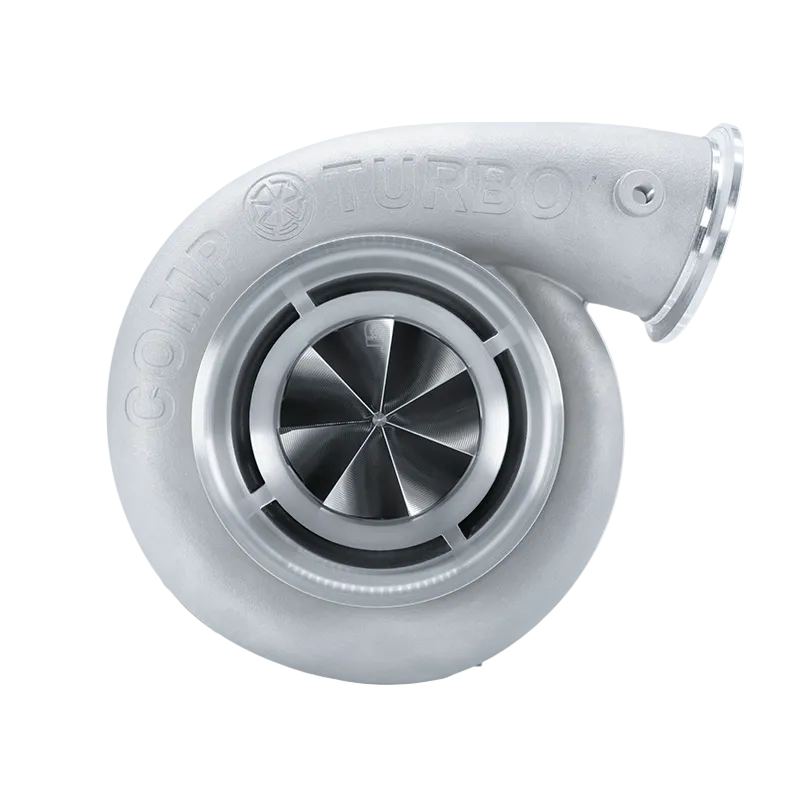

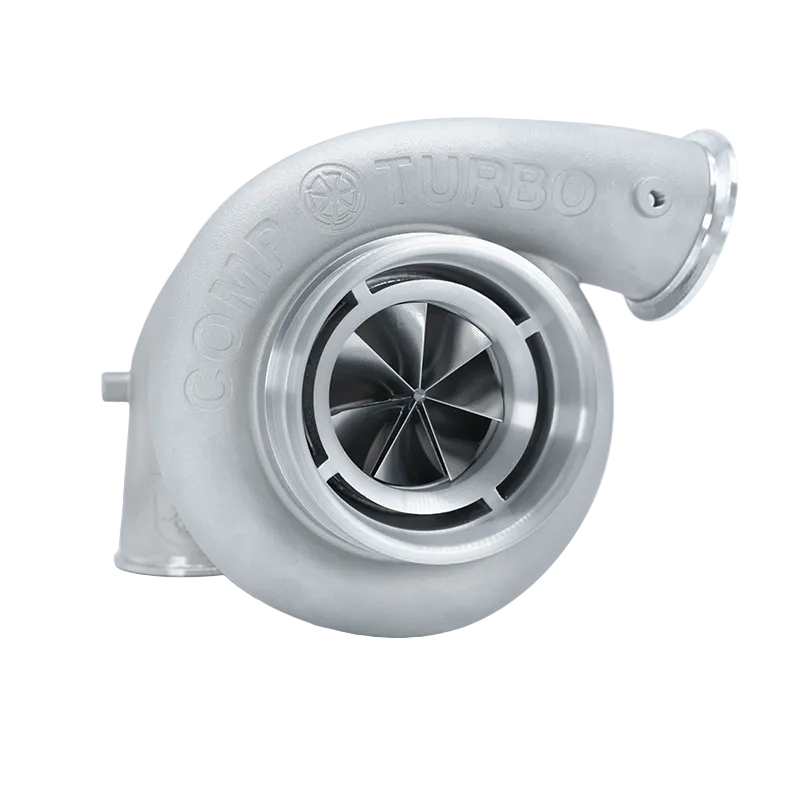

CT6RX-94106 2400HP Triplex Ceramic Oil Lubricated Ball Bearing
Reference: 639416-2
Product Description
The CT6RX-94106, rated at 2400 HP, is a turbocharger featuring a triplex ceramic ball bearing system dependent on engine oil lubrication. It is specifically designed to deliver superior efficiency, durability, and performance. With advanced precision ceramic ball bearings, this turbocharger enhances spool response, reduces friction, and increases longevity compared to traditional journal bearings. The CT6RX-94106 turbocharger is the ideal choice for enthusiasts seeking reliable, high-speed boost performance with minimal lag.
Features
· Patented Triplex Ceramic Ball Bearing System: Ensures ultra-smooth operation, faster spool times, and improved durability.
· Engineered for High-Performance Applications, Suitable For Both Street and Track Use.

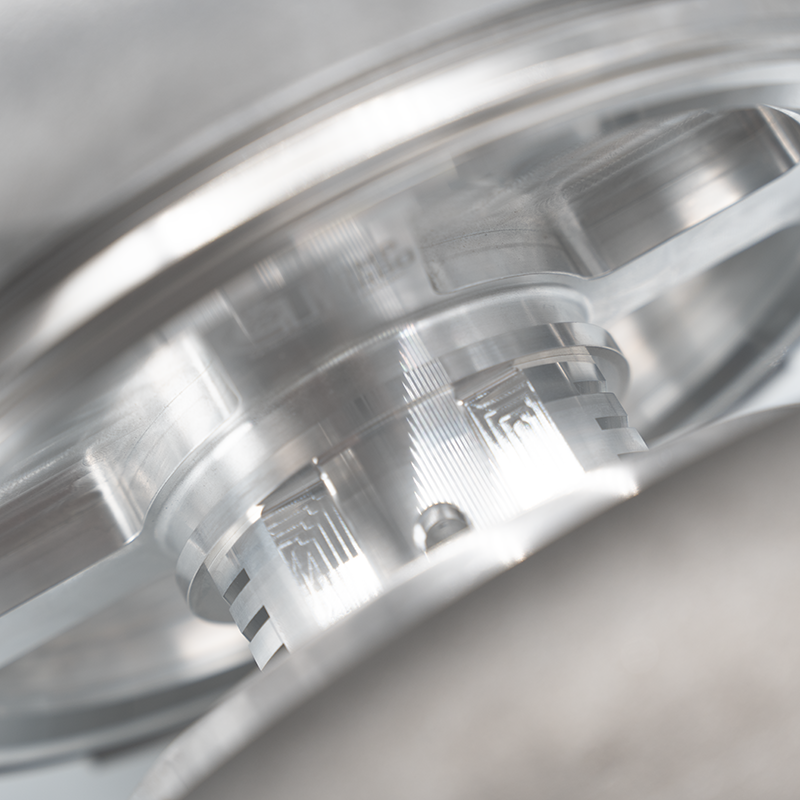

· Lightweight Billet Aluminum Center Section
· CTRX Ultra Slim Hub Compressor Wheel 94MM
· High Flow 9 Bladed Turbine Wheel 106MM
· Standard Rotation Configuration
· Available in T6 & V-Band Inlet Turbine Housings
· Fully Rebuildable & Upgradeable
· Weight: 44 LBS
Product Specifications
Min HP 1000 - Max HP 2400
Min Displacement (L) 3.0 - Max Displacement (L) 12.0
Compressor Housing Specs

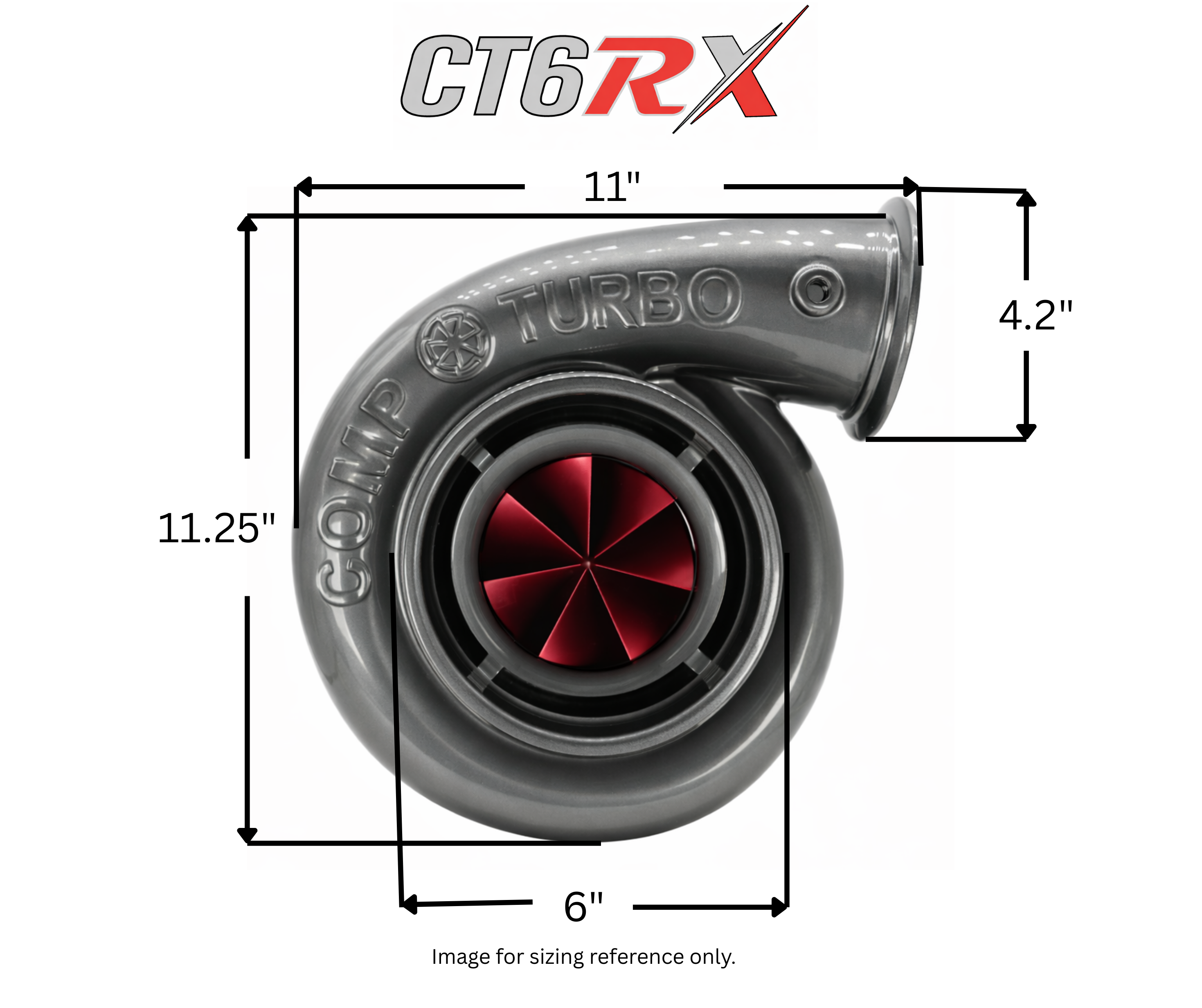

Inlet 6” Outlet 3.5” A/R: .88
Compressor Wheel Specs
Compressor Inducer (mm) 94
Compressor Major (mm) 140
Bearing Housing Fitting Threads
Oil Feed 1/8 NPT Female
Oil Drain 1/2 NPT Female
Turbine Wheel Specs
Turbine Inducer (mm) 112
Turbine Exducer (mm) 106
Built to Order Notice
All Comp Turbos are built to order. Standard production time is typically 2–3 weeks.
If you require a rush order, please note it in the “Order Notes” section at checkout.
Once received, our customer service team will contact you within 24 hours to confirm your request and advise on the expected ship date.
At Comp Turbo, customer service is our top priority, we will do our absolute best to ensure you receive your turbocharger within your required timeframe.
2-Year Warranty on All Turbochargers
At Comp Turbo, we stand by the quality and performance of our turbochargers. That's why we're proud to offer a comprehensive 2-Year Warranty, ensuring your investment is protected and your peace of mind is secured.
What’s Covered?
· Defects in materials and workmanship.
· Repair or replace your turbocharger at no additional cost during the warranty period.
Why Choose Us?
· Reliability You Can Trust: Each turbocharger is engineered to meet or exceed industry standards.
· Customer-Centric Approach: Your satisfaction is our priority, and we’re here to support you every step of the way.
· Hassle-Free Process: If something goes wrong, our warranty claims process is straightforward and transparent.
Warranty Terms
· The warranty is valid for two years from the purchase date.
· Applies to turbochargers used in accordance with proper maintenance and operation guidelines.
With our 2-Year Warranty, we’re making a statement: quality matters, and our customers deserve nothing less than the best.
