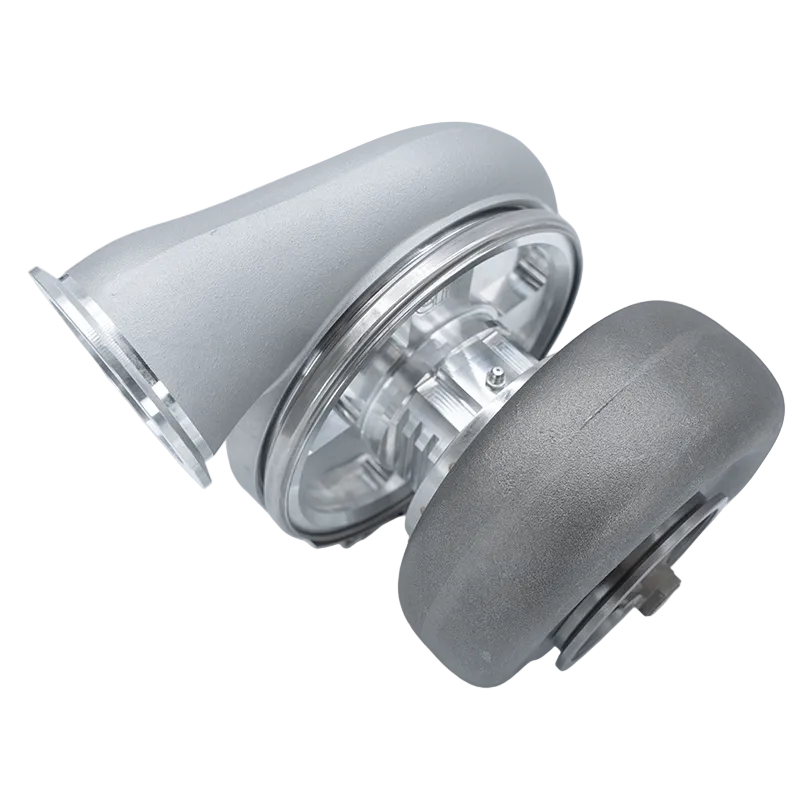

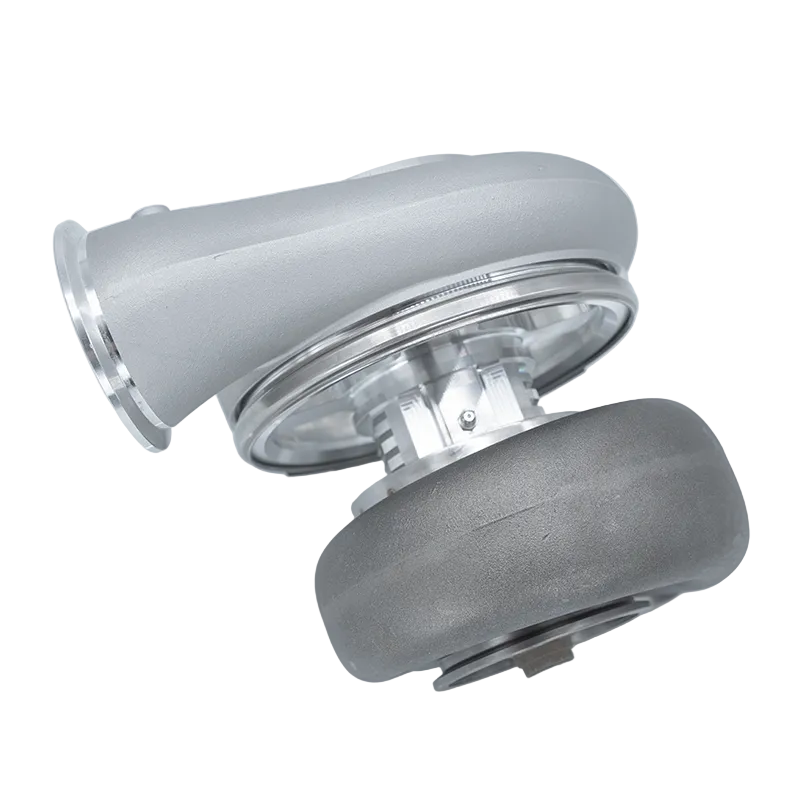

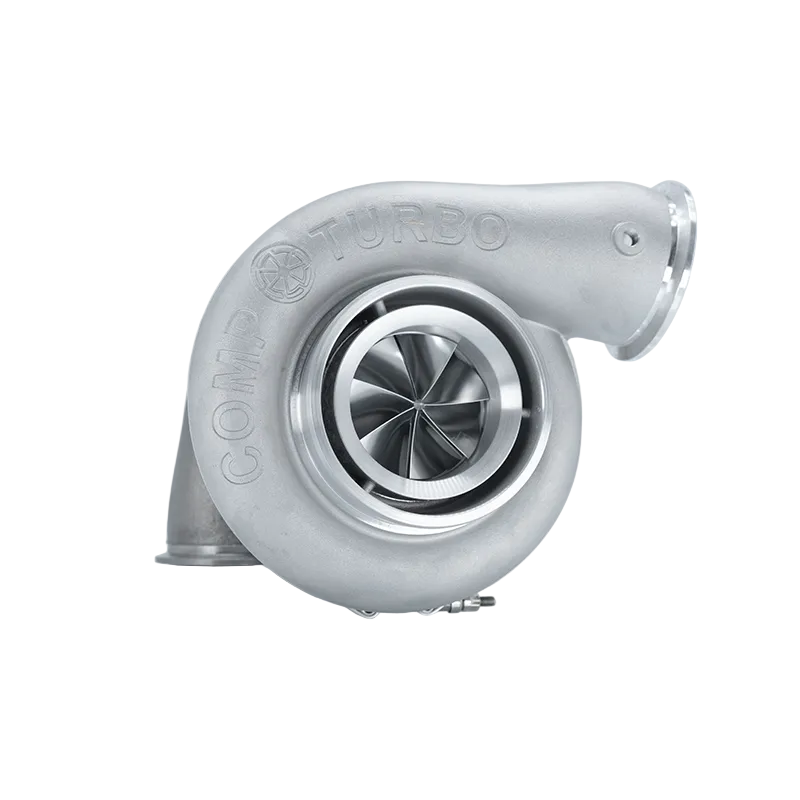

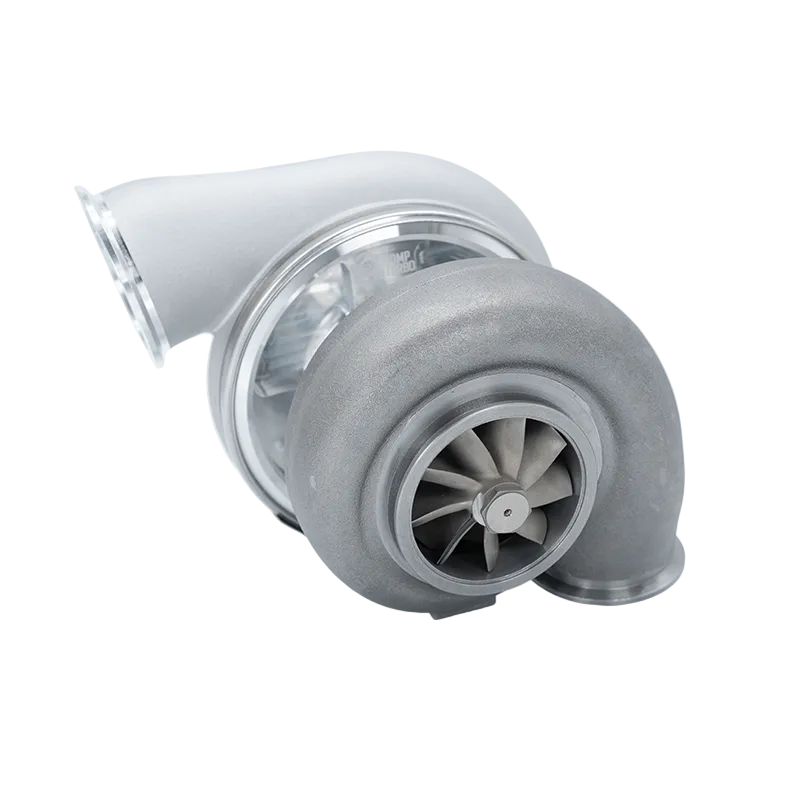

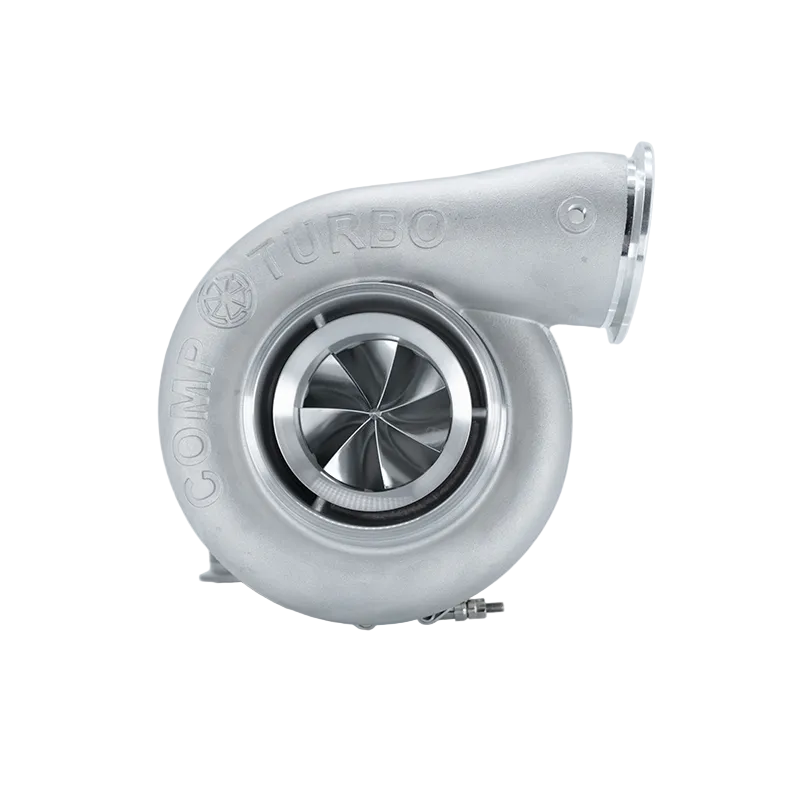

CT5RX-7685 1550HP Triplex Ceramic Oil-Less Air-Cooled Ball Bearing
Reference: 537685-4
Product Description
The CT5RX 7685 1550HP Triplex Ceramic Oil-Less Air-Cooled Ball Bearing Turbocharger a game-changer in forced induction technology. Designed for high-performance street and strip applications, this turbo eliminates the need for oil and water lines, simplifying installation. The unit can be mounted from horizontal to vertical position.
Features
· Patented Triplex Ceramic Oil-Less Air-Cooled System: Ensures ultra-smooth operation, faster spool times, and improved durability.
· Oil-Less Air-Cooled- No Oil or water lines required
· Engineered for High-Performance Applications, Suitable for Both Street and Track Use. Recommended installation engine bay 1/8-1/2 mile racing only. Street use recommended installation mid mount to remote mount turbo systems.
· Lightweight Billet Aluminum Center Section
· CTRX Billet Aluminum Ultra Slim Hub 7+7 Compressor Wheel 76MM
· Inconel 713C High Flow 9 Bladed Turbine Wheel 85MM
· Standard Rotation Configuration
· Available in T4 & V-Band Inlet Turbine Housings
· Fully Rebuildable & Upgradeable
· Maintenance Grease Fitting
· Horizontal & Vertical Installation
· Weight: 28 LBS
Product Specifications
Min HP 800 - Max HP 1550
Min Displacement (L) 2.0 - Max Displacement (L) 8.0
Compressor Housing Specs
Inlet 5” Outlet 3.5” A/R: .85
Pressure Port: 1/8 NPT
Compressor Wheel Specs
Compressor Inducer (mm) 76
Compressor Major (mm) 120
Turbine Wheel Specs
Turbine Inducer (mm) 96
Turbine Exducer (mm) 85
Built to Order Notice
All Comp Turbos are built to order. Standard production time is typically 2–3 weeks.
If you require a rush order, please note it in the “Order Notes” section at checkout.
Once received, our customer service team will contact you within 24 hours to confirm your request and advise on the expected ship date.
At Comp Turbo, customer service is our top priority, we will do our absolute best to ensure you receive your turbocharger within your required timeframe.
Recommended Service Interval
· Comp Turbo recommends applying 8 pumps of grease every 3,000 miles under normal street use.
· For extreme street use applications, apply 8 pumps of grease every 1,500 miles
· For extreme drag race applications apply 8 pumps of grease prior to the race event.
