CT5RX-7385 1475HP Triplex Ceramic Oil Lubricated Ball Bearing
Super Street/XFWD Class Legal
Reference: 537385-2
Product Description
The CT5RX-7385 is a high-performance turbocharger rated up to 1,475 horsepower, engineered for serious boost applications that demand efficiency, durability, and fast response. Featuring Comp Turbo’s Triplex ceramic ball bearing system, this turbo is designed to reduce friction, improve spool response, and increase long term reliability.
The CT5RX-7385 is engine-oil lubricated and built for performance, delivering strong airflow, minimal lag, and dependable operation under demanding conditions. Designed to meet the demands of competitive racing, this turbocharger is Super Street / XFWD Class Legal, making it an excellent choice for enthusiasts and racers seeking reliable, high-horsepower boost performance within class rules.
Features
· Patented Triplex Ceramic Ball Bearing System: Ensures ultra-smooth operation, faster spool times, and improved durability.
· Engineered for High-Performance Applications, Suitable For Both Street and Track Use.

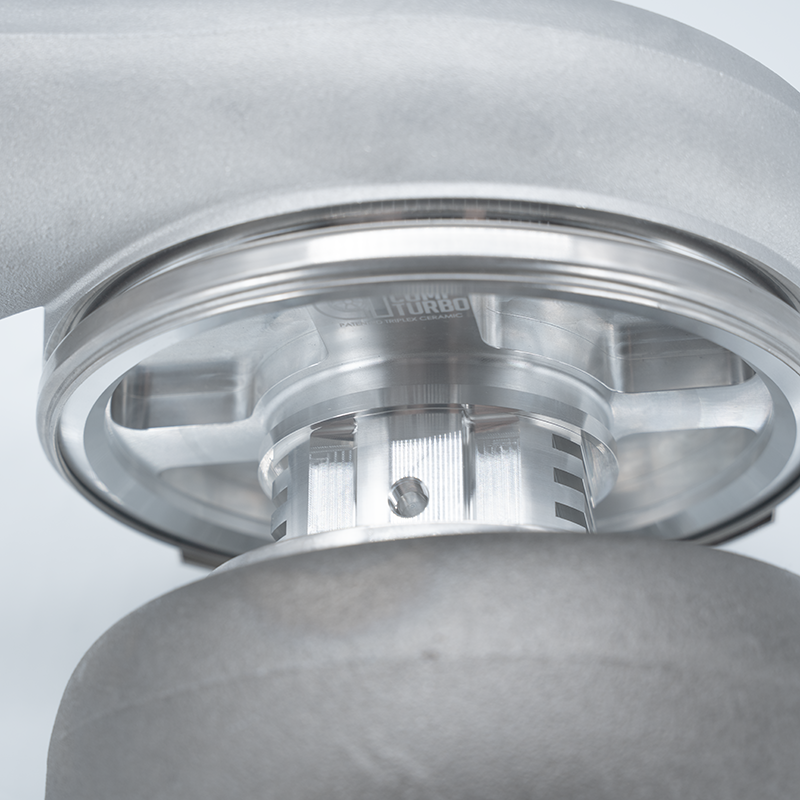

· Lightweight Billet Aluminum Center Section
· CTRX Ultra Slim Hub Compressor Wheel 73.9 MM
· High Flow 9 Bladed Turbine Wheel 85MM
· Standard Rotation Configuration
· Available in T4 & V-Band Inlet Turbine Housings
· Fully Rebuildable & Upgradeable
· Weight: 28 LBS
Product Specifications
Min HP 800 - Max HP 1475
Min Displacement (L) 2.0 - Max Displacement (L) 8.0

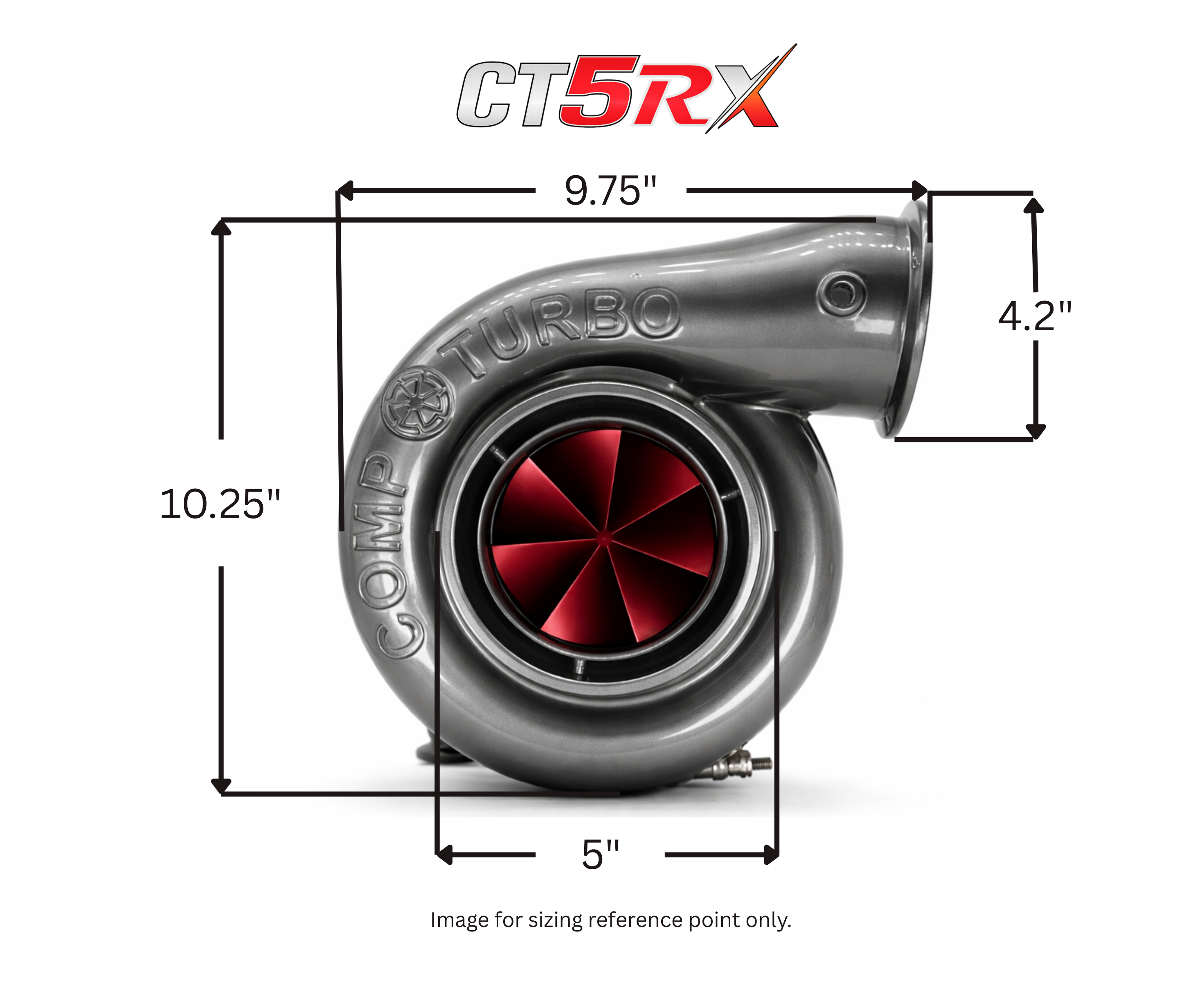

Compressor Housing Specs
Inlet 5” Outlet 3.5” A/R: .85
Compressor Wheel Specs
Compressor Inducer (mm) 73.9
Compressor Major (mm) 102.9 / Extended Tip 104.99
Bearing Housing Fitting Threads
Oil Feed 1/8 NPT Female
Oil Drain 1/2 NPT Female
Turbine Wheel Specs
Turbine Inducer (mm) 96
Turbine Exducer (mm) 85
Built to Order Notice
All Comp Turbos are built to order. Standard production time is typically 2–3 weeks.
If you require a rush order, please note it in the “Order Notes” section at checkout.
Once received, our customer service team will contact you within 24 hours to confirm your request and advise on the expected ship date.
At Comp Turbo, customer service is our top priority, we will do our absolute best to ensure you receive your turbocharger within your required timeframe.
2-Year Warranty on All Turbochargers
At Comp Turbo, we stand by the quality and performance of our turbochargers. That's why we're proud to offer a comprehensive 2-Year Warranty, ensuring your investment is protected and your peace of mind is secured.
What’s Covered?
· Defects in materials and workmanship.
· Repair or replace your turbocharger at no additional cost during the warranty period.
Why Choose Us?
· Reliability You Can Trust: Each turbocharger is engineered to meet or exceed industry standards.
· Customer-Centric Approach: Your satisfaction is our priority, and we’re here to support you every step of the way.
· Hassle-Free Process: If something goes wrong, our warranty claims process is straightforward and transparent.
Warranty Terms
· The warranty is valid for two years from the purchase date.
· Applies to turbochargers used in accordance with proper maintenance and operation guidelines.
With our 2-Year Warranty, we’re making a statement: quality matters, and our customers deserve nothing less than the best.
