CT3RX-5862 875HP Triplex Ceramic Oil Lubricated Ball Bearing
Reference: 325862-2
Product Description
The CT3RX-5862, rated at 875 HP, is a turbocharger featuring a triplex ceramic ball bearing system dependent on engine oil lubrication. It is specifically designed to deliver superior efficiency, durability, and performance. With advanced precision ceramic ball bearings, this turbocharger enhances spool response, reduces friction, and increases longevity compared to traditional journal bearings. The CT3RX-5862 turbocharger is the ideal choice for enthusiasts seeking reliable, high-speed boost performance with minimal lag.
Features
· Patented Triplex Ceramic Ball Bearing System: Ensures ultra-smooth operation, faster spool times, and improved durability.
· Engineered for High-Performance Applications, Suitable For Both Street and Track Use.
· Lightweight Billet Aluminum Center Section
· CTRX Billet Aluminum Ultra Slim Hub Compressor Wheel 58MM
· Inconel 713C High Flow 9 Bladed Turbine Wheel 62MM
· Standard Rotation Configuration
· Available in T3 & V-Band Inlet Turbine Housings
· Fully Rebuildable & Upgradeable
· Weight: 12 LBS
Product Specifications
Min HP 450 - Max HP 875
Min Displacement (L) 2.0 - Max Displacement (L) 4.0
Compressor Housing Specs

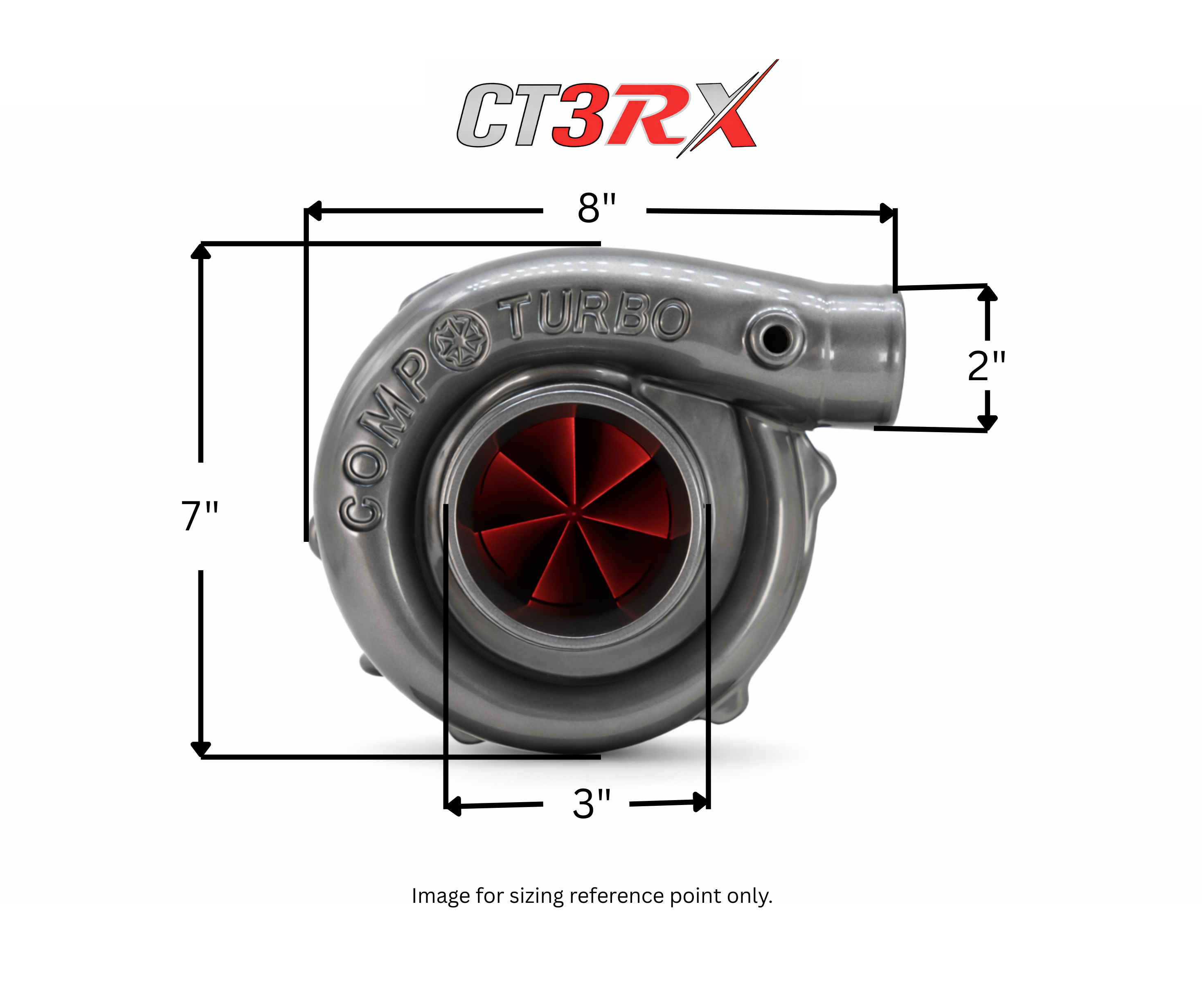

Inlet 3” Outlet 2” A/R: .60
Pressure Port: 1/8 NPT
Compressor Wheel Specs
Compressor Inducer (mm) 58
Compressor Major (mm) 81
Bearing Housing Fitting Threads
Oil Feed 1/8 NPT Female
Oil Drain 1/2 NPT Female
Turbine Wheel Specs
Turbine Inducer (mm) 68
Turbine Exducer (mm) 62
Built to Order Notice
All Comp Turbos are built to order. Standard production time is typically 2–3 weeks.
If you require a rush order, please note it in the “Order Notes” section at checkout.
Once received, our customer service team will contact you within 24 hours to confirm your request and advise on the expected ship date.
At Comp Turbo, customer service is our top priority, we will do our absolute best to ensure you receive your turbocharger within your required timeframe.
