CT2RX-5455 690HP Triplex Ceramic Oil Lubricated Ball Bearing
Reference: 235455-2
Product Description
The CT2RX-5455, rated at 690 HP, is a turbocharger featuring a triplex ceramic ball bearing system dependent on engine oil lubrication. It is specifically designed to deliver superior efficiency, durability, and performance. With advanced precision ceramic ball bearings, this turbocharger enhances spool response, reduces friction, and increases longevity compared to traditional journal bearings. The CT2RX-5455 turbocharger is the ideal choice for enthusiasts seeking reliable, high-speed boost performance with minimal lag. Upgrade your engine with this cutting-edge turbo technology to achieve maximum power and efficiency
Features
· Patented Triplex Ceramic Ball Bearing System: Ensures ultra-smooth operation, faster spool times, and improved durability.
· Engineered for High-Performance Applications, Suitable For Both Street and Track Use.
· Lightweight Billet Aluminum Center Section
· CTRX Billet Aluminum Ultra Slim Hub Compressor Wheel 54MM
· Inconel 713C High Flow 9 Bladed Turbine Wheel 55MM
· Standard Rotation Configuration
· Available in T2 & V-Band Inlet Turbine Housings
· Fully Rebuildable & Upgradeable
· Weight: 10 LBS
Product Specifications
Min HP 300 - Max HP 690
Min Displacement (L) 1.4 - Max Displacement (L) 3.0

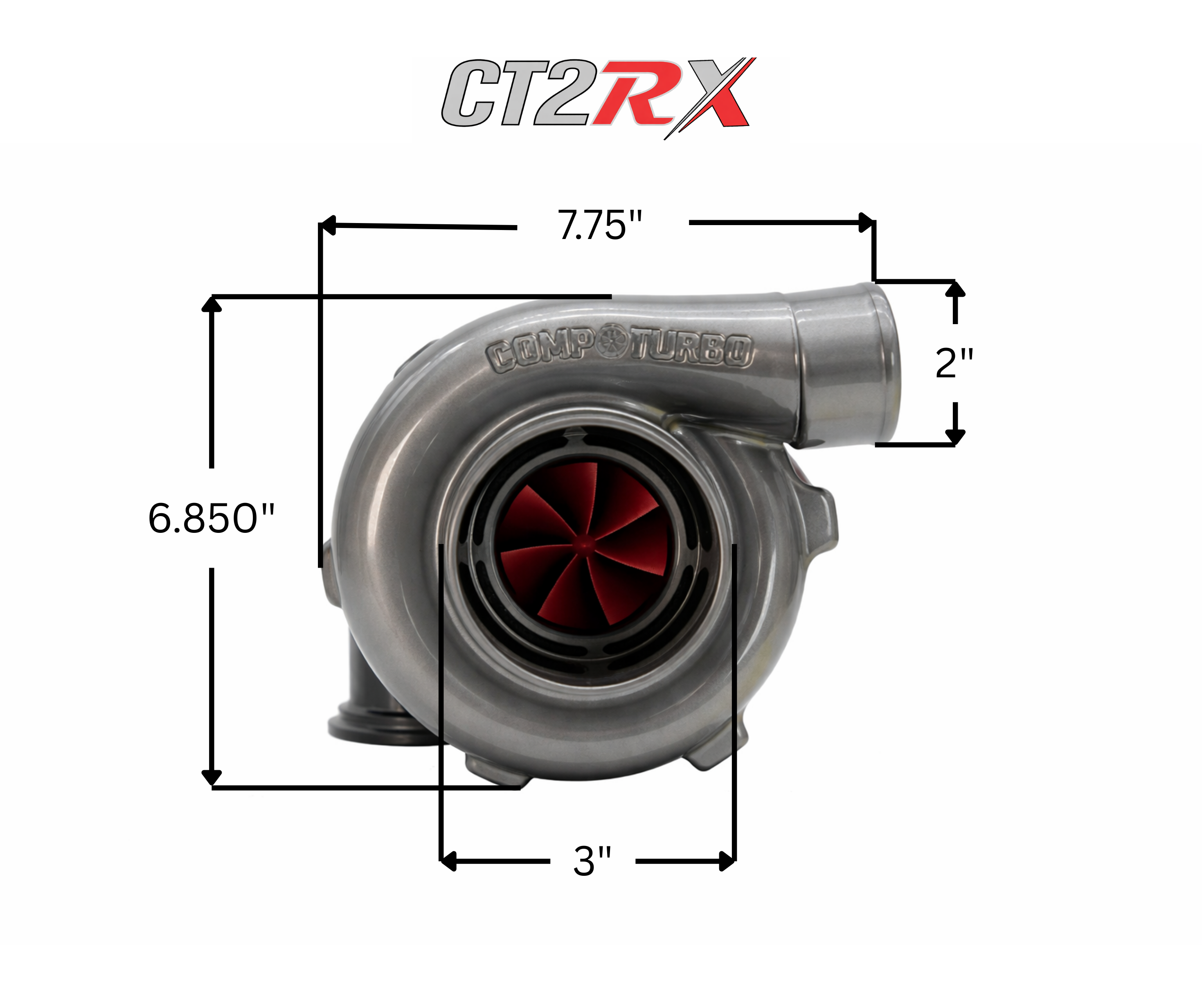

Compressor Housing Specs
Inlet 3” Outlet 2” A/R: .60
Compressor Wheel Specs
Compressor Inducer (mm) 54
Compressor Major (mm) 81
Bearing Housing Fitting Threads
Oil Feed 1/8 NPT Female
Oil Drain 1/2 NPT Female
Turbine Wheel Specs
Turbine Inducer (mm) 60
Turbine Exducer (mm) 55
