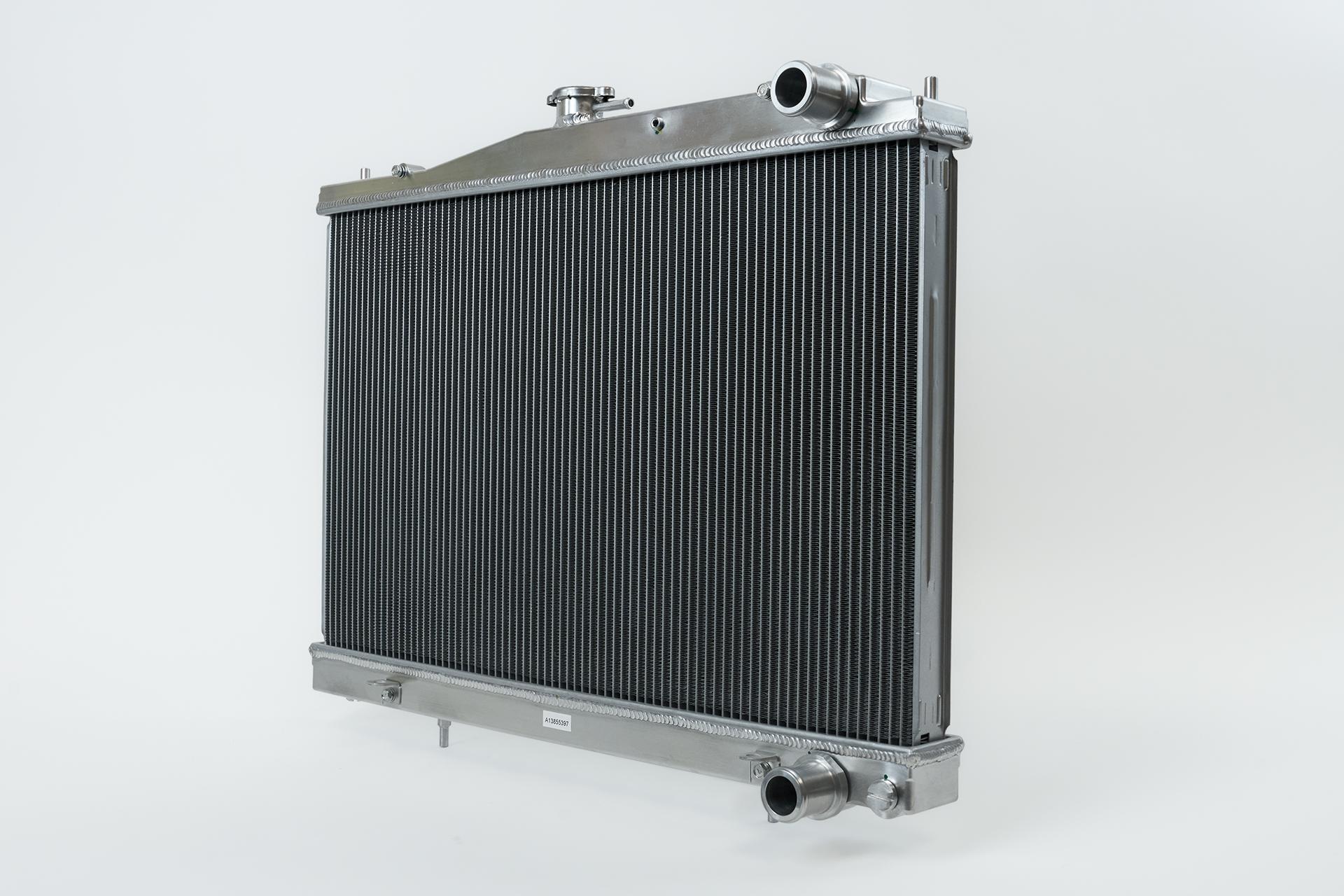

CSF R33 Skyline GT-R/GTs Full Billet Aluminum High-Performance Radiator - Raw Billet - 7219
The Nissan R33 Skyline is one of the JDM legendary vehicles. From GTS to GT-R, people still go wild anytime they see one. Here in the states Nissan GT-R is still of the most popular JDM imports regardless of generation. Import companies like TopRank have been helping enthusiasts acquire these dream vehicles for years. Now they have teamed up with CSF to help bring a truly special product to the market. Introducing the Full Billet High-Performance Aluminum Radiator for the Nissan R33 Skyline.
The inline 6 motors found in the R33 Skyline are quite robust. Whether you have a basic 2.0L RB20 or legendary RB26, you probably don't worry too much about engine reliability. The R33 GT-R's RB26 is well know for making big power and being reliable while doing it. However power gains come at the cost of a lot of extra heat. While the factory radiator does a decent job keeping heat in check, it's always better to have more protection. CSF set out to develop a premium radiator that would offer ultimate performance cooling while being built to last a lifetime. Since the R32 is a valuable collector's car, it makes sense to use the highest quality parts when restoring or modifying them. With full CNC machined billet aluminum end tanks TIG welded by hand to the high grade aluminum core, this radiator performs even better than it looks.
The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from. Each end tank is CNC machined billet aluminum giving them incredible strength and durability. CNC machining offers incredible precision and uniformity. The results are perfectly produced end tanks that perfectly match up with the ends of the 42 mm core. Hand TIG welding joins the tanks to the core creating the strongest radiator on the market for the R33 Skyline. Each radiator includes a 1.4 bar high pressure cap with an embossed CSF logo. High pressure radiator caps raise the boiling point of coolant. This helps protect the system from boiling over at higher operating temperatures. While the radiator is designed to keep the system from reaching such temperatures, it is always good to have extra protection for situations where the coolant gets too hot. The CSF #7219 comes in a raw billet aluminum finish. Also available in Black (CSF #7219B).
CNC Machined 100% Billet Aluminum End Tanks
CSF, The Cooling Experts, have been serving the US aftermarket for almost 4 decades. With over 30 million units sold, CSF is your exclusive source for Radiators, Condensers, Intercoolers, Inverter Coolers, Racing Radiators and Pressure Caps.
Raw Billet Aluminum Finish
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
Individually Leak and Pressure Tested
OE Location Fan Shroud Mounting Points
2-Year Limited Warranty
Limited Production
2-Row - 42mm Ultra-High-Performance Core
75 Cooling Tubes with CSF's Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Pins and OEM Style Inlet/Outlet
1/8th NPT Temp Sensor Port on Top End Tank
Top Rank Logo machined into Top End Tank and Painted on Core
100% All Aluminum TIG-Welded Construction
1.4 Bar High Pressure Radiator Cap with CSF embossed logo
Get it all from CSF! With over 3000 models to chose from, CSF's coverage is second to none.When you choose CSF, you are dealing directly with the manufacturer, not a broker or an importer. CSF's factories are ISO certified, and are OE suppliers to many US, German and Asian manufacturers. When you purchase a CSF product, you can be rest assured that it has been manufactured on the same production lines with the same high quality standards as their OE customers. Every single radiator is subject to rigorous testing procedures such as Hydrostatic Testing, Vacuum decaying and life cycle testing, and is designed to always be a "drop-in fit".
