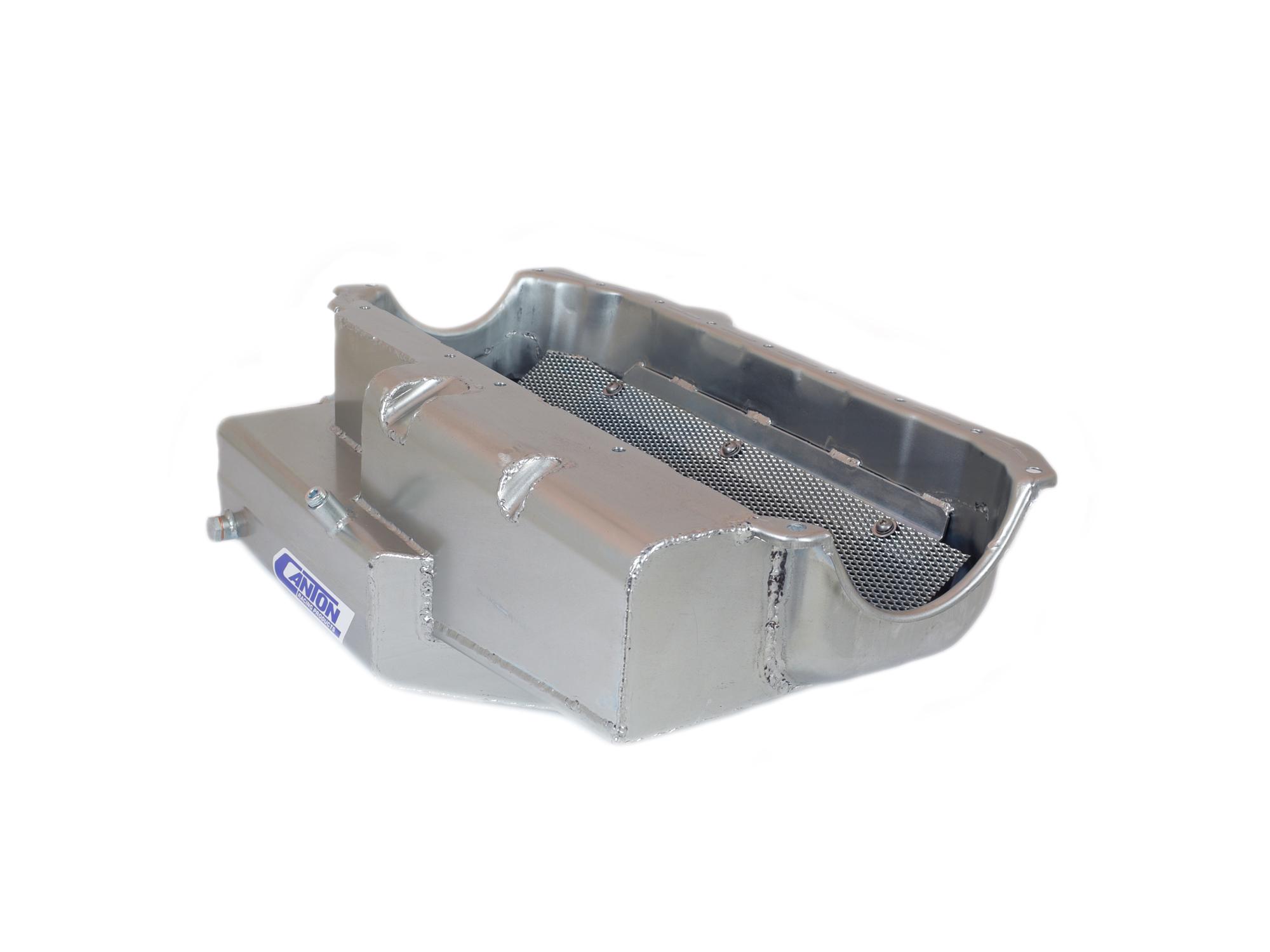

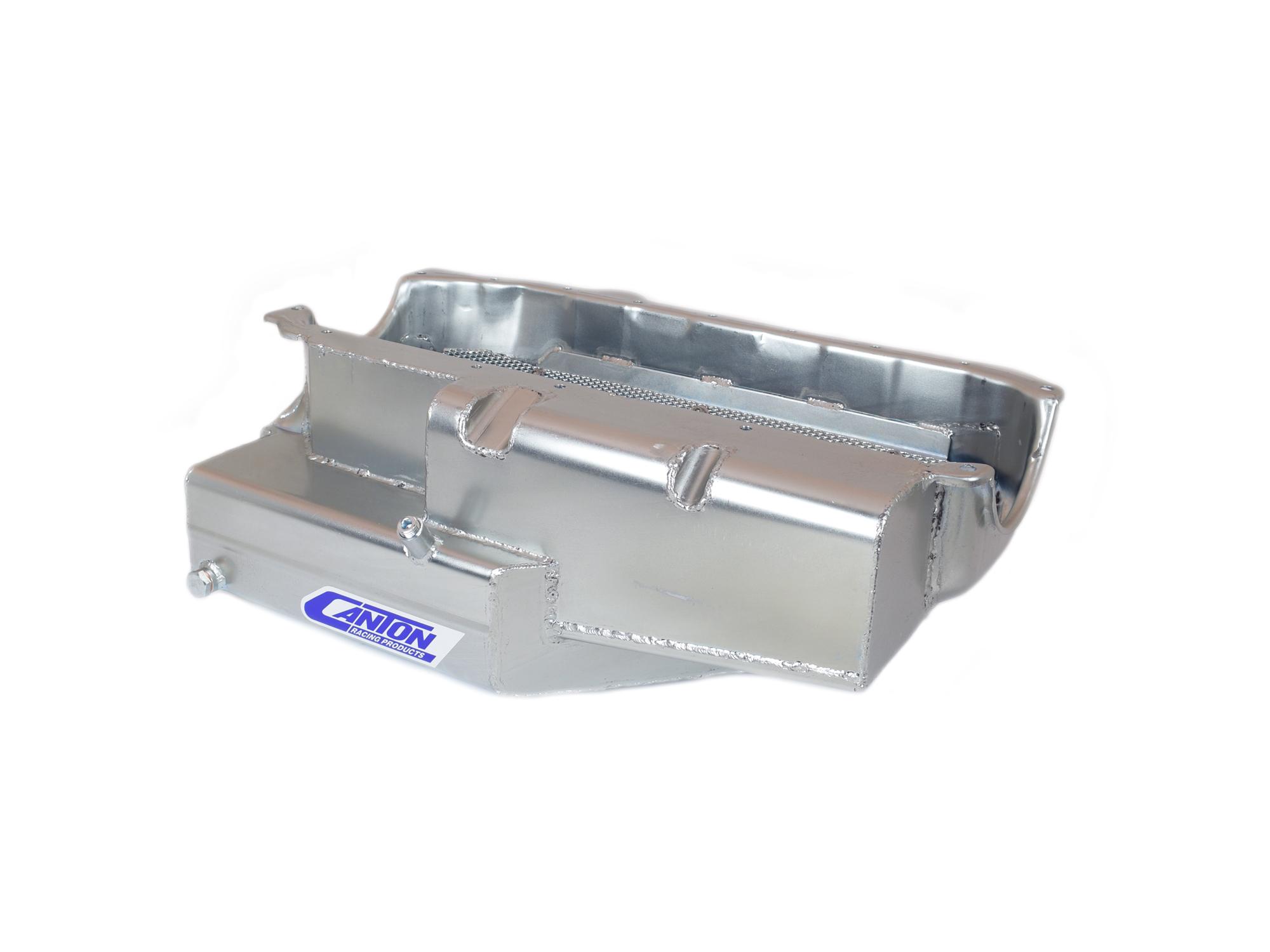

Canton Racing 11-186 Oil Pan Small Block Chevy Open Chassis Pro 16" Long 85 & Earlier - 11-186
Canton 11-186 Oil Pan Small Block Chevy Open Chassis Pro 16" Long 85 & Earlier
9 qt System Capacity
7" Deep, 11.5" Wide, 16" Long
Six Trap Door Baffles &
Directional Oil Runners
Pro Style Oil Recovery Pouch
Bolt in Slosh Baffle
Built in Screen Windage Tray
1/2” NPT Temperature Bung
Provison for our Pan Mounted Dipstick
Magnetic Drain Plug
This open chassis "L" style steel wet sump pan is for ?85 and earlier Small Block Chevys. It is designed for chassis without x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has an 11-1/2" wide, 16" long, 7" deep ?L? sump with a 9 quart system capacity. Requires use of one of our pickups and an offset aftermarket starter with a 153 or 168 tooth flywheel. Also an available option for this pan is #20-914 Pro Louvered Windage Tray, designed to replace the standard screen tray in this pan.
Canton Racing Products has been building oil pans and engine related products for racing and high performance applications since 1981. We began in a small Connecticut garage building specialty oil pans for local auto racers. The unique oil pans provided racers with the power and quality they demanded. As popularity for the specialty oil pans grew so did our selection of products. Today we offer a wide range of high performance products for racing and the street. During our business hours every phone call is directed straight to our hard working sales team. They are happy to use their experience and knowledge in the automotive market to provide customer service, product advice, and technical support to you and your customer. Our production process focuses on accuracy and reliability. Every product we make is built with the same production and quality assurance methods that we use when building parts for Ford, Roush, and Mopar. All products are tig welded, rather then mig welded. The tig welding process takes more time and skill but ensures more even heat and penetration through out the welding process. This result is better quality welds with less possibility for leaks and cracks. Every oil pan, valve cover, and tank that we produce under goes several leak tests. Our oil pans and valve covers are fitted on blocks or heads several times through out the production process to ensure they easily install on their application. We have been actively involved in racing for decades. Over the years we have built and ran several cars and have an appreciation for the effort and dedication it takes compete. We actively participate with clubs, schools, and other organizations in the performance automotive community. To learn about some of our partnerships see our "Trackside" link on our home page.
