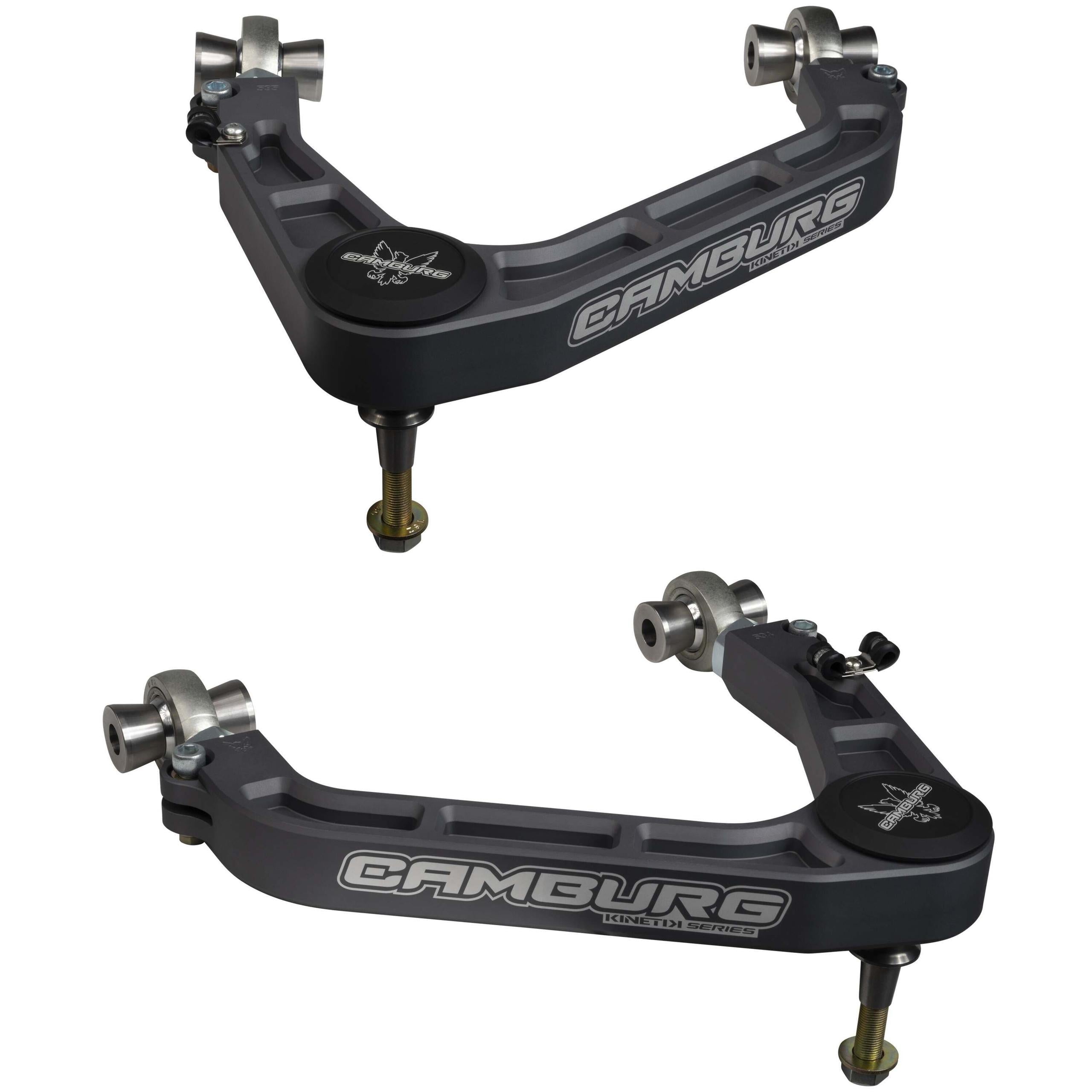

Camburg Kinetik V2 Performance Billet Uniball Upper Arms (2019-2024 Silverado 1500, Sierra 1500) - CAM-210099-GRY
Our arms are meticulously designed and refined, meeting high standards. They are CNC machined from aerospace quality 6061 billet aluminum, bead blasted, anodized gun metal gray, and laser etched with our logo. We use a larger FK 1.25" uniball with a PTFE liner for increased strength and mis-alignment, allowing for maximum wheel travel. Made in the USA, our arms are superior to cheaper imports. The uniball is adapted to the spindle/knuckle using model specific spacers machined from heat-treated stainless steel. No drilling or modifications are needed. The 1.25" uniball allows for a low profile press-on cap to resist the elements. We use larger and stronger FK 7/8" chromoly heim joints for additional camber and caster adjustment, eliminating flexing/deflection under hard use and braking. AN/Mil-spec hardware, including a single pinch bolt and secondary jam nut, ensures secure heim joint usage. Our V2 design increases usable wheel travel, corrects camber and caster, and eliminates weak factory ball-joints. All necessary hardware is included for installation. Our arms are designed for 1-3" of lift and are not compatible with vehicles equipped with electronic adaptive ride control suspension systems.
Corrects camber and caster
Eliminates weak factory ball-joints
Increases usable wheel travel
When lifting your truck, the stock upper arms become the limiting factor and holds back your suspensions performance. Our Camburg upper arms address these issues and more. Replacing the stock ball-joint with a uniball bearing we’re able to gain wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We build more caster and change the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling. Using the latest CAD/CAM engineering software we design these arms to the strictest standards using our FARO laser scan arm to model the OEM parts and frames. Manufactured in-house, we have the tubes CNC laser cut and bent, then are MIG welded in precision fixtures before sending out to be sandblasted and powder-coated. Our in-house CNC machine shop makes all the machined parts including the uniball mis-alignment spacers from heat-treated stainless steel. We pride ourselves in producing the best parts available under our own roof and control.
