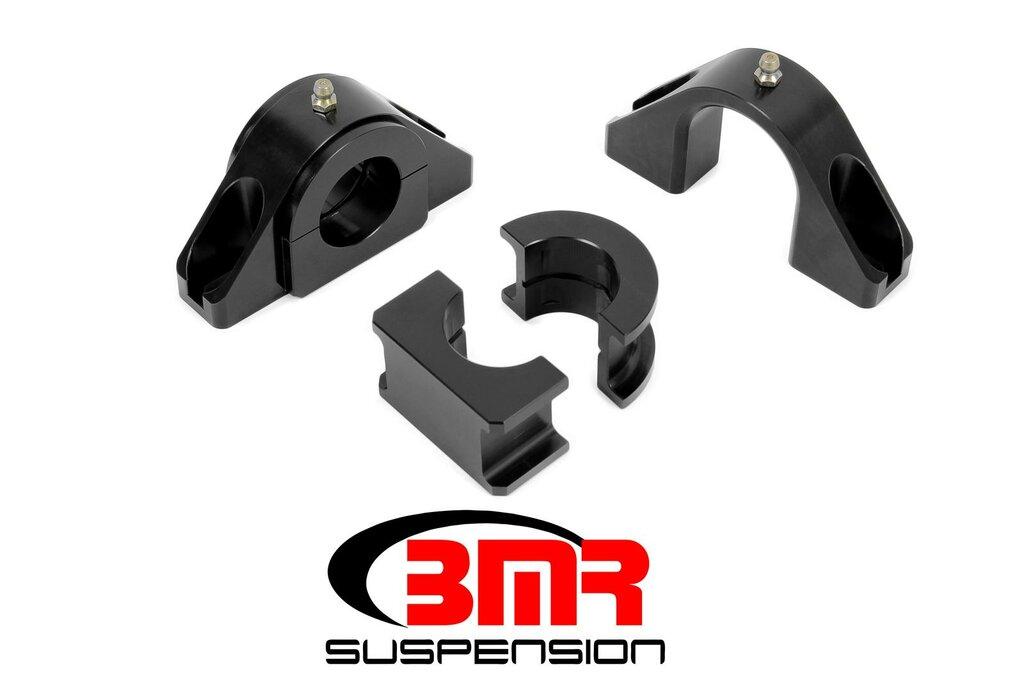

If you’ve installed one of BMR Suspension’s 1 3/8-inch sway bars or Xtreme Anti Roll Bars and want to improve its level of body roll control, upgrade the sway bar mounts and bushings with a Billet Aluminum/Delrin Sway Bar Mounting Kit from BMR Suspension. Most BMR sway bars come with formed steel sway bar mounts with polyurethane bushings. This gives you an effective sway bar mounting solution that works great for limiting the amount of wasted sway bar rate due to sway bar bushing deflection. Under extreme loads, slight bushing deflection can absorbs sway bar rate and allow for slight amounts of body roll. BMR designed its Billet Aluminum/Delrin Sway Bar Mounting Kit to solidly mount the sway bar to the chassis eliminating any bushing deflection. Eliminating this deflection will reduce body roll and increase handling and launch consistency.
Designed for max-effort street performance, drag race, and handling applications, BMR's Billet Aluminum/Delrin Sway Bar Mounting Kit replaces the formed saddle and poly bushing assembly with CNC-machined billet aluminum saddles and CNC-machined Delrin bushings. This design eliminates the small amount of deflection seen in the formed saddles and poly bushings when extreme loads are applied. The saddles and Delrin bushings are CNC-machined, giving you a perfect fit, and the strength to withstand any form of performance driving. BMR’s Delrin bushings are also greasable for smooth operation and long life.
BMR Suspension’s SMK013 Sway Bar Mount Kit is available in black with zinc-coated hardware. Installation time is about 1 hour. Proudly made in the U.S.A.!
- Designed for max-effort street performance, drag race, and handling applications
- Replaces any 1 3/8-inch sway bar bushing and saddle (See images for bolt hole spacing)
- Internally fluted for efficient lubrication
- Machined Delrin bushings
- CNC-machined billet aluminum sway bar saddles
- Grease fittings with internal grease passages
- Decreases body roll
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.
