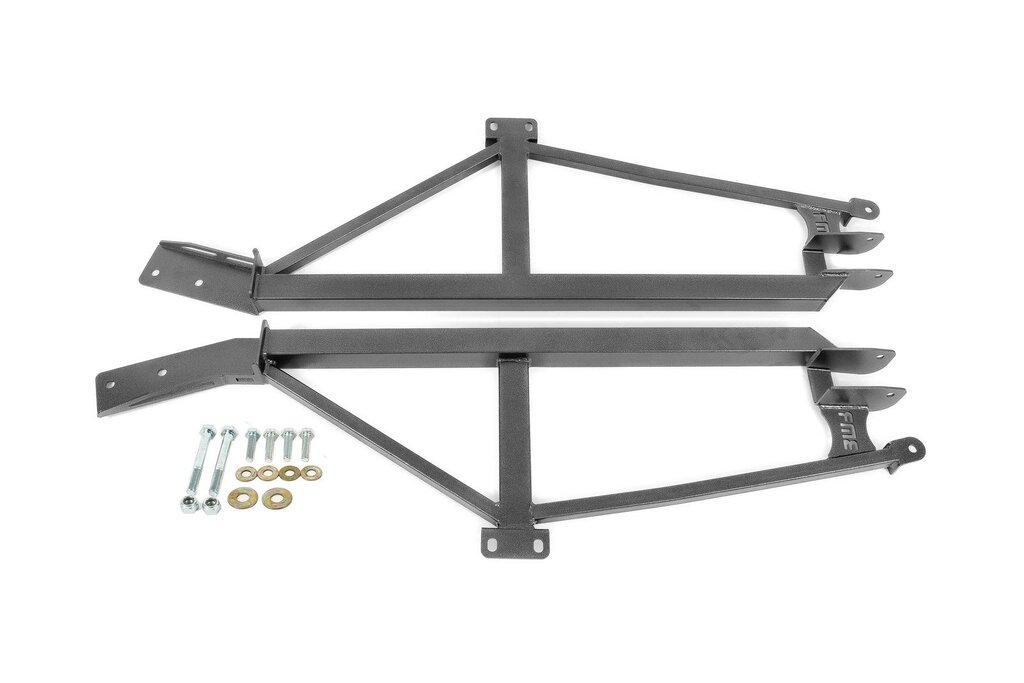

Reduce chassis flex and increase handling and performance on your 4th Gen GM F-body with four-point weld-in sub-frame connectors from BMR Suspension. BMR’s F-body sub-frame connectors are manufactured from a mix of heavy-duty 2- x 2-inch, 0.083-inch wall and 1- x 1-inch, 0.083-inch wall square steel tubing, with laser-cut CNC-formed 3/16-inch steel plate. This design add loads of strength in all the right places. These four-point sub-frame connectors are engineered to considerably strengthen the chassis. The SFC020s connect the front and rear sub-frames, but also tie into the rear lower control arm mounts, as well as the transmission tunnel brace.
BMR has designed the SFC020 for the street performance, drag race, and handling applications. This four-point design is far superior to other subframe connectors on the market. The SFC020s solidly link the front and rear subframe, where others only connect the front subframe to the lower control arm mount. This does little to keep the rear of the chassis from flexing. Connecting both sub-frames and the lower control arm mount and transmission tunnel brace, these sub-frame connectors are the ultimate in chassis stiffening for F-bodies. BMR’s SFC020 subframe connectors are designed to be welded into your F-body, making them a permanent part of the chassis. When performance is a must, rely on BMR Suspension!
BMR Suspension’s SFC020 are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 3-4 hours. Proudly made in the U.S.A.
- Fits Fourth Gen GM F-bodies
- Dramatically increases chassis stiffness and improves handling
- Manufactured from heavy-duty 2- x 2-inch, 0.083-inch wall and 1- x 1-inch, 0.083-inch wall square steel tubing
- Uses 3/16-inch laser-cut, CNC-formed steel plate
- Weld-in design
- Four attachment points for superior chassis stiffening
- Fully MIG-welded
- Does not fit convertible models
- Designed for street performance, drag race, and handling applications
- Proudly designed and made in the U.S.A.
