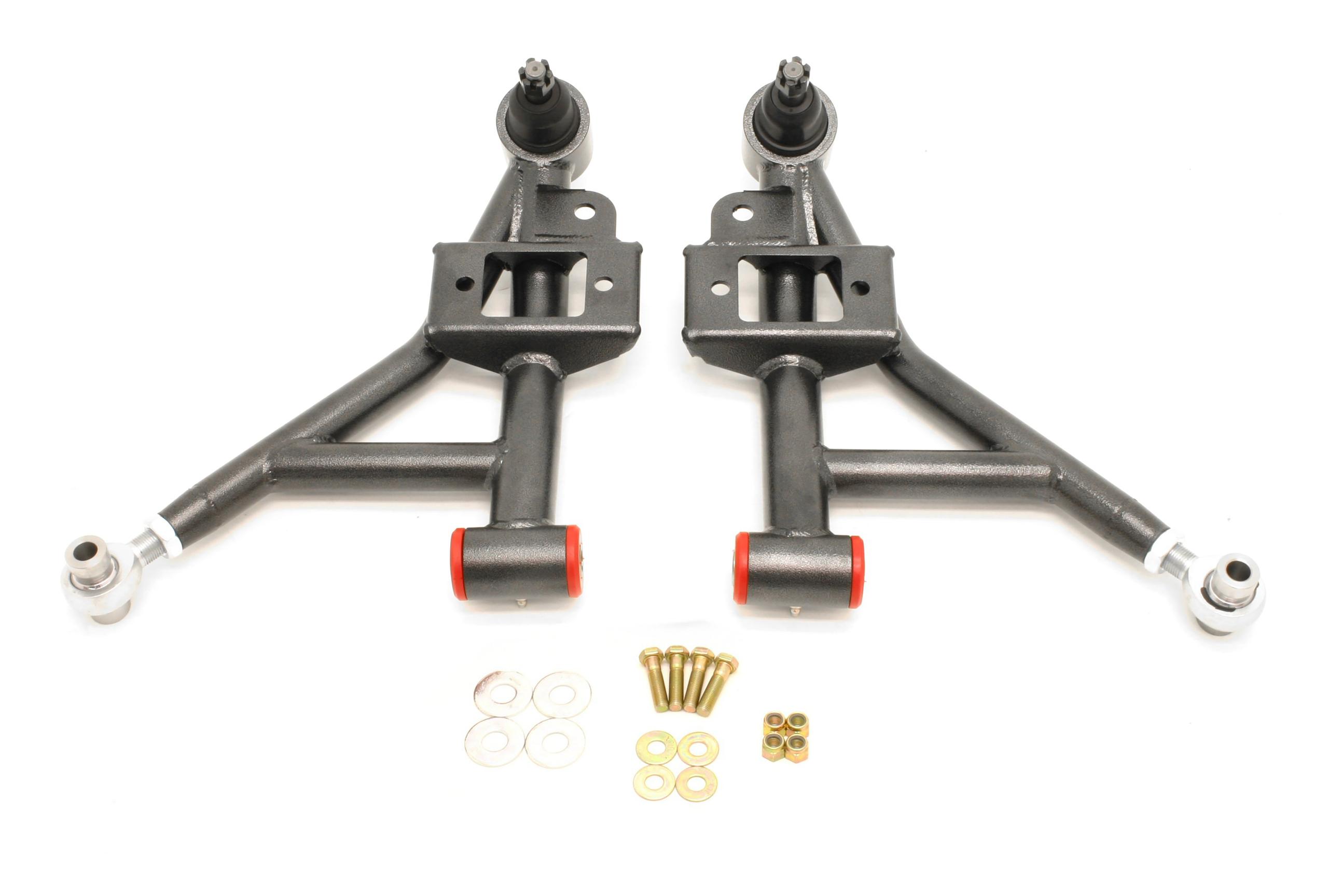

A-arms are one of the most important, yet overlooked suspension components. They are the direct link between the front wheels and the chassis. Any deflection causes a change in alignment, which results in poor performance and driving feel. Fabricated from heavy-duty 1.25-inch, 0.095-inch wall DOM tubing and 1 5/8-inch, 0.120-inch wall tubing with laser-cut, CNC-formed plate steel plate, deflection is eliminated with A-arms from BMR Suspension. BMR’s AA020 Lower A-arms are equipped with greasable heavy-duty ball joints, zinc-plated, X-series, heat-treated, chrome-moly, self-lubricating, Teflon-lined rod ends and greasable, 95-durometer polyurethane bushings. Polyurethane bushings add a solid, more responsive feel over the stock rubber bushings. BMR’s bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings. The combination of rod ends and bushings gives you improved steering feel and responsiveness, with all the adjustability needed for any for of driving. The AA020s also features a 1-inch lower shock mount for improves shock travel on lowered Fourth Gens.
BMR’s AA020 lower A-arms eliminate A-arm deflection, greatly improving steering feel and response in normal and performance driving situations. The polyurethane bushings add strength and reduce deflection over the stock rubber bushing, while still absorbing much of the NVH. The means you get a great blend of performance and comfort. Designed for street performance, drag race, and handling, and pro-touring applications, BMR lower A-arms are engineered to give you improved geometry and increased lateral grip during cornering situations. The lower shocks mounts allow for full shock travel with lowered Fourth Gens.
BMR Suspension AA020 Adjustable Lower A-arms are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is 3-4 hours. Proudly made in the U.S.A.
Control arm hardware kit RH013 (Includes upper and lower control arm hardware - Highly Recommended) also available.
Features
- Fits 1993-2002 GM F-Body
- Eliminates upper A-arm deflection
- 1-inch lower shock mount
- Adjustable design
- Improves steering feel and response for normal and performance driving
- Laser-cut, CNC-formed plate steel plates
- Fixture welded for precise fit
- Greasable, 95-durometer polyurethane bushings
- Zinc-plated, X-series, heat-treated, chrome-moly, self-lubricating, Teflon-lined rod ends
- Pre-assembled with new heavy-duty ball joints and polyurethane bumpstops
- Durable powdercoat finish
- Proudly made in the U.S.A.
Applications
- 1993 - 2002 Chevrolet Camaro
- 1993 - 2002 Pontiac Firebird
