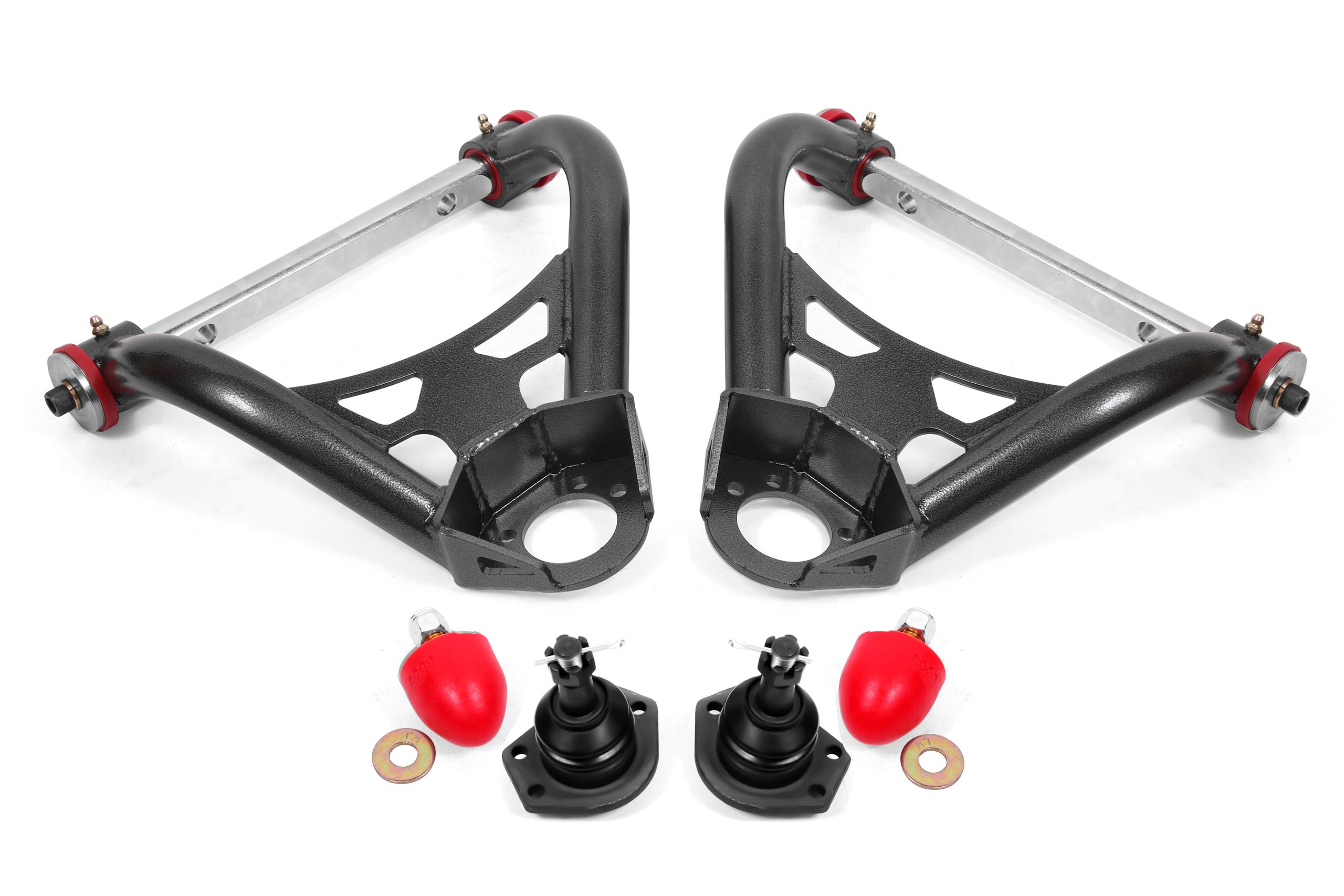

A-arms are one of the most important, yet overlooked suspension components. They are the direct link between the front wheels and the chassis. Any deflection causes a change in alignment, which results in poor performance and driving feel. Fabricated from heavy-duty 1.25-inch, 0.095-inch wall DOM tubing with laser-cut, CNC-formed plate steel braces for extra strength, deflection is eliminated with A-arms from BMR Suspension. BMR’s AA017 Upper A-arms are equipped with CNC machined, nickel-plated, dual-offset cross-shafts with heavy-duty stainless bushing retainers. They come pre-assembled with new polyurethane bump stops, and new upper ball joints are included. Greasable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMR’s bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.
BMR’s AA017 Upper A-arms eliminate upper A-arm deflection, greatly improving steering feel and response in normal and performance driving situations. The compact design provides additional header clearance over stock A-arms, allowing you to run larger primary tubes for high-horsepower applications. The polyurethane bushings add strength and reduce deflection over the stock rubber bushing, while still absorbing much of the NVH. The means you get a great blend of performance and comfort. Designed for street performance, drag race, and handling, and pro-touring applications, BMR upper A-arms are engineered to provide 2 additional degrees of positive caster for increased high-speed stability. Combine with BMR Lower A-arms, and you get 4 additional degrees of positive caster (2 degree from the uppers and 2 degrees from the lowers), providing up to 6 degrees of total positive caster over stock. This gives you improved geometry and increased lateral grip during cornering situations. The upper arms also have revised cross shaft geometry and shorter overall length, requiring less shim stack to achieve negative camber on lowered cars, or race and pro touring vehicles with aggressive alignments. The combination of cross shaft design and the shortened overall A-arm length gives you a improved camber curve through the front suspension’s range of motion.
BMR Suspension AA017 Non-Adjustable Upper A-arms are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is 3-4 hours. Proudly made in the U.S.A.
Control arm hardware kit RH006 (Includes upper and lower control arm hardware - Highly Recommended) also available.
Features
- Fits 1964-1972 GM A-Body
- Eliminates upper A-arm deflection
- Improves steering feel and response for normal and performance driving
- Increased high-speed stability
- Laser-cut, CNC-formed plate steel braces for extra strength
- Fixture welded for precise fit
- Dual-offset cross-shafts for minimizing shim stack
- Requires less shim stack for negative camber than OE arms
- Internally fluted, high durometer polyurethane bushings
- Two additional degrees of positive caster built into A-arms
- Adds additional headers clearance
- Pre-assembled with new polyurethane bumpstops
- Includes new upper ball joints
- Durable powdercoat finish
- Proudly made in the U.S.A.
Applications
- 1964 - 1972 Buick Grand Sport
- 1964 - 1972 Buick Skylark
- 1964 - 1972 Chevy El Camino
- 1964 - 1972 Chevy Chevelle
- 1964 - 1972 Chevy Malibu
- 1964 - 1972 Chevy Monte Carlo
- 1964 - 1972 Oldsmobile Cutlass
- 1964 - 1972 Oldsmobile 442
- 1964 - 1972 Pontiac LeMans
- 1964 - 1972 Pontiac GTO
