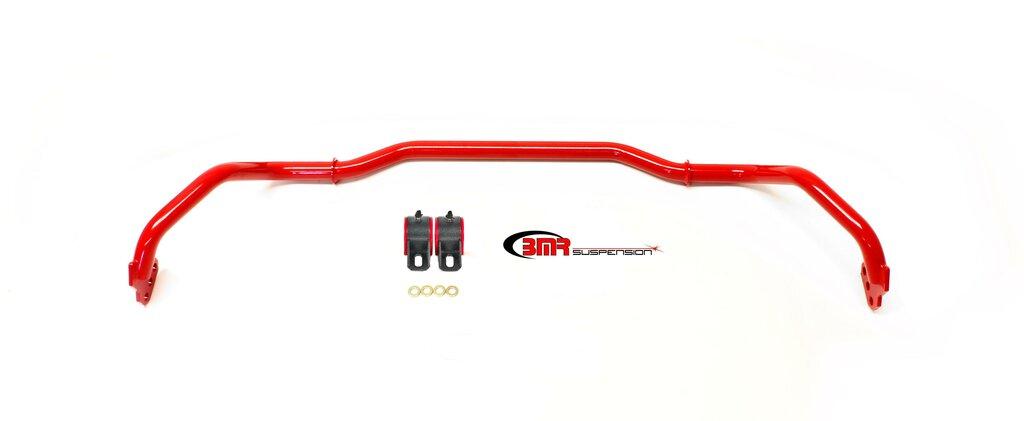

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspension’s SB038 front sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 29mm DOM tubing, the SB038 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. Thrust washers are welded to the bar to locate the sway bar bushing mounts. This is critical as it properly locates the sway bar and prevents lateral movement during hard cornering maneuvers. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection. The sway bar is 3-way adjustable to tune the amount of torsional spring rate and to determine the handling characteristics (understeer/oversteer) of the vehicle.
BMR Suspension designed the SB038 sway bar for street performance, autocross, and road race applications. The large adjustable sway bar’s three positions give you the versatility to drive to and from the road course or autocross and still out handle the competition with the same sway bar. The SB038 front sway bar gives you a 98%-214% increase in sway bar rate (depending on year and model). These rate increases and adjustability allow you to fine-tune the handling characteristics of your Camaro so you can drive harder through corners with minimal body roll. The hollow design allows for loads of strength in the lightest package possible. This means increased performance with no sacrifices. The SB038 attaches to your Camaro with 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. This allows for more sway bar control, and more control equals better handling. When performance is a must, rely on BMR Suspension!
BMR Suspension’s SB038 sway bars are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.!
FITMENT NOTE: SB038 IS DESIGNED AS A DIRECT REPLACEMENT UPGRADE FOR FE4 FRONT SUSPENSION SYSTEMS, WHICH HAVE LARGER 12MM STUD FRONT SWAY BAR END LINKS AND ELECTRIC STEERING. WILL ALSO FIT ON 2010+ SS OR V6 (WITH HYDRAULIC STEERING RACK) IF USED WITH ELK011 FRONT END LINKS (WILL REQUIRE UPPER END LINK MOUNT TAB HOLE TO BE ENLARGED ON FRONT STRUTS TO ACCOMMODATE LARGER 12MM STUD).
Hole 1 (Boot-Leg end of bracket)
98% stiffer than OE bar
Hole 2 (Center)
146% stiffer than OE bar
Hole 3 (Flat end of bracket)
214% stiffer than OE bar
- Fits 2013-2015 Camaro
- Designed for street performance, autocross, and road race applications
- Dramatically reduces body roll
- 98%-214% increase in sway bar rate (depending on year and model)
- Cold formed to better resist torsional fatigue
- Manufactured from 29mm heavy-wall DOM tubing for increased strength
- Three-way adjustable for street and track use
- Adjustability allows for fine-tuning of suspension
- 88-durometer, greasable polyurethane bushings
- Zinc-plated inner sleeves
- Durable powdercoat finish
- 1-hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.
