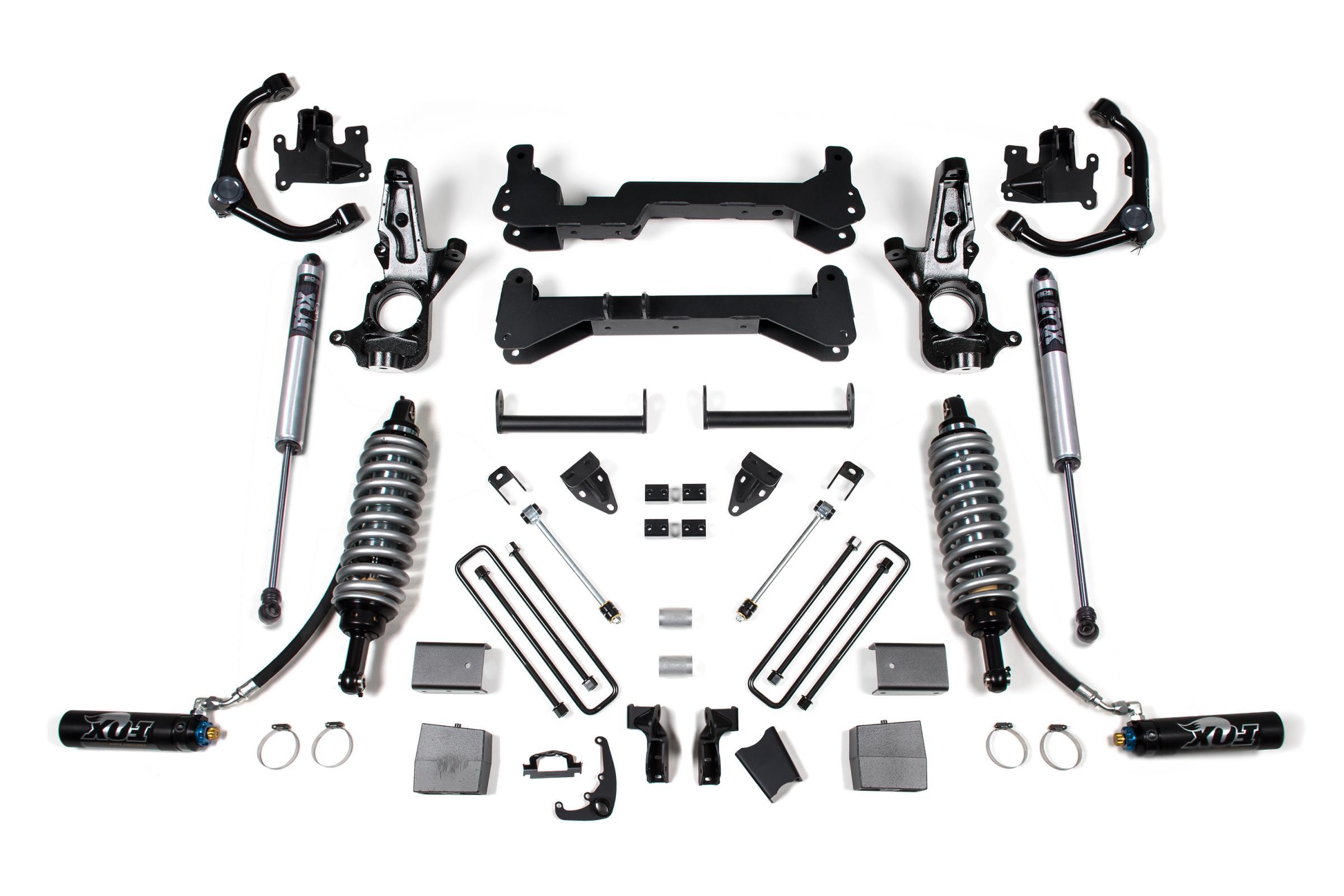

BDS Suspension 7 Inch Lift Kit FOX 2.5 Coil-Over Conversion Silverado/Sierra 2500HD 01-10 2WD Carrier Below Crossmember Fox 2.5 Performance Shocks - BDS1818FDSC
BDS raises the bar with the 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 2WD truck with a 7-inch suspension lift kit with FOX 2.5 Coil-Over conversion. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes FOX 2.5 coil-over shocks, heavy duty tubular upper control arms, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles.
These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, and precision tuned FOX 2.0 Performance Series shocks.
FOX 2.5 Coil-Overs
FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 Inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 7 Inch
- Rear Lift Height: 5 Inch
- Torsion Bar tool required to load/unload the torsion bars
- Some welding required
- Requires frame bracket modification and differential mount modification
- Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4 Inch to 8 Inch of lift
- 20 Inch wheels with 5 Inch to 5.75 Inch backspacing recommended to reduce trimming
- Not Recommended for Suburban / Yukon models with AutoTrac Transfer Case
- Does NOT work with rear Autoride equipped SUV's
- FOX 2.5 coil-overs offer improved damper performance over stock
- Dual Speed Compression Adjust Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
- Performance UCAs increase strength and allow for more suspension travel
- High Clearance design w/ no torsion bar drop maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Carrier Bearing Option - Carrier Below Crossmember
The '01-09 2WD HD was available with two different carrier bearing crossmembers. If the carrier bearing is mounted above the crossmember then the base kit will work. If the carrier bearing is mounted below the crossmember then this selection must be made.
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.5/5.75
Kit Components:
- Includes one BDS011507, GM 3/4 ton HD 5in Rear Box Kit, UPC Code 658848611904
- Includes one BDS021620, 01-10 GM HD (1of3), UPC Code 658848614844
- Includes one BDS021627, 01-10 Chevy 2500HD 2wd Box Kit (2of3), UPC Code 658848614868
- Includes one BDS021628, 01-10 Chevy 2500HD 2wd Box Kit (3of3), UPC Code 658848614875
- Includes one BDS121252, 01-10 HD UCA Kit, UPC Code 658848618934
- Includes one BDS121612, 2011-2024 GM 2500/3500HD Carrier Bearing Drop, UPC Code 658848619092
- Includes one BDS121654, 01-10 HD Coilover Mounting Kit, UPC Code 658848619245
- Includes one FOX88406188, Kit: BDS 01-10 GM 2500/3500 HD Front Coilover, 2.5 Series, R/R 6.5 Inch Lift, Dual Speed Compression Adjust, UPC Code 814897013704
- Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
