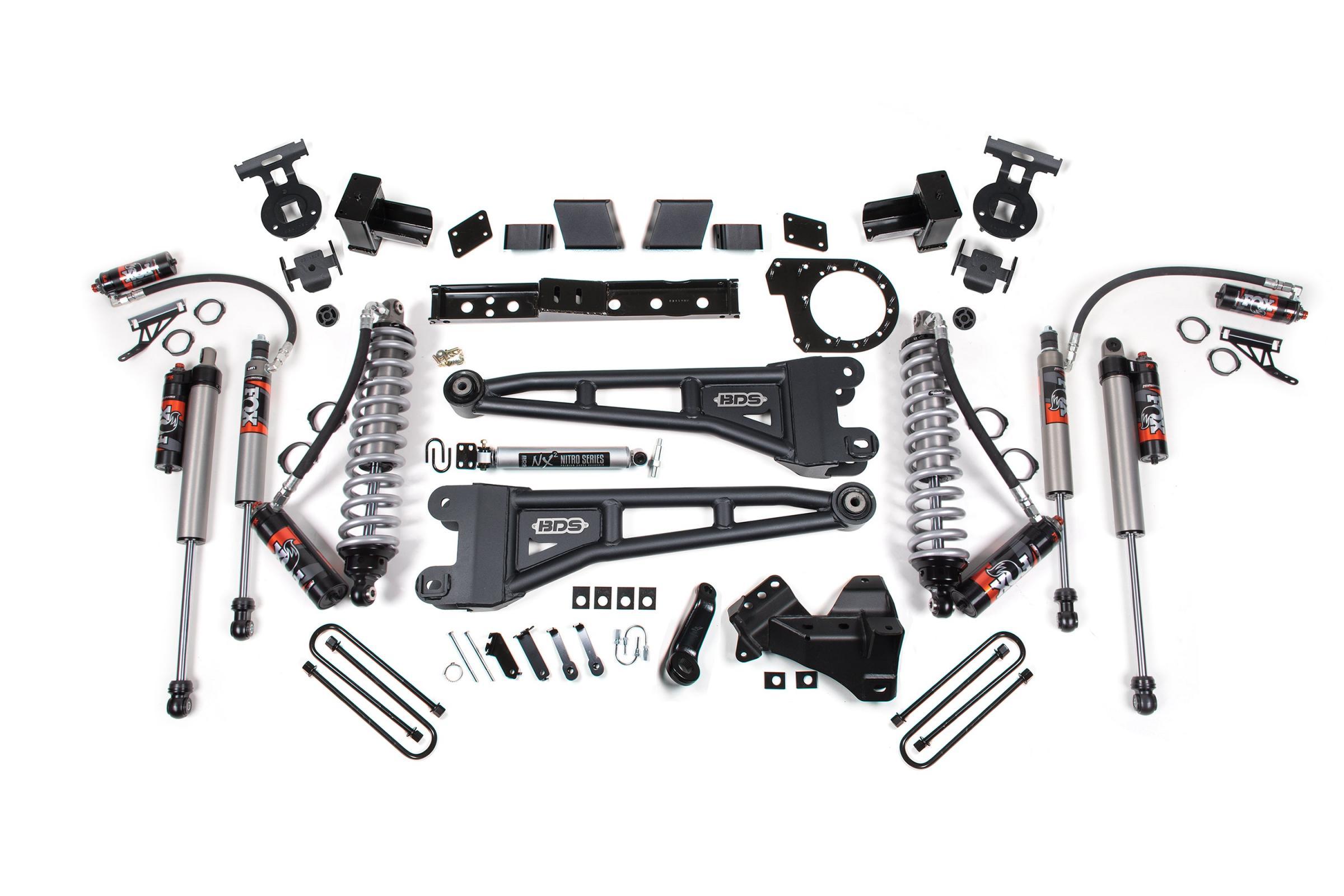

BDS Suspension 6 Inch Lift Kit w/ Radius Arm FOX 2.5 Performance Elite Coil-Over Conversion Ford F350 Super Duty DRW 20-22 4WD Diesel Fox 2.5 Performance Elite - BDS1982FPE
Built to Outperform, take your dual rear wheel Ford F350 Super Duty diesel truck to the next level with this 6-inch radius arm lift kit with FOX 2.5 Performance Elite Coil-over shocks from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your dually truck up right with clearance for up to 38 Inch Tires.
Up front the lift kit includes FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and secondary FOX 2.0 shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX 2.0 Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
- Front Lift Method: Coil-Over
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 6 Inch
- Rear Lift Height: 4 Inch
- Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final right height will be the same as standard models.
- Dually Models Only
- The transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
- 38 x 13.50 Tires may require minor trimming.
- The indexing ring is not designed for manual shift transfer case models. Modification of the shift cable mount will be required.
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments
Auxiliary Front and Rear Shock Option
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Tire Size: 38 x 13.5 Wheel Diameter: 20 x 10 Back Spacing: 5
Kit Components:
- Includes one BDS013526, 2017-2020 F350 Dually 5 Inch Block Kit, UPC Code 658848613632
- Includes one BDS013603, 2020-2022 F250/F350 6 Inch RA Front Box Suspension System, UPC Code 658848613724
- Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
- Includes one BDS123605, 2017-2022 SD T-Case Indexing Kit- Diesel, UPC Code 711745604377
- Includes one BDS123613, 2017-2024 Super Duty Coil-over Mount Kit, UPC Code 711745604407
- Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
- Includes one FOX88326099, Kit: 2017-2023 Ford SD Front, 2.5 Truck Fox Performance Elite Series, R/R, 4-6 Inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326100, Kit: 2017-2024 Ford SD Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 Inch Lift, Dual Speed Compression Adjust
- Includes one FOX88406428, Kit: BDS 05-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 6 Inch Lift, Dual Speed Compression Adjust
