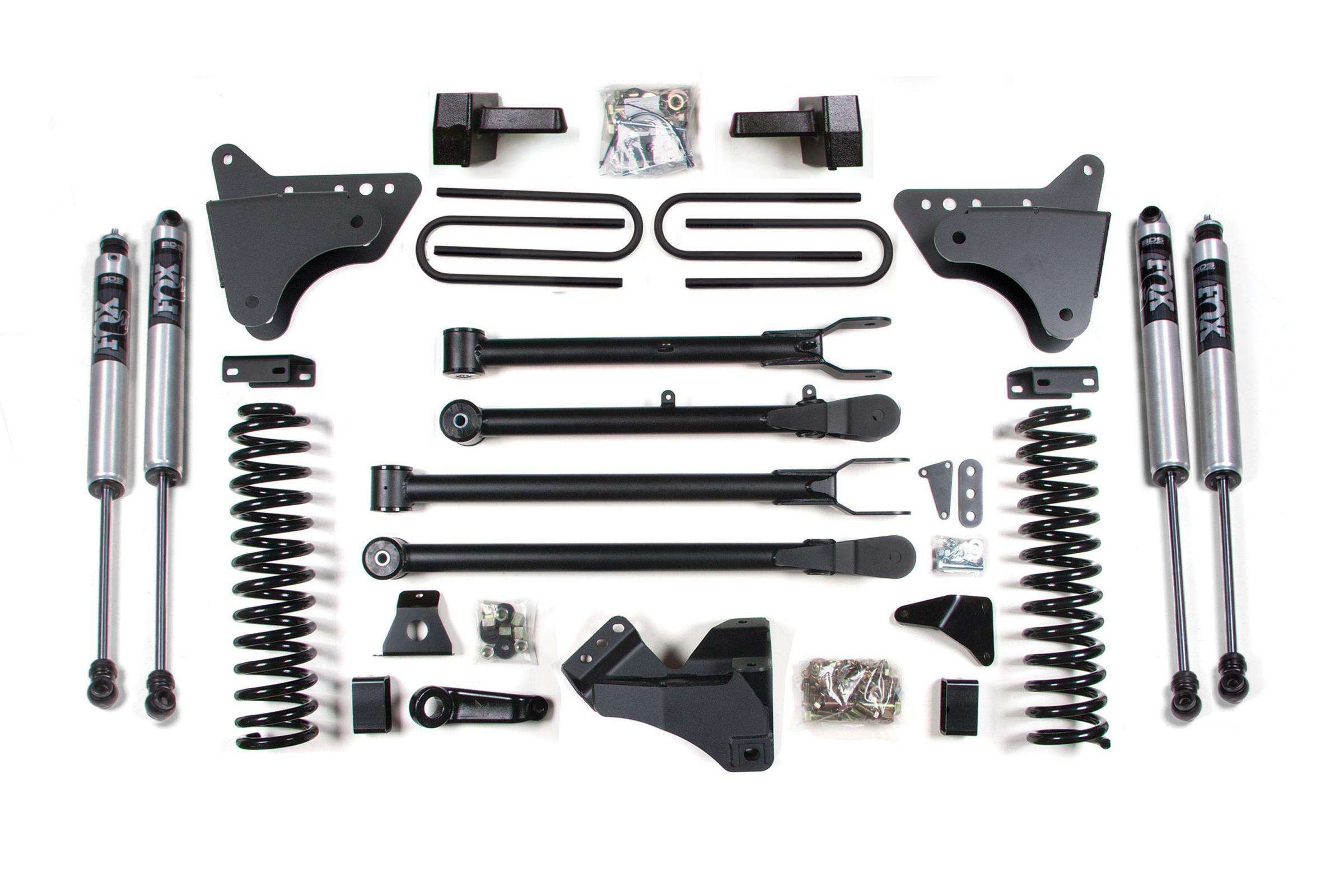

BDS Suspension 6 Inch Lift Kit w/ 4-Link Ford F250/F350 Super Duty 08-10 4WD Gas Block Without Factory Overload FOX 2.0 Performance (2008-2010 F-350 Super Duty, F-250 Super Duty) - BDS564FS
Take your 2008-2010 Ford Super Duty F250 and F350 gas truck to the next level with this 6-inch lift kit plus 4-link conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.
In the rear the base kit utilizes a high strength lift blocks, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
- Front Lift Method: Coil Spring
- Rear Lift Method: Leaf Spring
- Shocks Included: Yes
- Front Lift Height: 6 inch
- Rear Lift Height: 6 inch
- Removal of the factory block is required.
- Installation of the rear block kit will result in a inchpre-runner inch look with the rear of the vehicle 2 inch lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
- These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
- If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
- Although extremely rare, front driveline vibration may occur.
- Front exhaust modification may be required to clear the front driveshaft on gas models.
- U-bolts will not fit dually models.
- Dropped pitman arm will not fit 10 lug wide track F350 models.
- Easy, 100 percent Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Rear Lift Option Block Kit without Factory Overload
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Kit Components:
- Includes one BDS013010, 05 Ford F250/350 4-link Kit (1of2), UPC Code 658848612994
- Includes one BDS013519, 2005-up Ford F250/F350 5in Rear Block, UPC Code 658848613625
- Includes one BDS013613, 08 Ford F250/350 6 Inch 4-link Bx Kt (2of2), UPC Code 658848613816
- Includes one BDS033612, 2005-2016 Ford F250/F350 6 Inch (Gas) Coil Kit, UPC Code 658848616596
- Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
- Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
- Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
