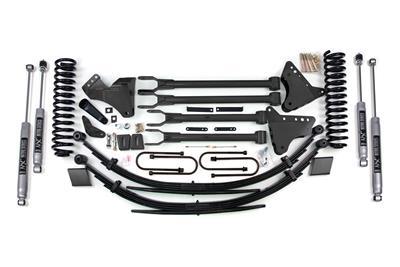

BDS Suspension 6 Inch Lift Kit w/ 4-Link Ford F250/F350 Super Duty 05-07 4WD Diesel 5 Inch Block Without Overload NX2 Nitro (2005-2007 F-250 Super Duty, F-350 Super Duty) - BDS351H
Take your 2005-2007 Ford Super Duty F250 and F350 diesel truck to the next level with this 6-inch lift kit plus 4-link conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.
In the rear the base kit utilizes a high strength lift blocks, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 6 inch
- Rear Lift Height: 5 inch
- These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
- The kit comes with a single steering stabilizer in the kit, but you can upgrade to a dual system in the customize your kit section.
- If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
- Do not install the 4 inch rear block kit on vehicles equipped with a factory 3-7/8 inch rear block. Only use rear spring option on these vehicles.
- Easy, 100 percent Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Rear Lift Options without Overload
Please note - the factory leaf packs were made with or without a top mounted overload spring. Please inspect your vehicle before ordering.
5 Inch Block Kit
- Blocks are made from cast iron for strength.
- Tapered for correct pinion angle.
- Steel pin and hole are offset to restore axle position.
Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5
Shock Option NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Kit Components:
- Includes one BDS013010, 05 Ford F250/350 4-link Kit (1of2), UPC Code 658848612994
- Includes one BDS013011, 05 Ford F250/350 4-link Kit (2of2), UPC Code 658848613007
- Includes one BDS013419, 2005-2007 Ford F250/F350 4 Inch Rear Box w/o Overload, UPC Code 658848613472
- Includes one BDS033611, 2005-2022 Ford F250/F350 6 inch (Diesel) Coil Kit, UPC Code 658848616589
- Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
- Includes two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609600
- Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693
