BDS Suspension 6 Inch Lift Kit Ford F250/F350 Super Duty 99-04 4WD Radius U Bolt With block Kit with Factory Overload W/ Fox 2.0 Performance Shocks (1999-2004 F-250 Super Duty, F-350 Super Duty) - BDS1301FS
Take your 1999-2004 Ford F250 and F350 Super Duty truck to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch tires.
Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks. Optional replacement full leaf spring packs for an improved ride on or off-road.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features & Benefits
- Easy, 100 percent Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
- Cast steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
- (Trimming may be required)
- 36 x 12.5 with 16 x 10 and 4 in. Backspace
Front U-Bolt Type
This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case.
The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar.
- Front Lift Method : Leaf Spring
- Rear Lift Method : Block & Add-A-Leaf
- Shocks Included : Yes
- Front Lift Height : 6 inch
- Rear Lift Height : 5 inch
Rear Lift Option
Block Kit
- Block Kit With Factory Overload
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Notes: These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast u-bolt plate before ordering.
Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
The Superduty came from the factory with a 2 inch, 3 inch, or 4 inch rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
Will not fit dually applications.
If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit in the options section.
The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.

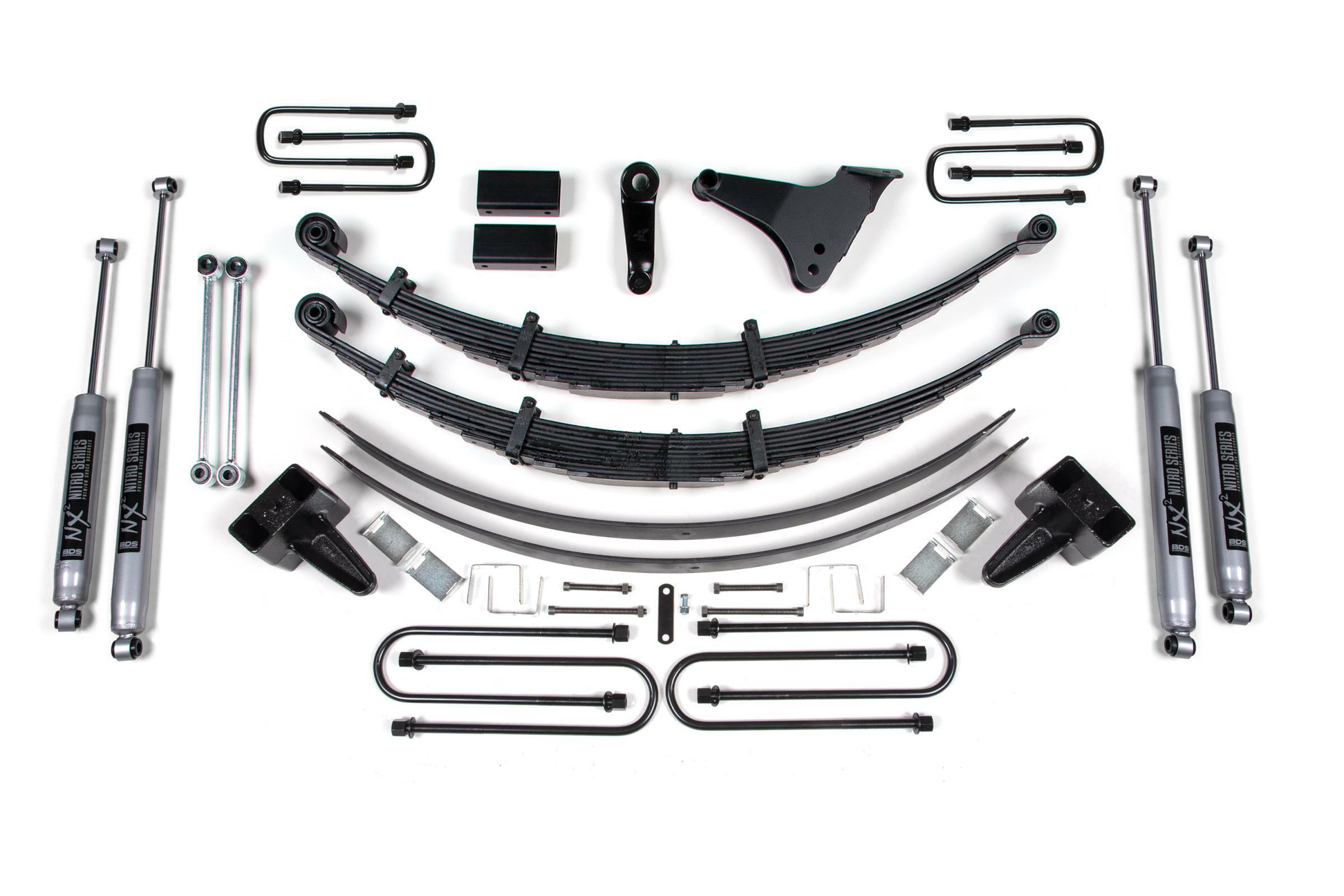

Kit Components:
- Includes two BDS003602, Ford F250/350 6 Inch Front Spring, UPC Code 658848611362
- Includes one BDS013006, 00-01 Ford F250/350 6&8in Front Box Kit, UPC Code 658848612963
- Includes one BDS013328, 1999-2007 Ford F250/F350 Rear Box Kit w/ Overload, UPC Code 658848613298
- Includes one BDS113218, 2005-2007 Ford F250/F350 Add-a-leaf, UPC Code 658848618729
- Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
- Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
