BDS Suspension 6 Inch Lift Kit Ford F150/Bronco 80-96 4WD Leaf Springs NX2 Nitro - BDS368H
Take your 1980-1996 Ford Bronco 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm for steering correction and precision tuned NX2 nitrogen charged shocks.
In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Pro-Ride Coil Springs
A pair of full-length, vehicle-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 6 inch
- Rear Lift Height: 4.5 inch
- Front end alignment required. Alignment cams may be required.
- #123401 recommended if equipped with a front anti-sway bar. Ford produced 3 different styles of sway bar systems
between 1980 and 1996. In extremely rare cases, modification may be required.
- #003208, #003408 and #003608 come with OE style bushings installed.
- Add two front auxiliary shocks if the vehicle is equipped with factory dual mounts.
- Extended brake lines required.
- Easy, Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty steel drop brackets for proper suspension geometry
- Cast steel blocks provide level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for better control
Rear Lift Option
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.

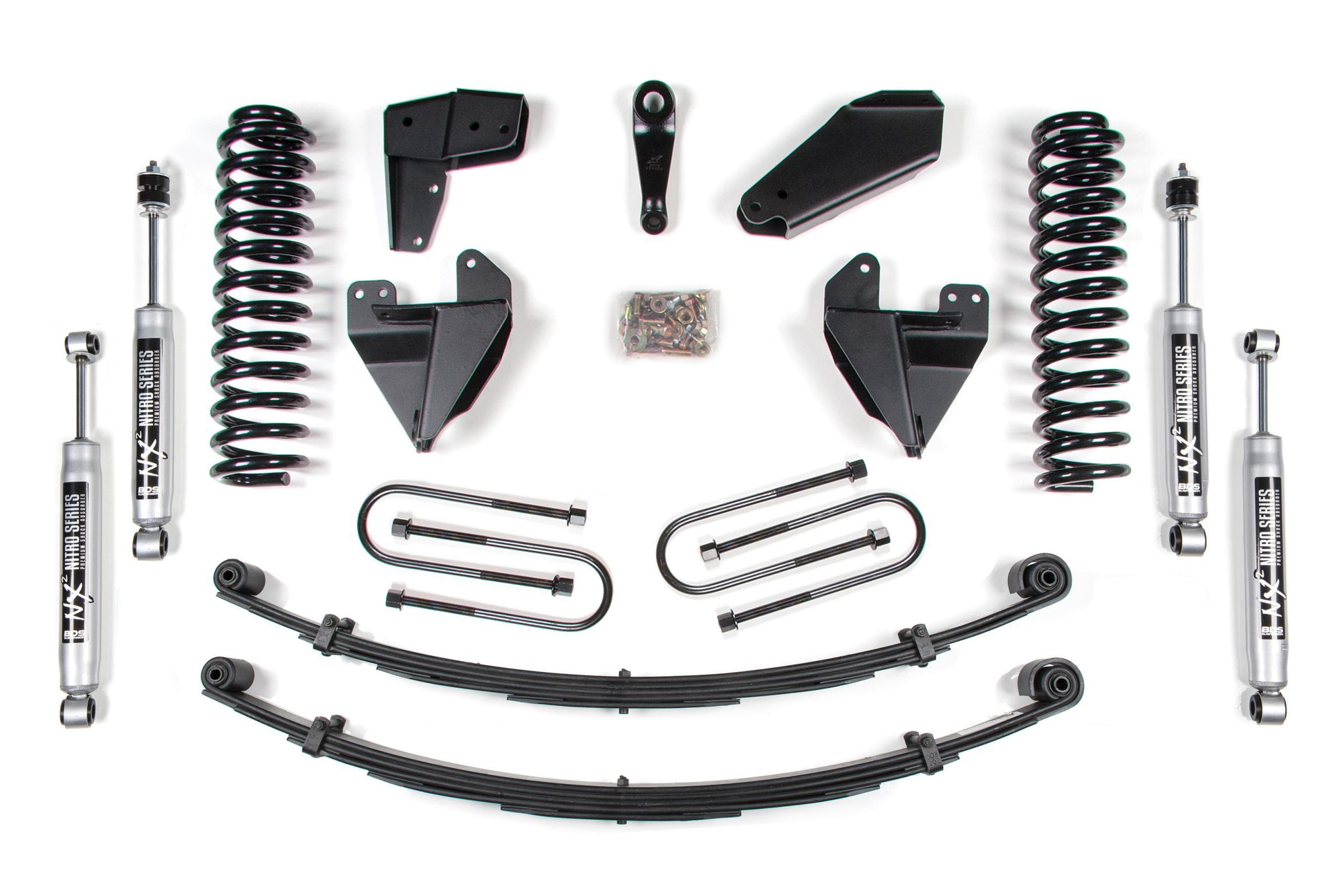

Kit Components:
- Includes two BDS003408, 73-96 Ford F150 4 Inch Rear Spring 3in wide, UPC Code 658848611355
- Includes one BDS013001, 80-96 Ford F150 Front Box Kit, UPC Code 658848612918
- Includes one BDS033601, 80-96 Ford F150/Bronco 6 Inch Coil Kit, UPC Code 658848616541
- Includes two BDS85650, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609457
- Includes two BDS85820, Shock- 22.90 x 13.90 x 2-3/8 - S1/EB1, UPC Code 711745609853
- Includes four UBT4051, 9/16 x 3-1/4 x 10 Round U-bolt, UPC Code 711745613126
