BDS Suspension 5 Inch Lift Kit Dodge Ram 2500/3500 00-02 4WD Block Kit Without Factory Overload Fox 2.0 Performance (2000-2002 Ram 3500, Ram 2500) - BDS217FS
Improve the ride and style of your 2000-2002 Dodge RAM 2500 and 3500 4WD truck with this 5-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
BDS engineered new lower control arms that are longer than stock to rotate the axle for proper alignment and built a relocation mounting bracket to flatten out the angle of the upper control arm to maintain your factory handling characteristics.
Up front the lift kit includes Pro-Ride coil springs, all four control arms plus relocation bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar drop brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes heavy duty cast steel block and add-a-leaf combo, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 5 inch
- Rear Lift Height: 4.5 inch
- May require exhaust modification
- Dual stabilizer may be substituted for single stabilizer that comes in the kit.
- These vehicle were produced with and without a top mounted overload springs. You will need to identify which your vehicle has before ordering the rear block & add-a-leaf kit.
- Tubular short arms improve strength, handling and caster control
- Heavy duty control arm brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
Rear Lift Option Block Kit Without Factory Overload
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

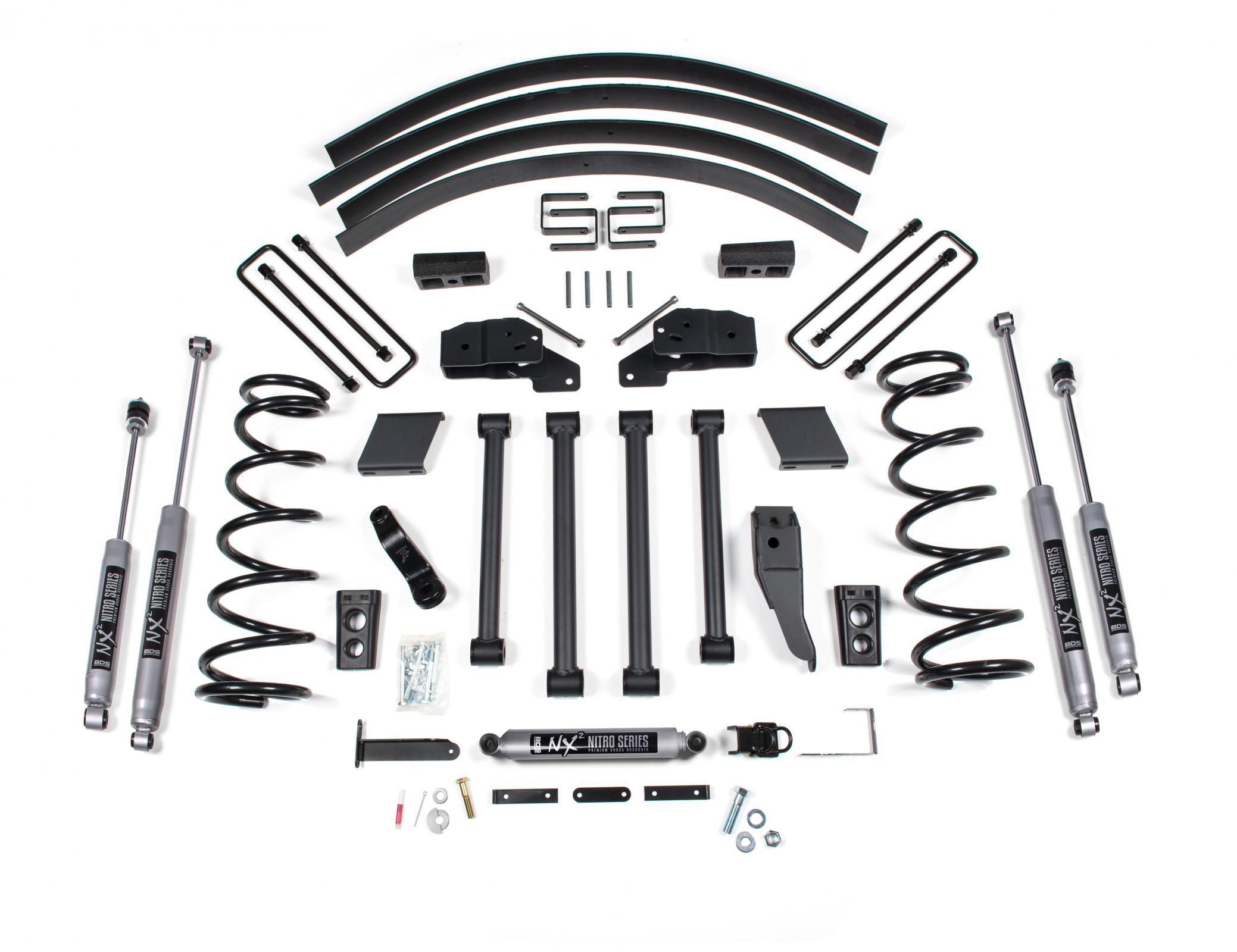

Kit Components:
- Includes one BDS012456, 94-01 Dodge 2500 Rear Kit w/o Top Mtd, UPC Code 658848612451
- Includes one BDS012504, 00-01 Dodge 1500/2500 5in Front Box Kit, UPC Code 658848612529
- Includes one BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit, UPC Code 658848616398
- Includes one BDS85406, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609051
- Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
- Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
