BDS Suspension 4 Inch Block Lift Kit Chevy/GMC 1/2 Ton Truck/SUV 73-76 4WD With NX2 Shocks (1973-1976 Jimmy, K20 Pickup, K5 Blazer) - BDS109H
Update the style of your 1973-1976 Chevy and GMC 1/2 ton truck or SUV with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.
Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.
Features & Benefits
- Easy, 100 percent Bolt-on installation
- Glideride leaf springs to provide full lift height and increased capacity
- New steering arm maintains proper steering angles for improved handling
- Cast steel blocks and add-a-leaf provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
Recommended Tires & Wheels
- (Trimming may be required)
- 35 x 12.5 with 15 x 8 and 3.5 in. Backspace
Rear Lift Option
- 4 Inch Block Kit
- Included in the base system.
- Made of cast iron for high strength.
- Designed to provide correct pinion angles.
Shock Option
- NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Details:
- Front Lift Method: Leaf Spring
- Rear Lift Method: Blocks
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 4 inch

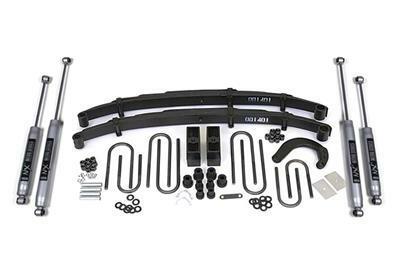

Kit Components
Includes two BDS001401, 73-91 GM 4in Front Spring, UPC Code 658848611164
Includes one BDS011002, 69-76 GM Front Box Kit (2.75 dia. front), UPC Code 658848611638
Includes one BDS011409, GM 1/2 ton 4in Rear Box Kit, UPC Code 658848611812
Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
Includes two BDS85620, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609402
Includes two BDS85639, Shock- 29.70 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609440
