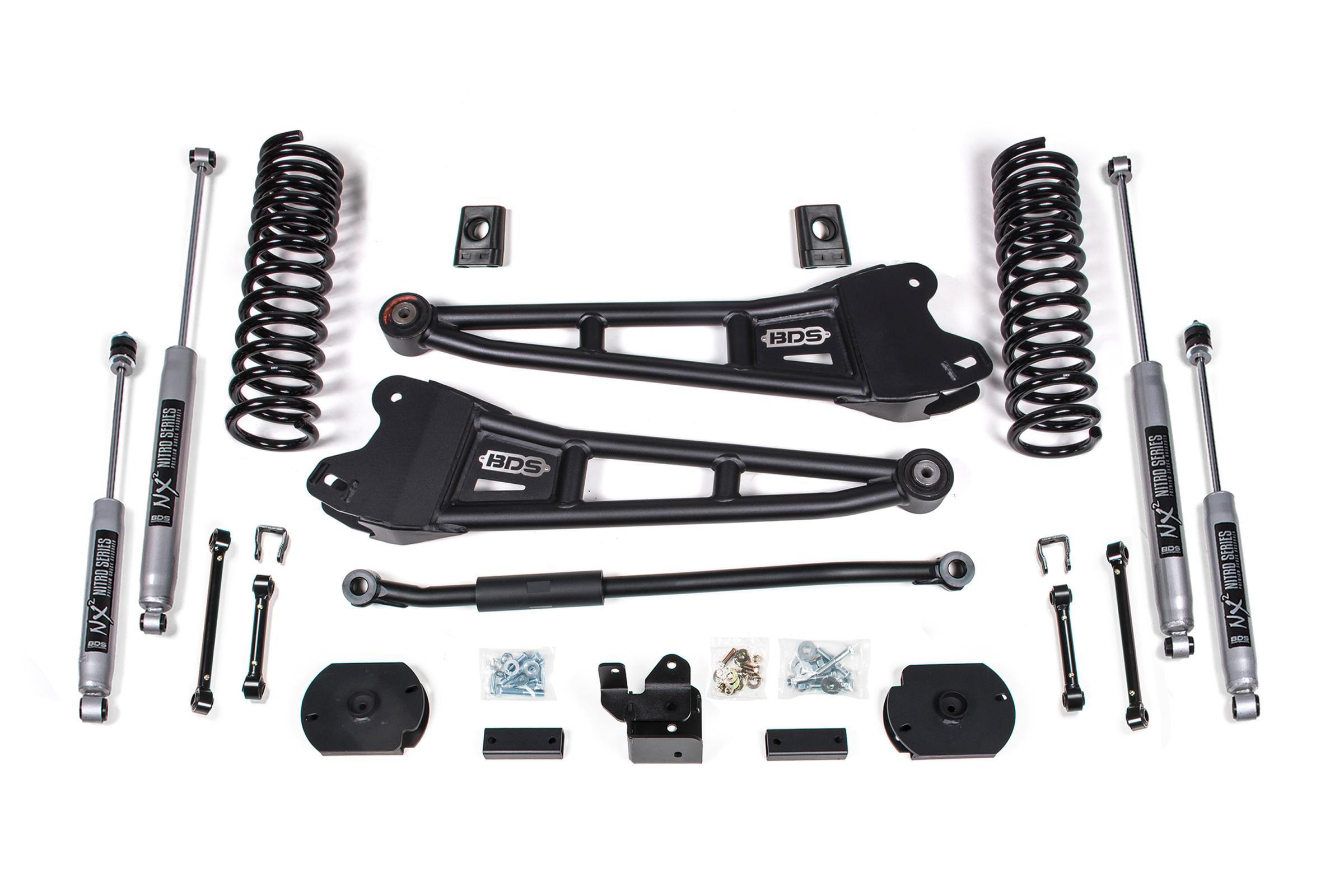

BDS Suspension 3 Inch Lift Kit w/ Radius Arm Ram 2500 19-24 4WD Diesel NX2 Nitro Shocks (2019-2024 2500) - BDS1653H
Level out and take your RAM 2500 diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated coil spacer, track bar relocation bracket, bump stops and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Spacers
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 1.25 inch
1. Designed for rear air-ride equipped models only. 2. For use on diesel models only. 3. Not for use on Power Wagon models. 4. If you experience front driveline vibration, a T-case indexing ring is available for 6-bolt and 8-bolt equipped models. Be sure to select the correct one for your application.
- Heavy duty tubular radius arms improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front adjustable track bar allows you to re-center axle
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
Shock Option NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5
Kit Components:
- Includes one BDS012128, 2014-2024 Ram 2500 1.25 inch Rear Spacer Box Kit, UPC Code 658848612031
- Includes one BDS012312, 2014-2024 Ram 2500 / 2013-2024 Ram 3500 3 inch Front Box Kit, UPC Code 711745611436
- Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
- Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
- Includes two BDS85713, Shock- 23.5 x 14.2 x 2-3/8 - S50/EB2, UPC Code 711745609532
- Includes two BDS85755, Shock- 26.15 x 15.55 x 2-3/8 - S1/EB1, UPC Code 711745609648
