BDS Suspension 2 Inch Lift Kit FOX 2.5 Coil-Over Toyota Tacoma 16-23 4WD Fox 2.5 Performance Elite Shocks (2016-2023 Tacoma) - BDS836FPE
Up the ante in your 2016-2023 Toyota Tacoma truck with style and performance by installing this 2-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. Additionally, 1 inch front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axles within the correct operating angles.
In the rear, BDS supplies a set of add-a-leafs to provide 1 inchof lift to level out the truck and utilizes a complementary set of FOX 2.0 Performance shocks for an improved ride. Optional rear FOX 2.5 Dual Speed Compression Adjust reservoir shocks are available for maximum off road capabilities.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.
Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: Add-A-Leaf
- Shocks Included: Yes
- Front Lift Height: 2 inch
- Rear Lift Height: 2 inch
1. 285/75R16 with 4.5 inch back space will require trimming.
2. 285/70R17 with 4.5 inch back space will require trimming.
- FOX 2.5 Factory series coil-overs offer improved damper performance over stock
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series Internal Floating Piston rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100 percent Bolt on installation
Rear Shock Option
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Tire Size: 285 / 70 Wheel Diameter: 17 x 8 Back Spacing: 4.5

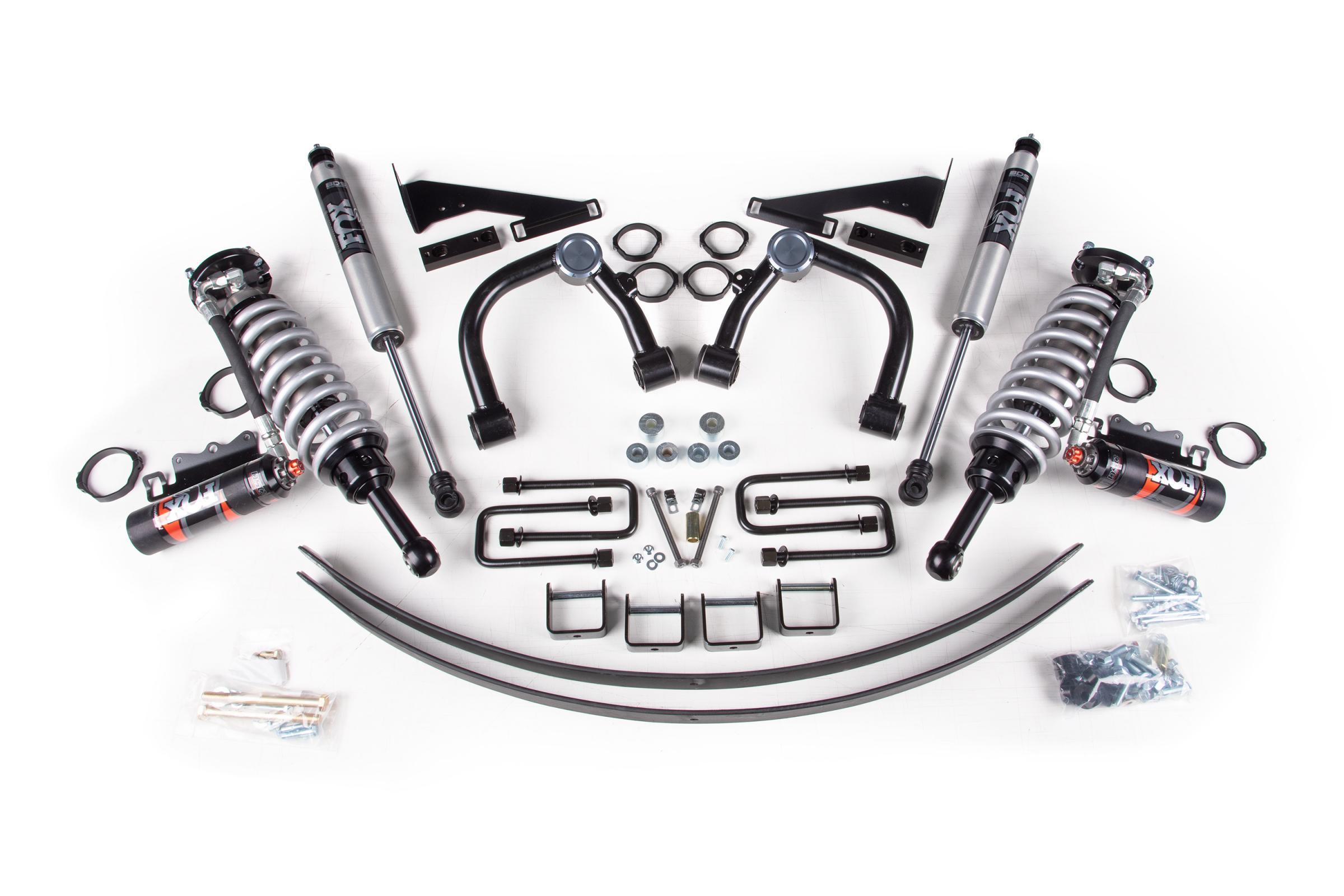

Kit Components:
- Includes one BDS018217, 2005-2023 Toyota Tacoma Add-A-Leaf Kit, UPC Code 658848614417
- Includes one BDS028301, 2005-2023 Toyota Tacoma 3 inch Coilover Front Box Kit, UPC Code 658848616145
- Includes one FOX88306178, Kit: 05-ON Toyota Tacoma, Front, Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2-3 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326112, Kit: 05-ON Toyota Tacoma, Rear, 2.5 Truck Fox Performance Elite Series, R/R, 0-1.5 inch Lift, Dual Speed Compression Adjust, UPC Code 711745592452
