Baja Designs Prinsu Roof Rack 7 XL Linkable Kit Baja Designs - 447745

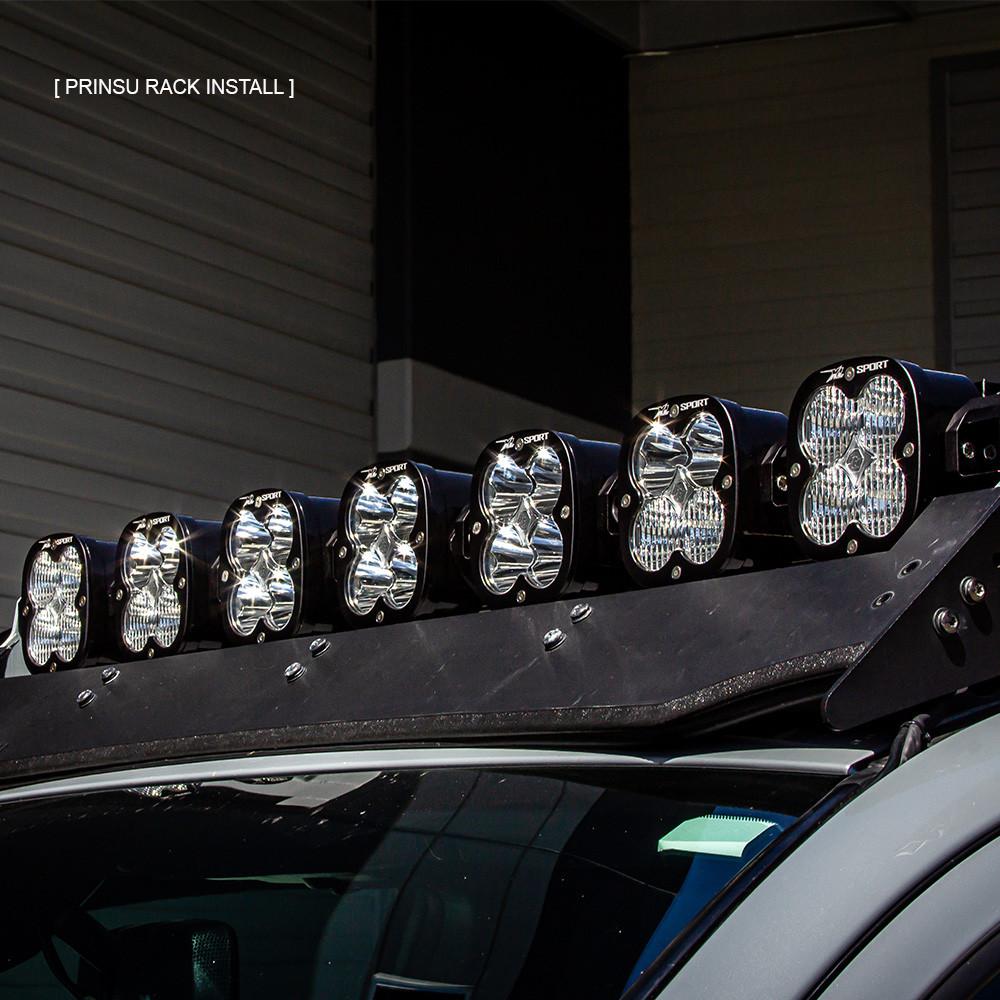

So you've got a Prinsu rack and you want to mount an LED light bar? We've got you covered! The Prinsu racks come with the option for a 40 inch light bar cutout, for users with this option we've created a turn key kit that includes everything you need to get a performance based lighting solution.
This kit utilizes our 7 Light XL Linkable kit that provides you with a crisp 22,050 lumens. In terms of hardware and accessories we include brackets that are proprietary to Prinsu's rack design, all required hardware, a relay harness for the XL Linkable, and Rock Guards.
This is an all inclusive kit that will compliment your Prinsu rack along with giving you some serious night time lighting performance.
Note: If you did not purchase a rack with the 40 inch Light Bar cutout option we have included instructions on how to cut your existing panel.
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 22,050 Utilizing 28 LEDs
- Wattage/Amps: 182W / 14A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Application:
Any Prinsu Rack
Includes:
- x3 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x7 XL Sport Rock Guards
- Pre-load Center Bracket
- Prinsu Specific Brackets (304 Stainless Steel)
- XL Linkable Harness
- Adjustability:
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction
