Baja Designs Polaris RZR XP1000 Squadron Pro A-Pillar Kit Baja Designs - 447821
Our engineers came up with a quick, sturdy, and low profile design to mount lights on the cage of your RZR 1000. You will be able to mount these with ease, and have a range of Baja Designs auxiliary lighting to choose from.
Baja Designs Features:
- Satisfactions Guarantee – 30 Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It.
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 4,600 Utilizing 4 LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)

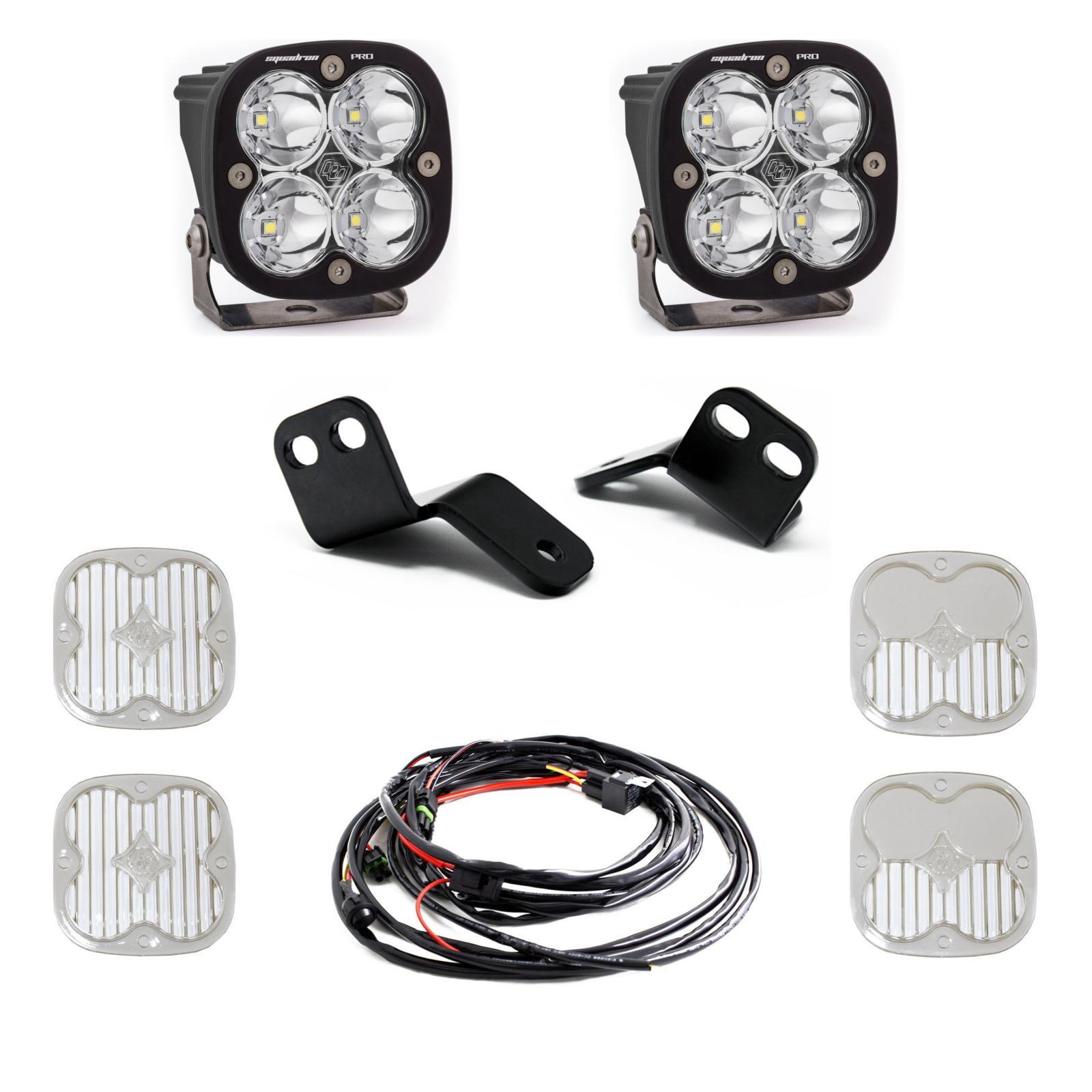

Includes
- x2 A-Pillar Brackets
- x2 Squadron Pro Spot LED
- x2 Squadron Wide Cornering Lens
- x2 Squadron Driving Combo Lens
- x1 Wiring harness With Toggle Switch
- Hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
