Baja Designs Ford Super Duty (11-16) S8 30 inch Grille Mount Kit Baja Designs - 447792
Set your Ford Super Duty apart from the rest with Baja Designs LED S8 Grille Kit. Our Ford Super Duty S8 Grille Kit has been specifically designed for 2011-2016 Ford Super Duty models giving you that clean OEM look allowing for easy installation of one 30 inch S8 LED Light Bar.
This mount kit also comes equipped with a Ford specific upfitter wiring harness which allows you to use factory switches.
Baja Designs Features:
- Satisfactions Guarantee -30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock- Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 19,050 Utilizing 24 Cree LEDs
- Wattage/Amps: 180W / 12A
- Dimensions: 30 inch x 3 inch x 1.6 inch
- Weight: 6.5 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
(S8 Patent D780,964)

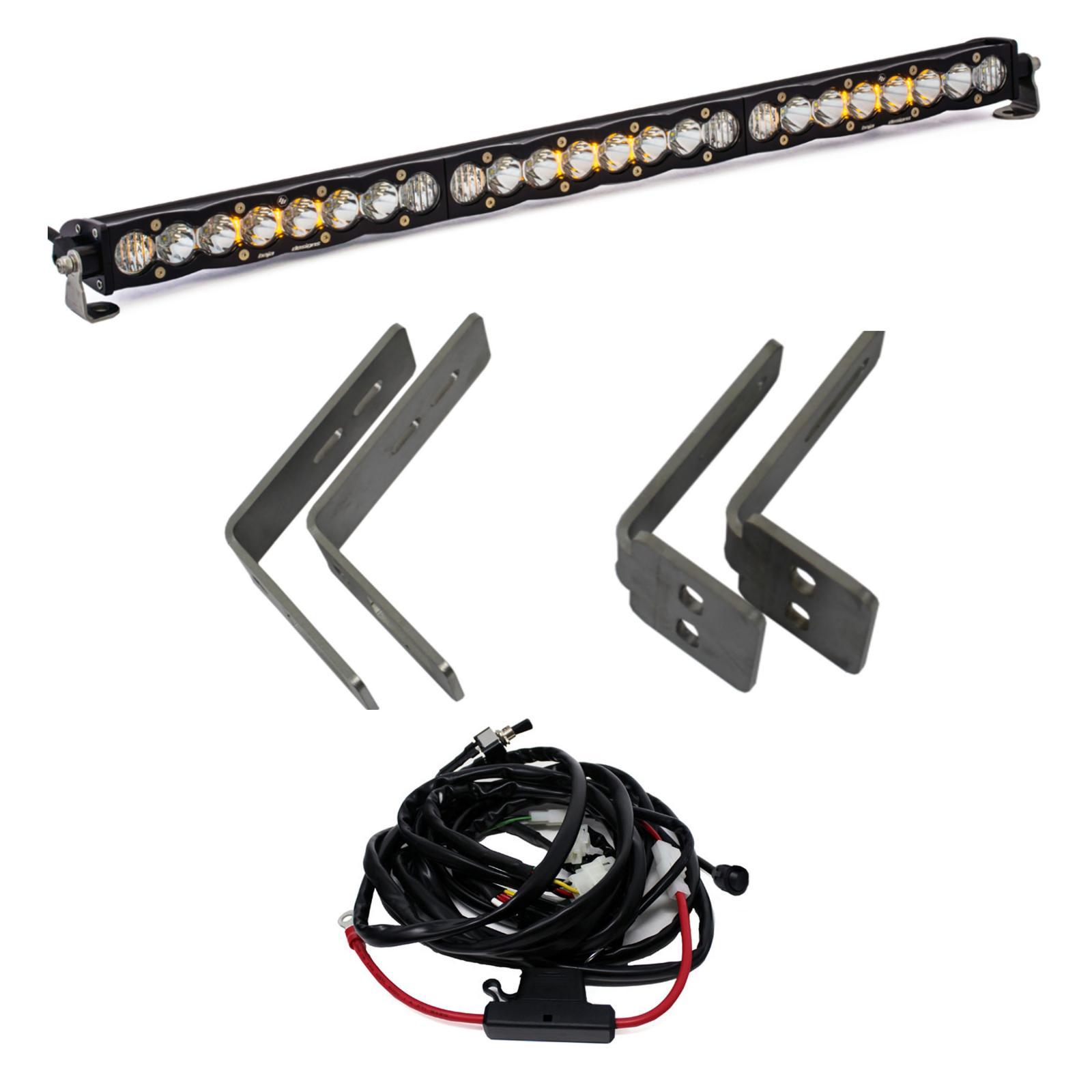

Includes:
- x2 2011-2016 Ford Super Duty Mounting Brackets
- x1 S8 30 inch LED Light Bar
- Ford Upfitter Wiring Harness
- Hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
