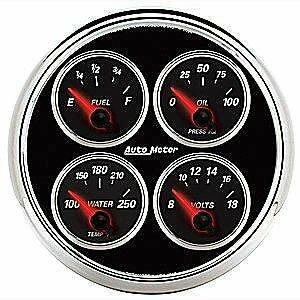

Auto Meter 5" QUAD GAUGE, 100 PSI/100-250 °F/8-18V/0-90 Ω, DESIGNER BLACK II - 1224
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).
Dial Color - Black
Lens Style - Domed, Clear
Bezel Color - Chrome
Bezel Style - Street Rod
Size (Standard) - 5"
Cup/Hole Size (Standard) - 4-5/8"
Outer Bezel Diameter - 4-15/16"
Lighting Type - LED
Lighting Color - White
Pointer Color - Fluorescent Red
Movement - Electric, Air-Core
Gauge Type - Quad Gauge
Range - 100 PSI/100-250 °F/8-18V/0ΩE-90ΩF
