Note: This is only the bumper with no winch

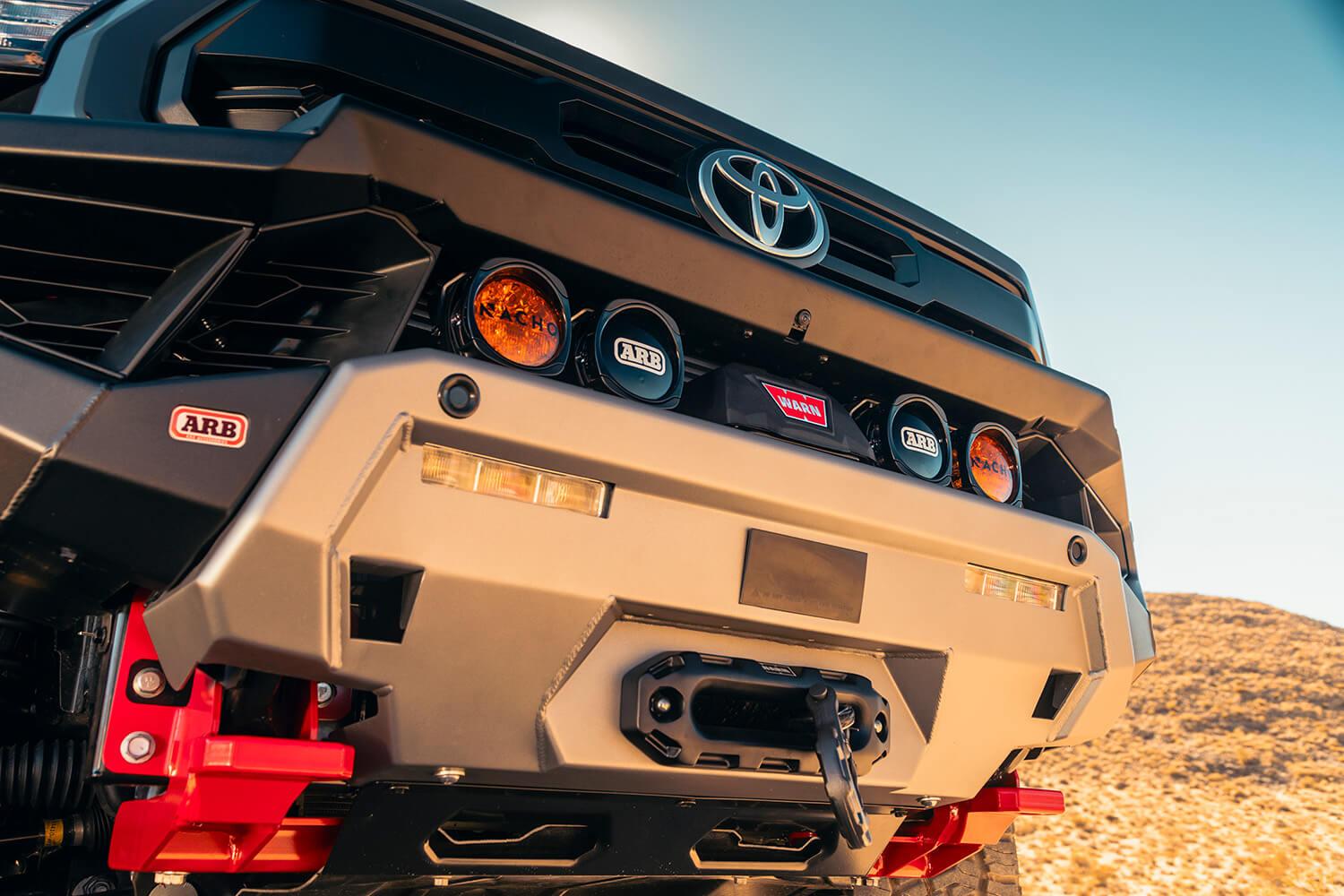

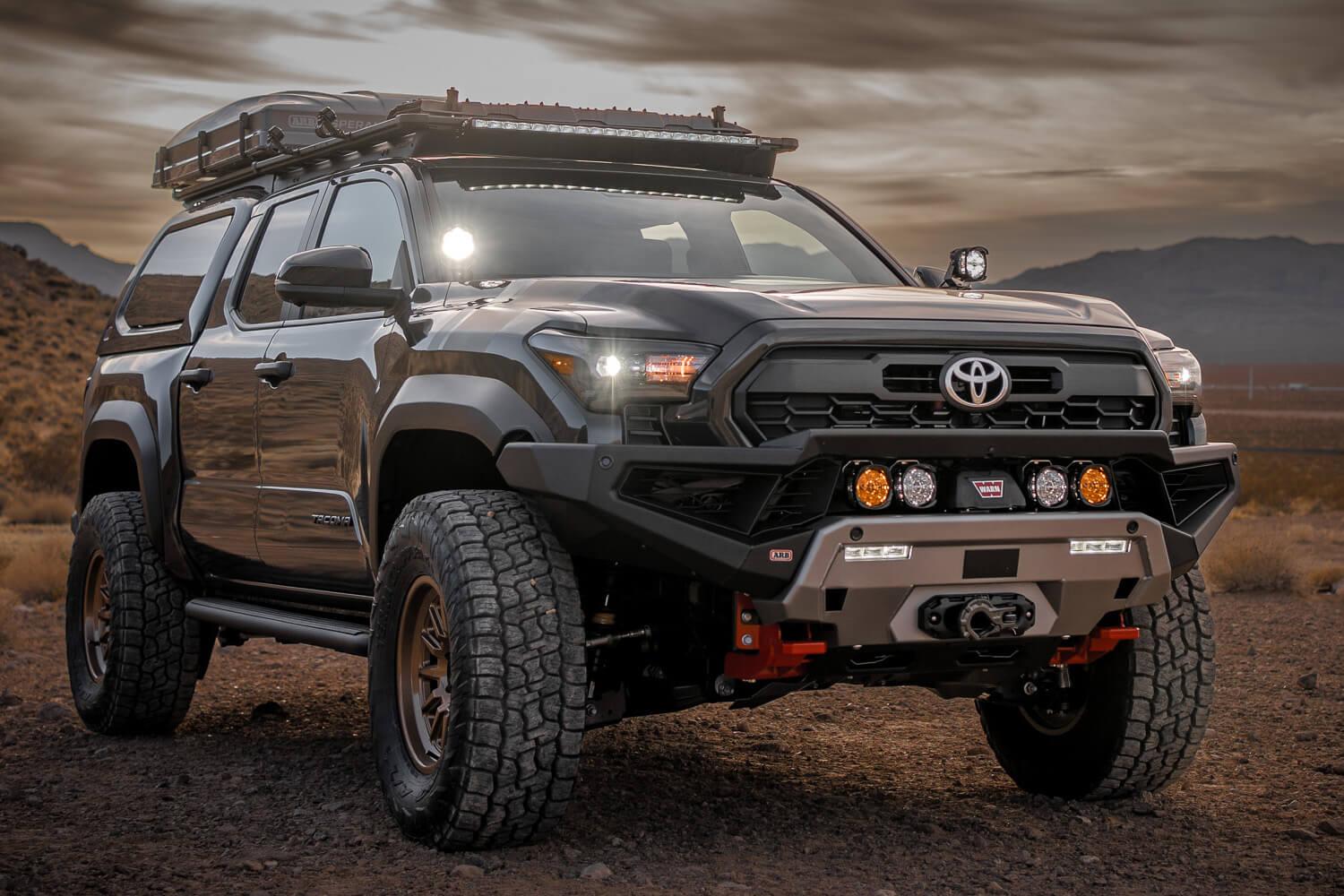

ARB Zenith Winch Bumper (2024-2025 Toyota Tacoma) - 3423210
Bridging functionality and style ARB’s Zenith Bumper turns heads whilst providing your vehicle with ARB’s industry-leading protection and performance. The Zenith is constructed from laser-cut and formed durable steel finished with ecoat meta prep and satin black powder coat for ultimate corrosion resistance. Extensive design work has been undertaken to maximize strength and aesthetics in this new low profile design bumper. Engineers have integrated twin 17 637lbs (8t) rated recovery points into the Zenith bar making it an complete solution. The forged recovery points are shaped and formed to protect soft shackles and prevent point load on steel bow shackles solving an common issue. The Zenith boasts integrated front bash plates which along with the wings and pans of the bumper to provide protection to vulnerable vehicle components. Functionally was top of mind when designing the Zenith ensuring powertrain performance is not affected with the design ensuring maximum air flow to critical cooling systems. OEM fog lamps are utilized via dual apertures and the radar has been relocated where required. Finally the integrated winch cradle is compatible with most low mount winches up to 12 000lbs.
Two 8T rated recovery points engineered and integrated into the bumper rated to 17 637lbs (8T) and finished in red powder coat
Development - To ensure we meet your expectations ARB invests heavily in research and development. Our design and engineering team utilizes the latest CAD CAM parametric modeling systems and finite element analysis packages and is supported by subcontract companies and universities for special projects like vibration strength and crash testing. With an air bag equipped vehicle for example it is essential that the vehicle?s crush rate and air bag triggering is not altered when a bull bar is installed. Our exhaustive testing programs ensure ARB bull bars meet these requirements. We also devote considerable time and resources toward to sourcing new products from around the world. IPF lights from Japan Warn winches from the US? we scan the globe in search of equipment that meets both the demands of our customers and our own stringent quality requirements. What?s more we?re also constantly on the lookout for new ways to improve our business practices from distribution to customer service. ARB is a Quality Endorsed Company and wherever we can we endeavor to ?raise the bar?.
Bash plates included with one heavy forged center piece and additional side bash plates for added protection on rugged terrain
Compatible with OE fog lights (on applicable models)
Slimline design profile with minimal front overhang
Built-in winch cradle the Zenith bumper is compatible with most low mount winches up to 12 000lbs
Compatible with factory Radar ADAS Parking Sensors and Airbag systems
Made from durable laser cut and formed 3mm steel for maximum strength-to-weight ratio the Zenith is meta prep primed and powder coated in an satin finish for corrosion resistance
A removable center grille allows for the install of up to seven 4in pod lights or lightbars up to 30in
Twin recessed recovery jack points on the front of the bumper to ensure safe and secure locations to perform an recovery. Compatible with ARB Jack and traditional farm jacks.
History - The origins of ARB can be traced back to Australia?s remote Top End
circa 1975. A region of vast distances and rugged terrain
it was fast becoming a Mecca for the nation?s burgeoning 4WD community. However
the very environment that attracted 4 wheelers also wreaked havoc on their equipment ? when driving in extreme conditions
only the best 4?4 accessories will do. This was the conclusion drawn by Tony Brown during his travels at the time. While exploring the treasures of the Top End
the skills Tony gained from working on his Land Rover were regularly called on to mend damaged bull bars and broken roof racks. Bar work back then was crude
not at all suited to overland touring
and through this experience an idea was born ? high quality equipment that met the vigorous demands of 4WD owners. Upon returning to Melbourne
Tony put theory into practice via the family garage
where he sought to address the product deficiencies he?d encountered. His vision called for a combination of sound design principles and reliable raw materials? a simple solution to an endemic problem. The concept was embraced when it hit the fledgling 4?4 market
and ARB ? the initials of Anthony Ronald Brown ? was founded. Today
ARB is Australia?s largest manufacturer and distributor of 4?4 accessories. We also have an international presence
with an office in the US and an export network that extends through more than 80 countries around the globe. Our philosophy
however
has never wavered from its original course ? quality
reliability and practicality above all else.
