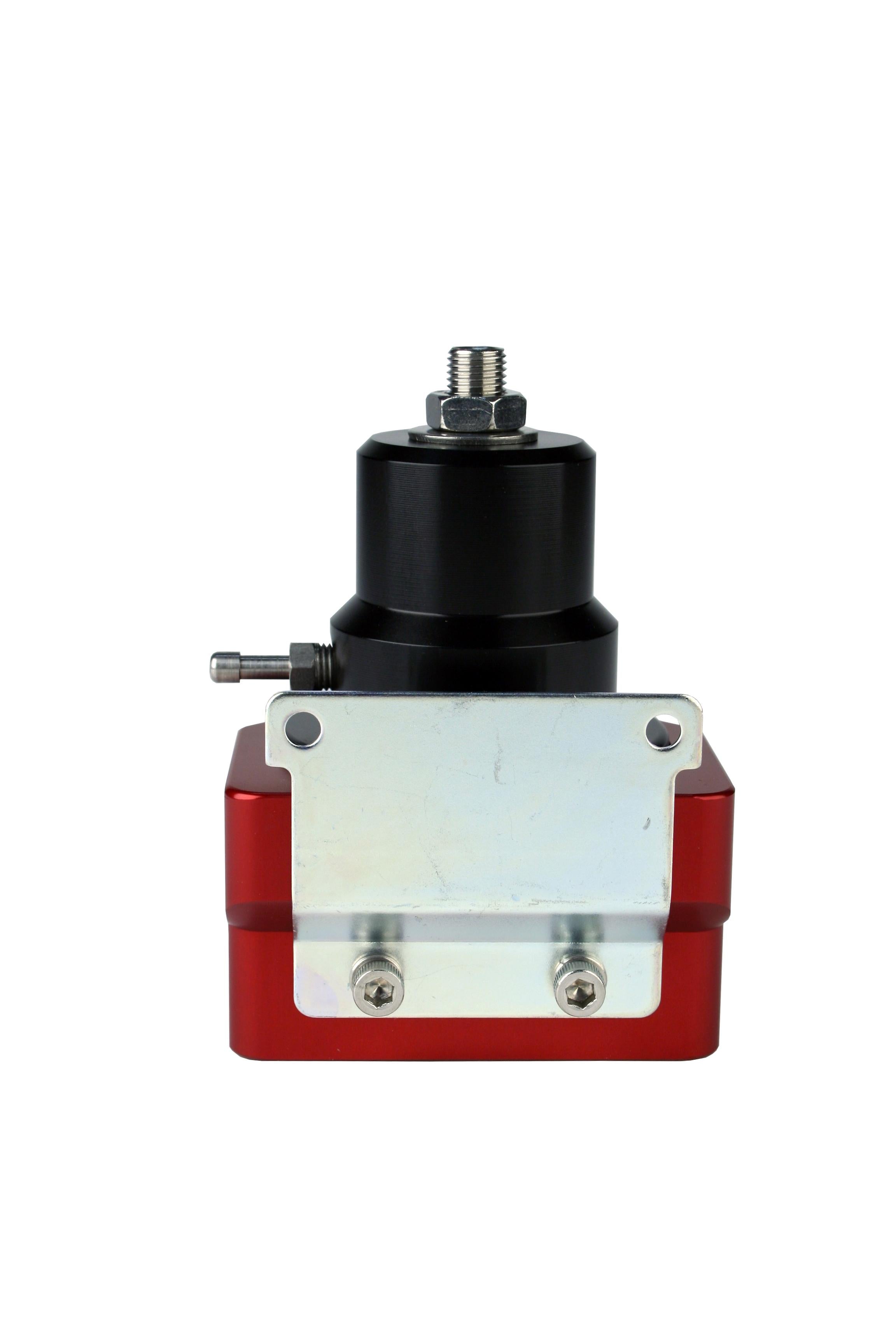

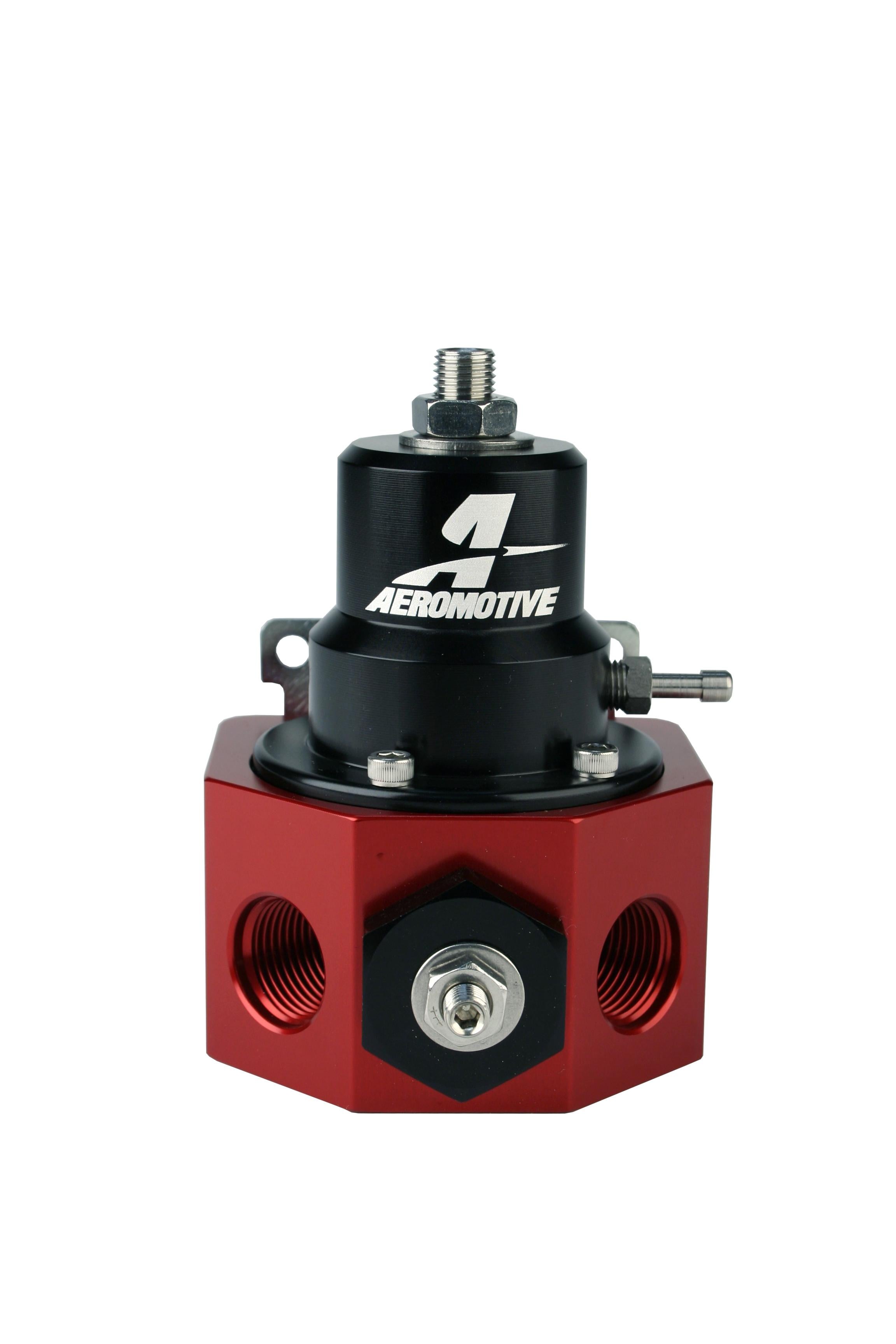

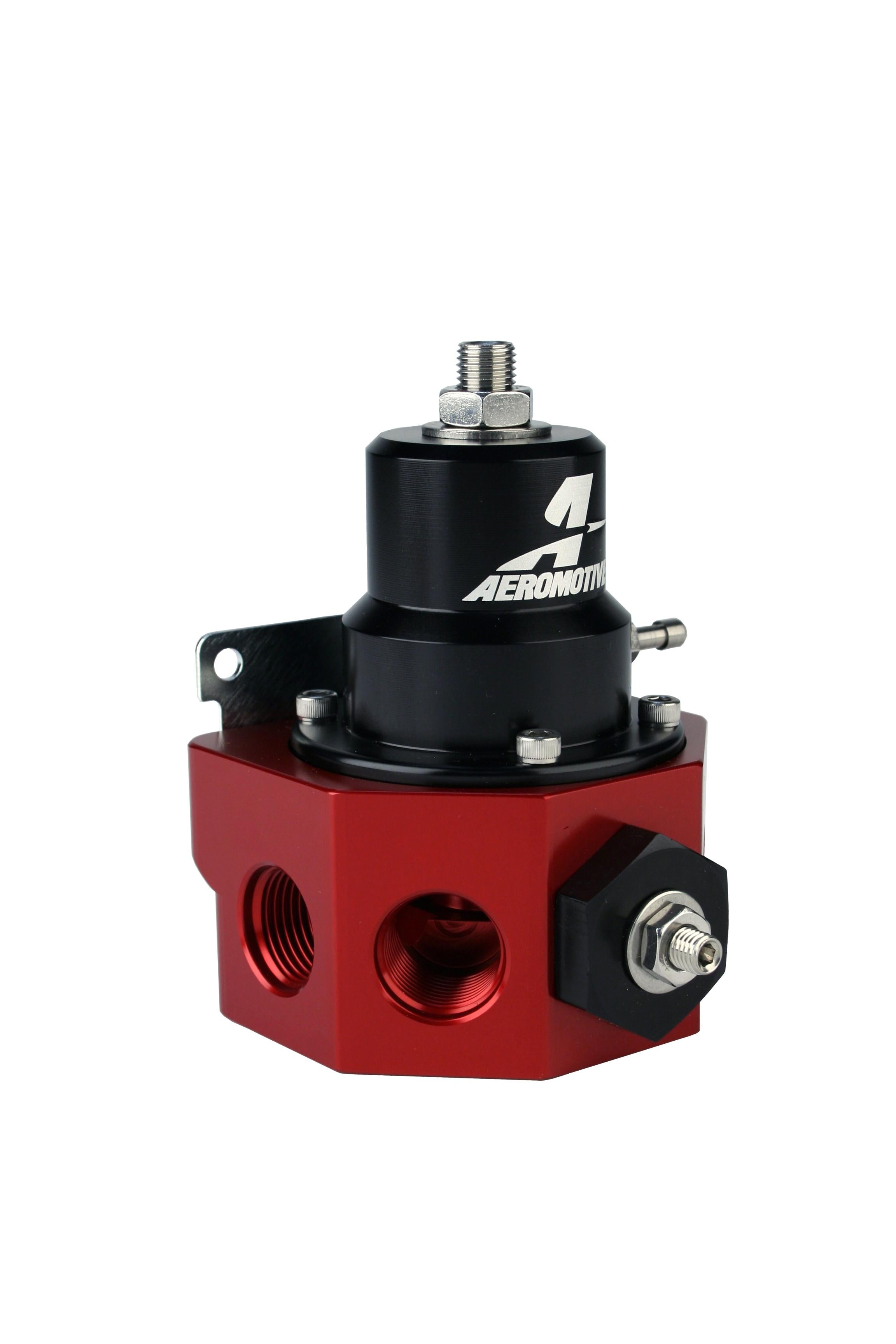

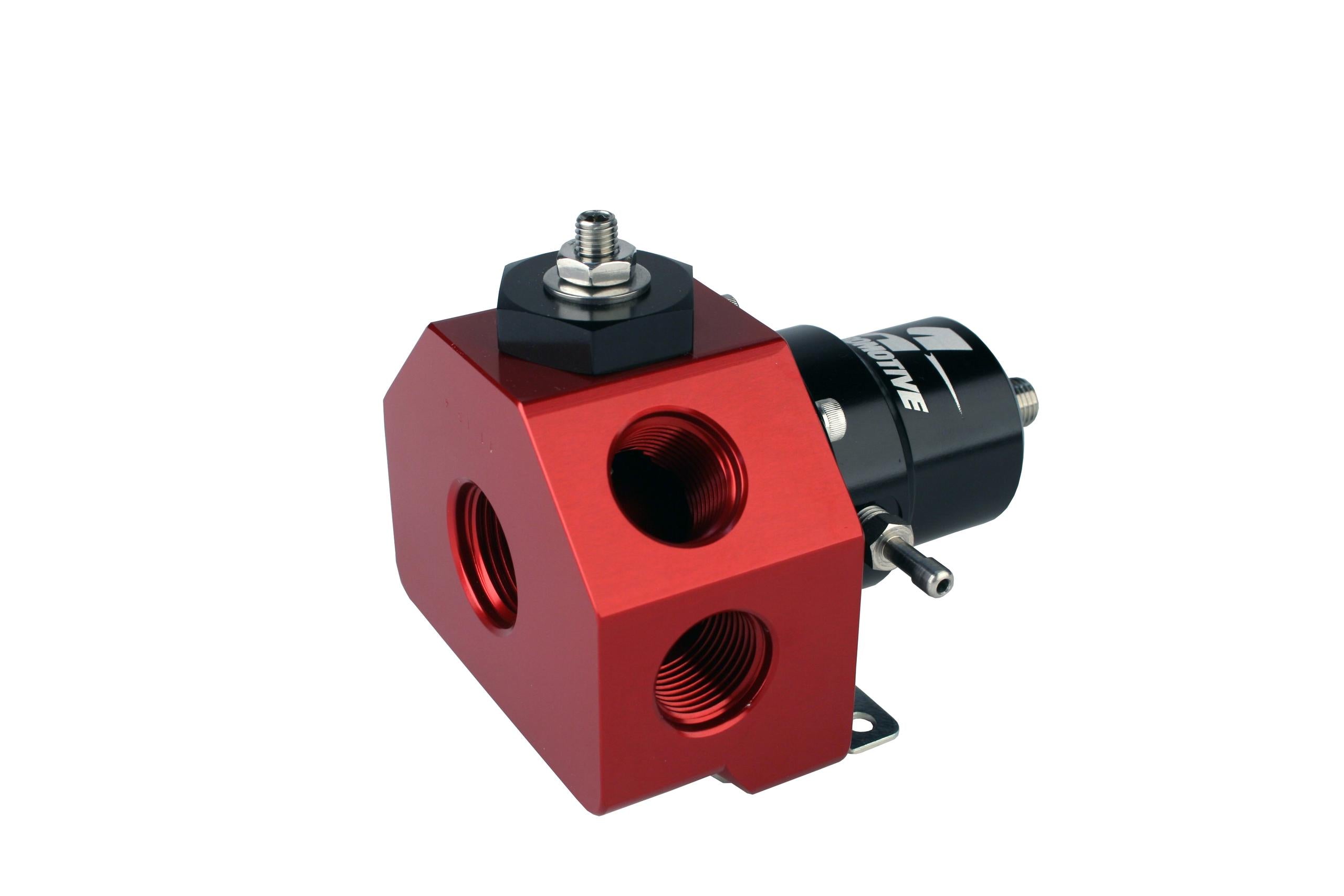

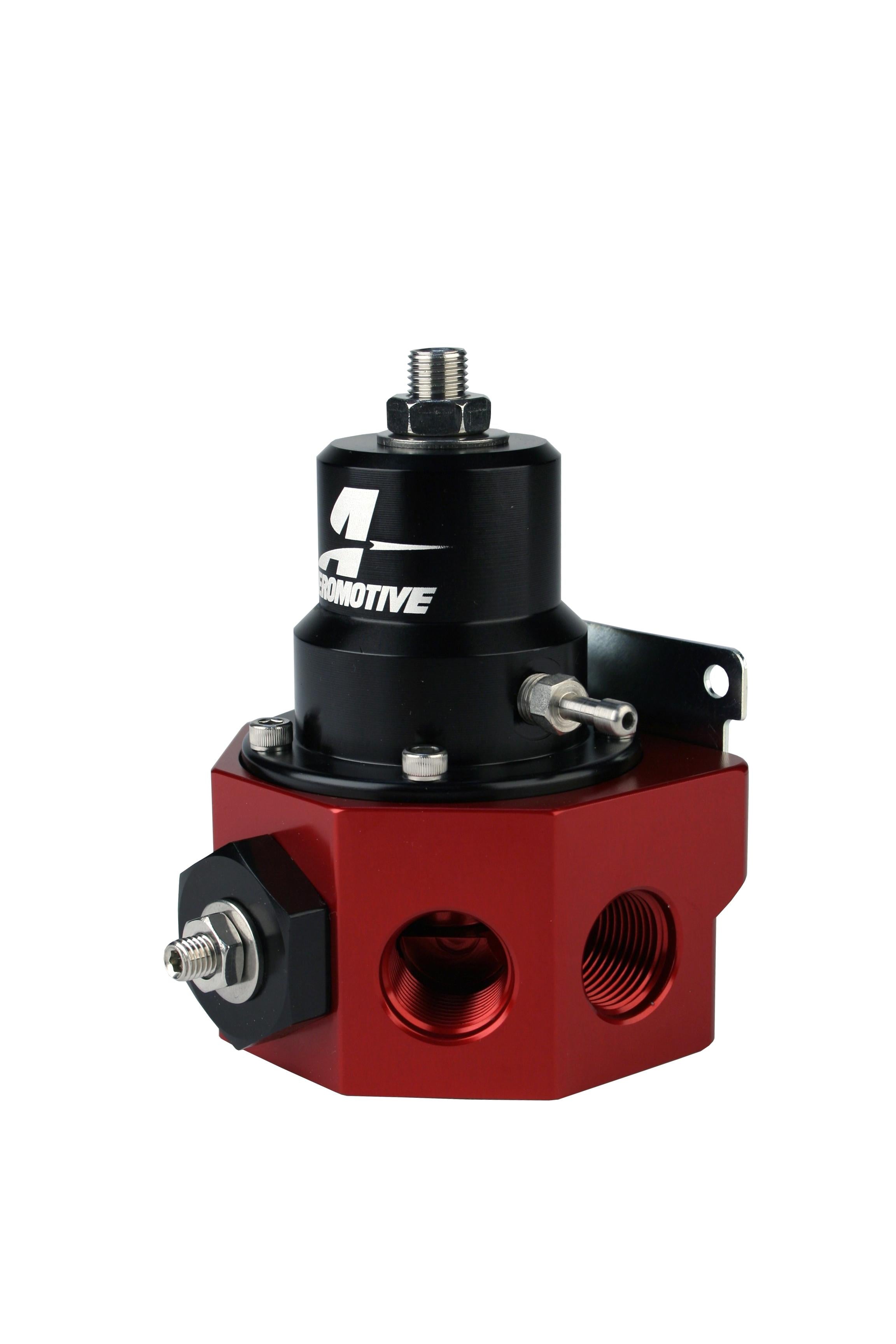

Aeromotive Double-Adjustable Bypass Regulator - 13209
Double Adjustable Carbureted Regulator for Belt Drive Fuel Pump
Revolutionary design provides two independent pressure adjustments; one adjustment for idle and one for wide open throttle. Engineered for use with variable volume pumps tied to engine RPM. This regulator creates the smoothest and most repeatable fuel curve from idle to wide open throttle of any bypass system. ORB-10 return port. P/N 13209 provides (1) ORB-08 inlet and (3) ORB-08 outlet ports. Can be configured for single or dual carbureted engines and provides superior pressure control and flow when installed before the carburetor or after a fuel log. Also available with a single inlet port for fuel logs. (P/N 13214) ? provides ORB-10 inlet and return ports.
List Info
PRODUCT NOTES:
Outlet Port Diameter - 0.5
Port Quantity - 4
Prop 65 - Long Label - WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
Lethal Performance is proud to offer the entire line of AEROMOTIVE products!
