P/N 17348 10-17 Mustang GT Stealth EFI Fuel System.
For Late Model GT’s with original Coyote 4-V 5.0L.
Rated for EFI engines producing up to 1,400 Flywheel HP Forced Induction or 1,900 Flywheel HP Naturally Aspirated on gas.
For 2010-2017 Mustang GT Chassis with original 5.0L 4-V Coyote engine and/or equivalent intake.
Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty racing applications.

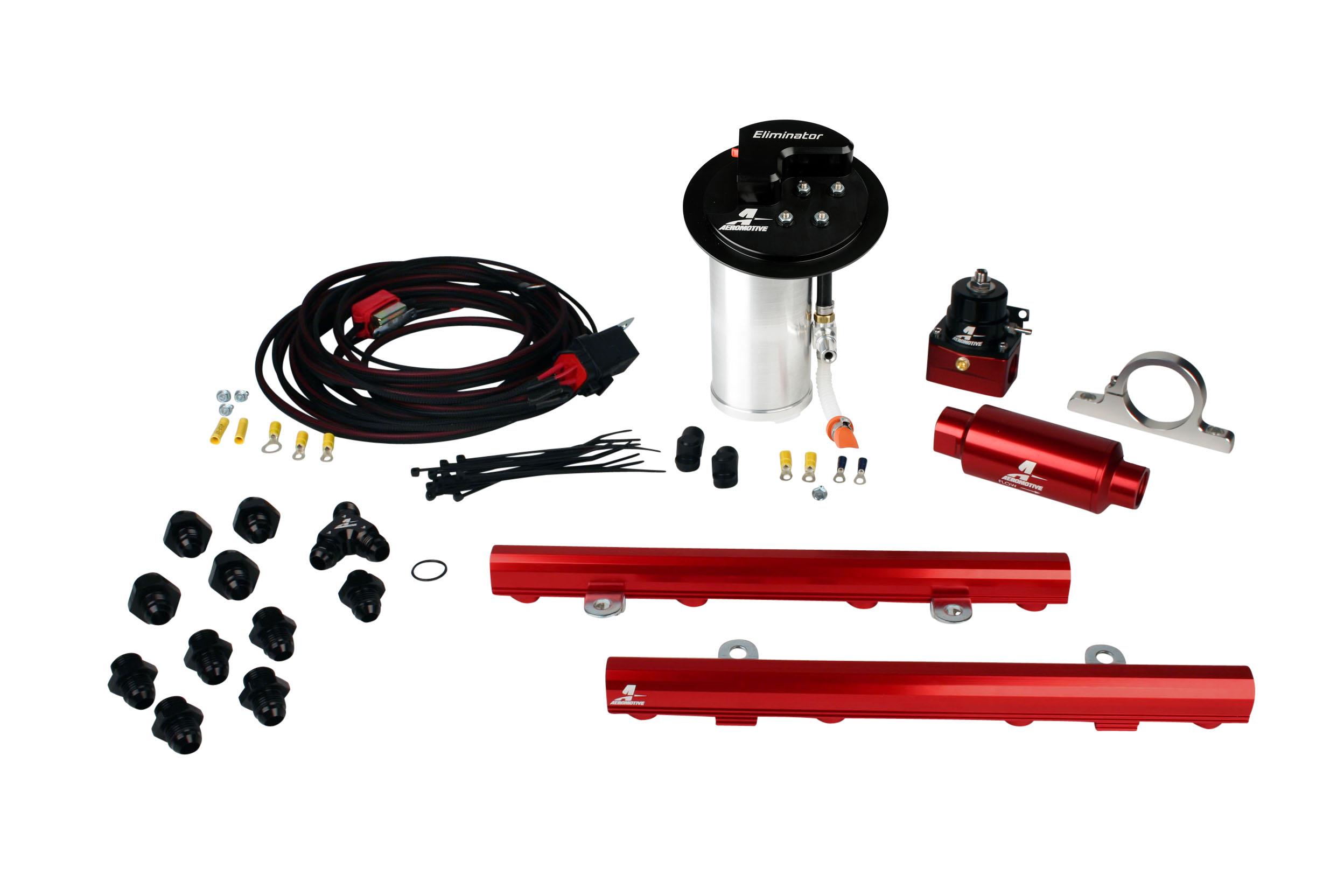

DescriptionThis Mustang Stealth Fuel System includes the Aeromotive Stealth Eliminator fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving. Fuel Lines and Hose-Ends sold separately.This system contains the following parts:
1ea p/n 14130 Fuel Rails
1ea p/n 13134 Fuel Pressure Regulator
1ea p/n 18695 Fuel Pump Assembly
1ea p/n 16307 Fuel Pump Wiring Kit
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
5ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
