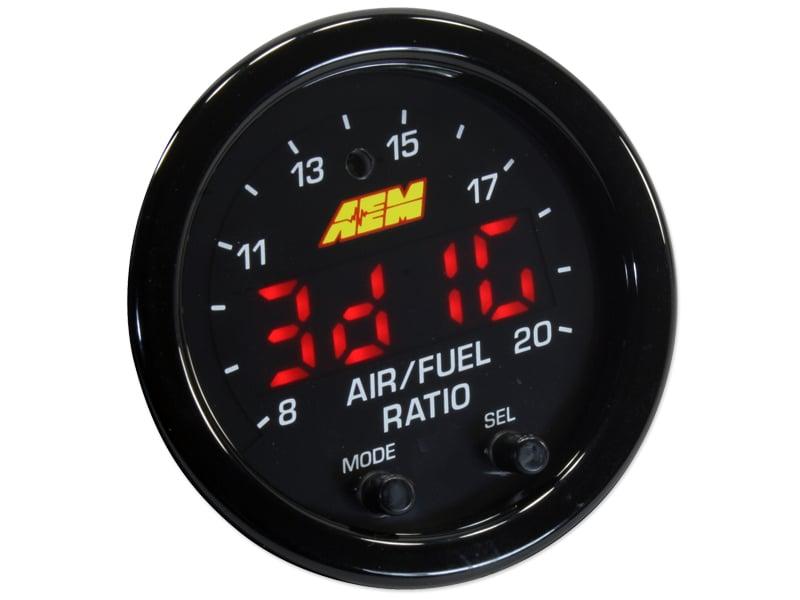

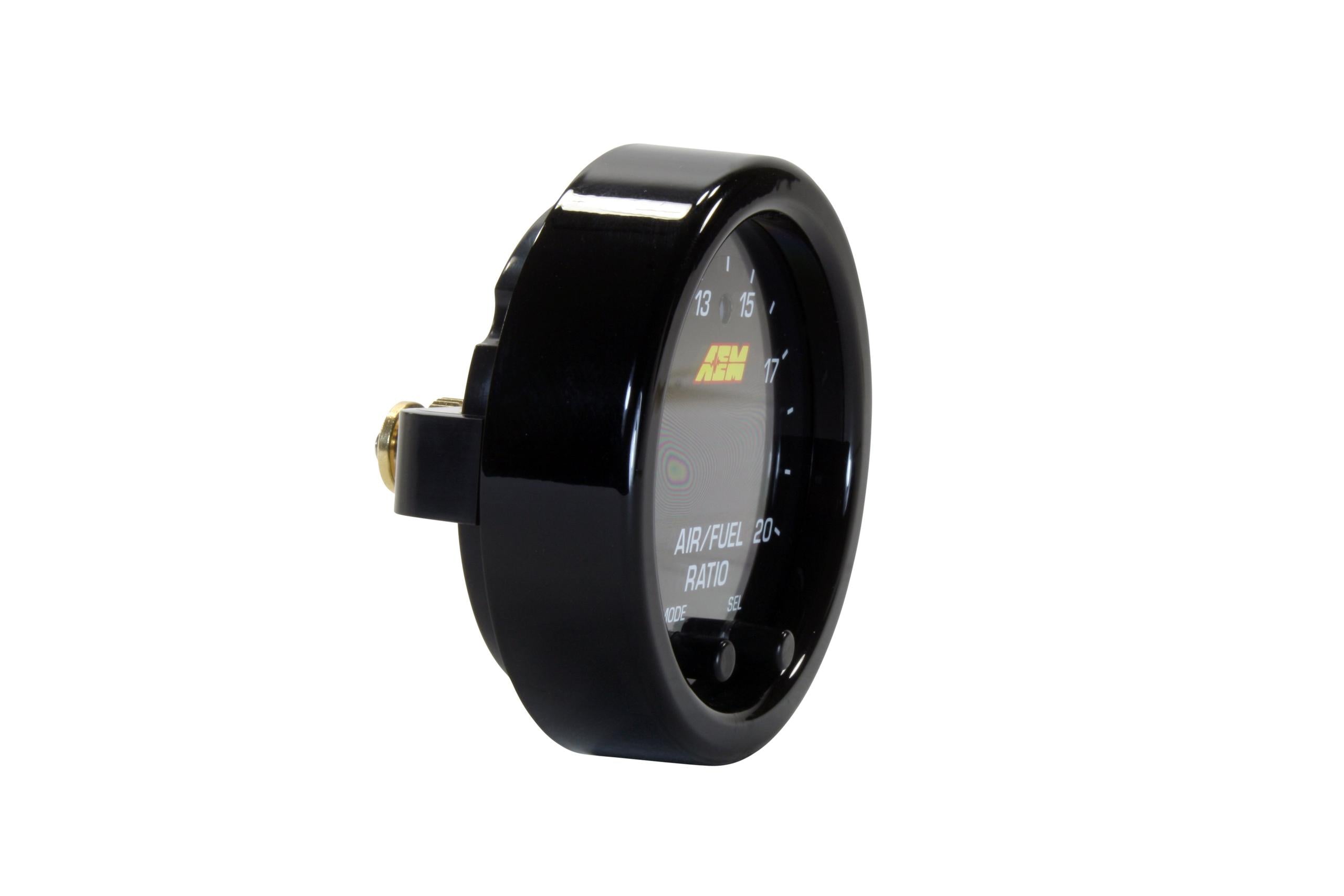

AEM X-Series AFR Gauge - 30-0300
AEM Electronics X-Series Wideband UEGO Air/Fuel Sensor Controller Gauges
For fast response times, AEM X-Series wideband UEGO air/fuel sensor
controller gauges are a great option! Built on the unique, patent-pending
X-Digital technology, they report accurate information quickly— enabling
you to tune your engine more efficiently. These gauges have modern,
visually striking faceplates with 7-segment center displays that are 87
percent larger. They're ultra-slim and come with black bezels and black
dual-faced faceplates for air/fuel and Lambda. The displays are
user-configurable and feature auto-dimming.
Additional features:
* Bosch 4.9LSU wideband UEGO sensor
* Factory-calibrated resistor does not require free-air calibration—but
technology allows for free-air calibration as sensor ages, if user desires
* Compatible with vehicle/system voltages up to 16 V
* 0-5 V and RS232 output for data-logging and feedback control
* AEMnet (CANbus) for data-logging and daisy-chaining multiple controllers
up to 16 cylinders
* Can display AFR values in hundredths of a percent

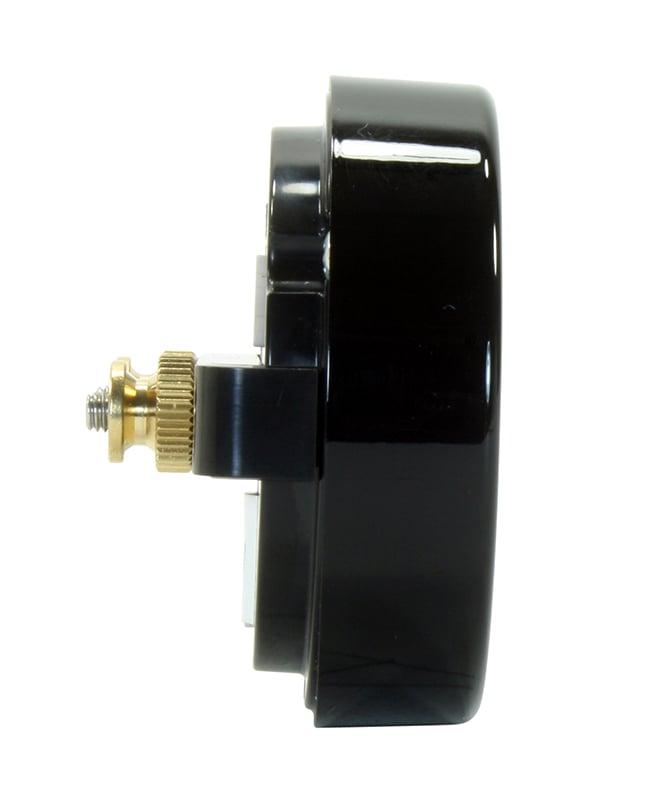

* 52mm gauge diameter and slim 0.825 in. gauge depth
* Gauge cup depth only .200 in. deep
* Locking connectors
