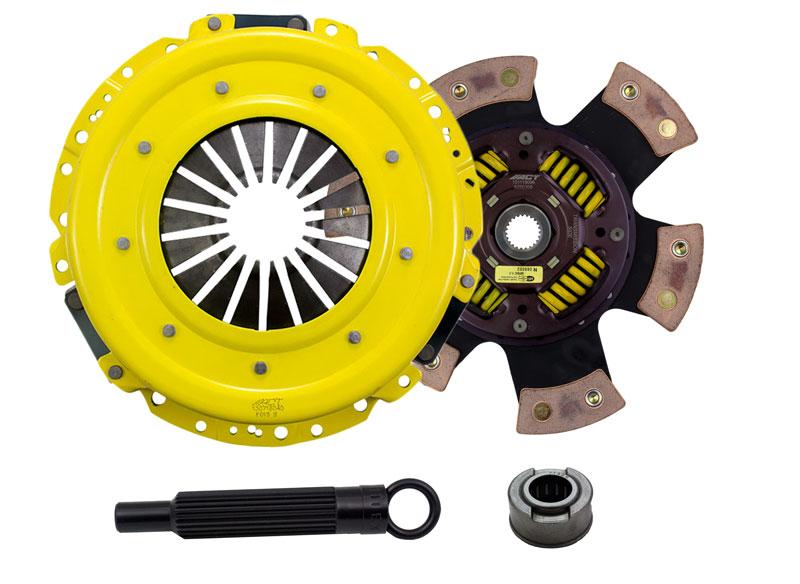

FM13-SPG6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Note: Must use conversion dowels included with pressure plate if installing clutch kit on OE flywheel.
Features & Benefits
• Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle
• Moderate friction life, extended by ACT's exclusive diaphragm design
• Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended for high horsepower street or race use
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications
Product Weight: 29.4 Ibs.
Input Shaft Diameter: 1"
Spline Count: 23
Disc Type: Sprung Race Disc
Disc Material: Ceramic
Disc Diameter: 11", 280mm
Pressure Plate Type: Sport
Torque Capacity Over OE: 85%
Torque Capacity: 770 ft/Ibs.
Alignment Tool Included: AT111EX
Pilot Bushing Included: PB1019
Applications
• Ford Mustang (2011-2017) - Boss 302/GT/GT 50 Years Limited Edition/GT Premium, 5.0 V8 Gas
• Ford Mustang (2017) - GT/GT Premium, 5.0 V8 Gas
• Ford Mustang (2017) - GT/GT Premium/V8, 5.0 V8 Gas
