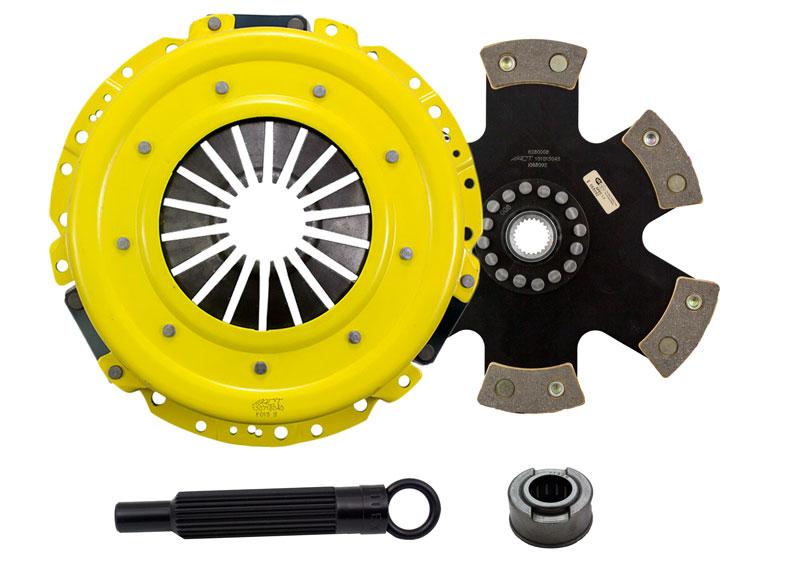

FM13-SPR6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Note: Must use conversion dowels included with pressure plate if installing clutch kit on OE flywheel.
Features & Benefits
• Light to moderate pedal effort, aggressive engagement, increased gear rattle
• Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
• Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended for race use only
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications
Product Weight: 27 Ibs.
Input Shaft Diameter: 1"
Spline Count: 23
Disc Type: Rigid Race Disc
Disc Material: Ceramic
Disc Diameter: 11", 280mm
Disc Material: Ceramic
Pressure Plate Type: Sport
Torque Capacity Over OE: 55%
Torque Capacity: 645 ft/Ibs.
Alignment Tool Included: AT111EX
Pilot Bushing Included: PB1019
Applications
• Ford Mustang (2011-2017) - Boss 302/GT/GT 50 Years Limited Edition/GT Premium, 5.0 V8 Gas
• Ford Mustang (2017) - GT/GT Premium, 5.0 V8 Gas
• Ford Mustang (2017) - GT/GT Premium/V8, 5.0 V8 Gas
